FEATURES

  • VAN SPECS

    • VEHICLE AGE 2024

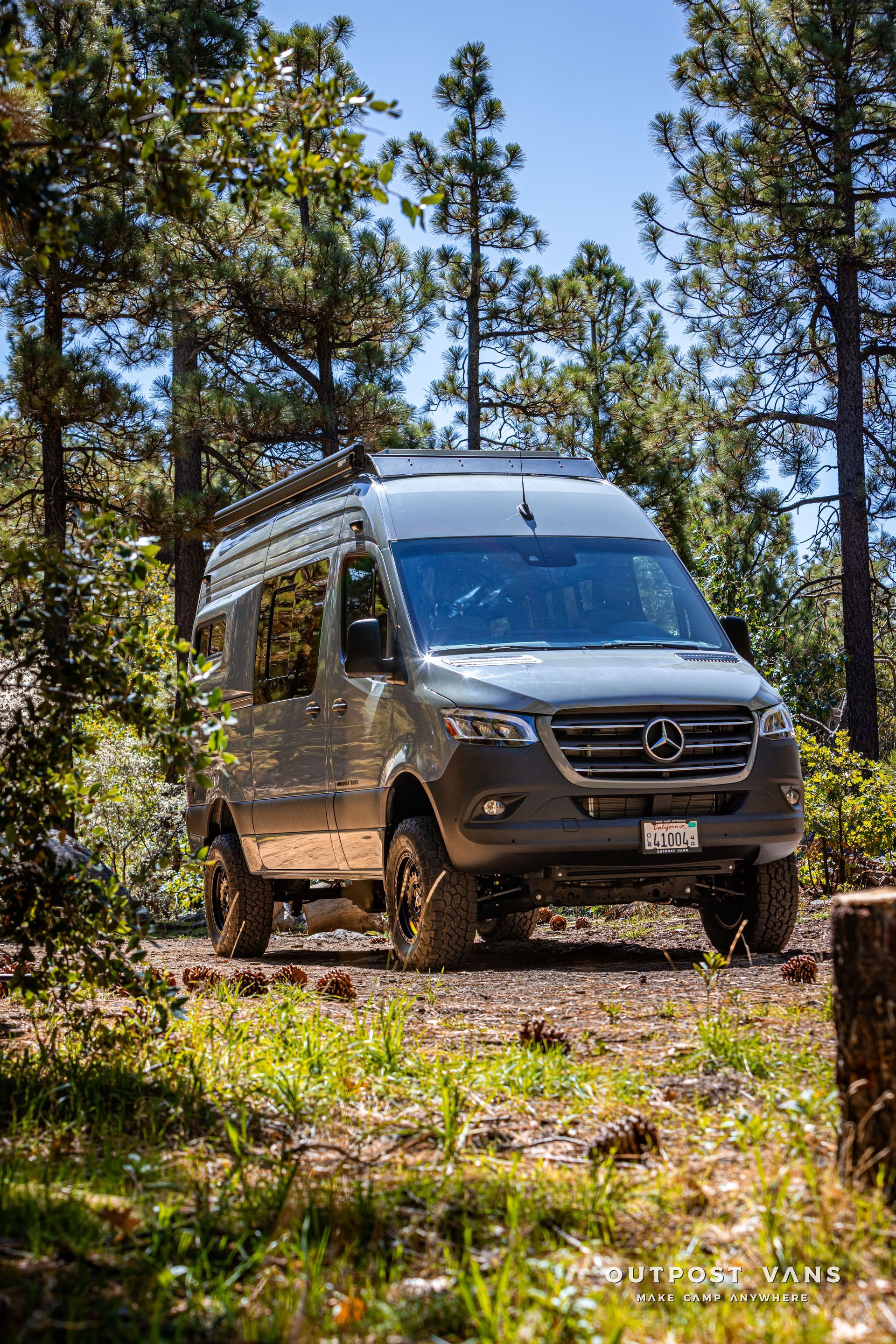

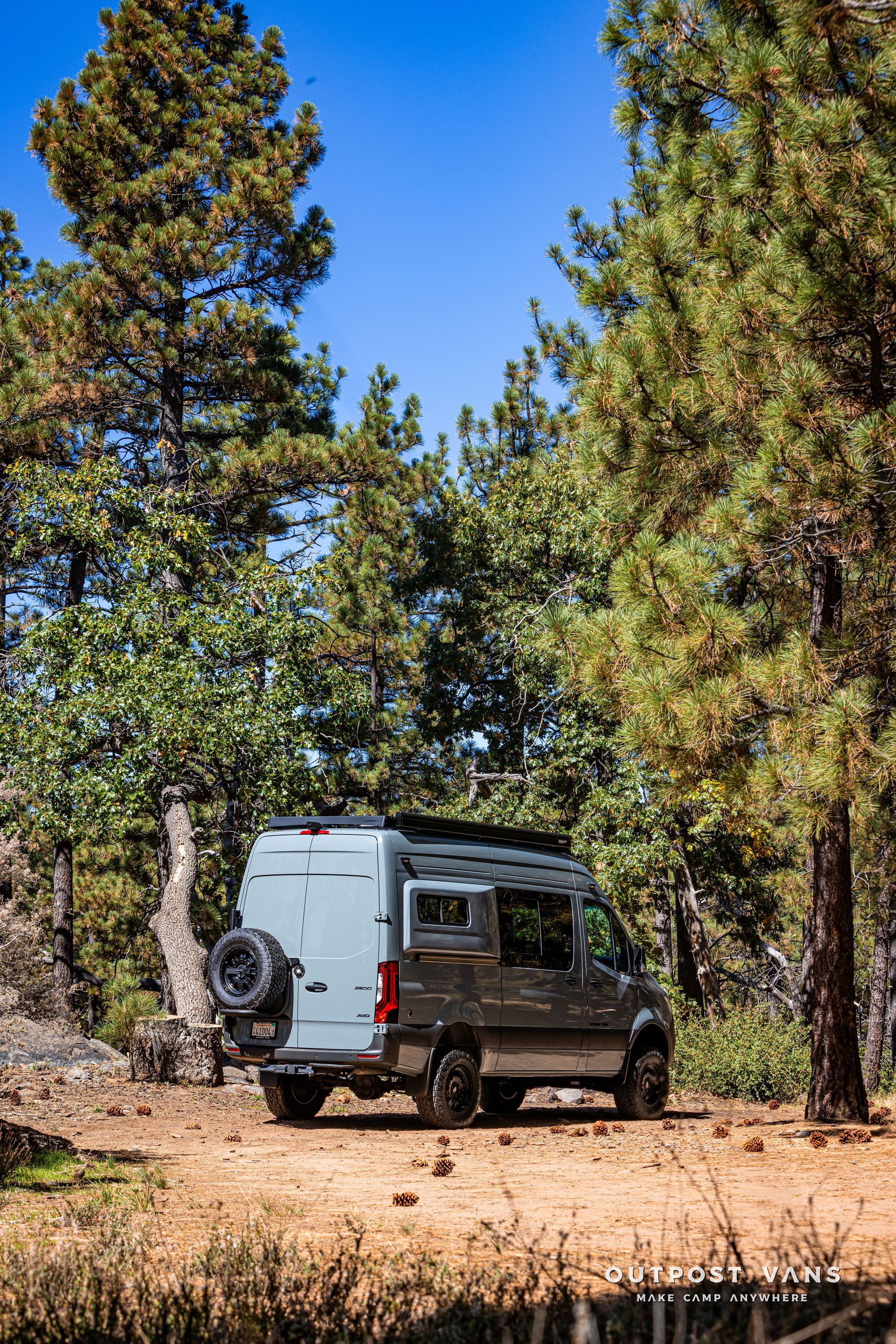

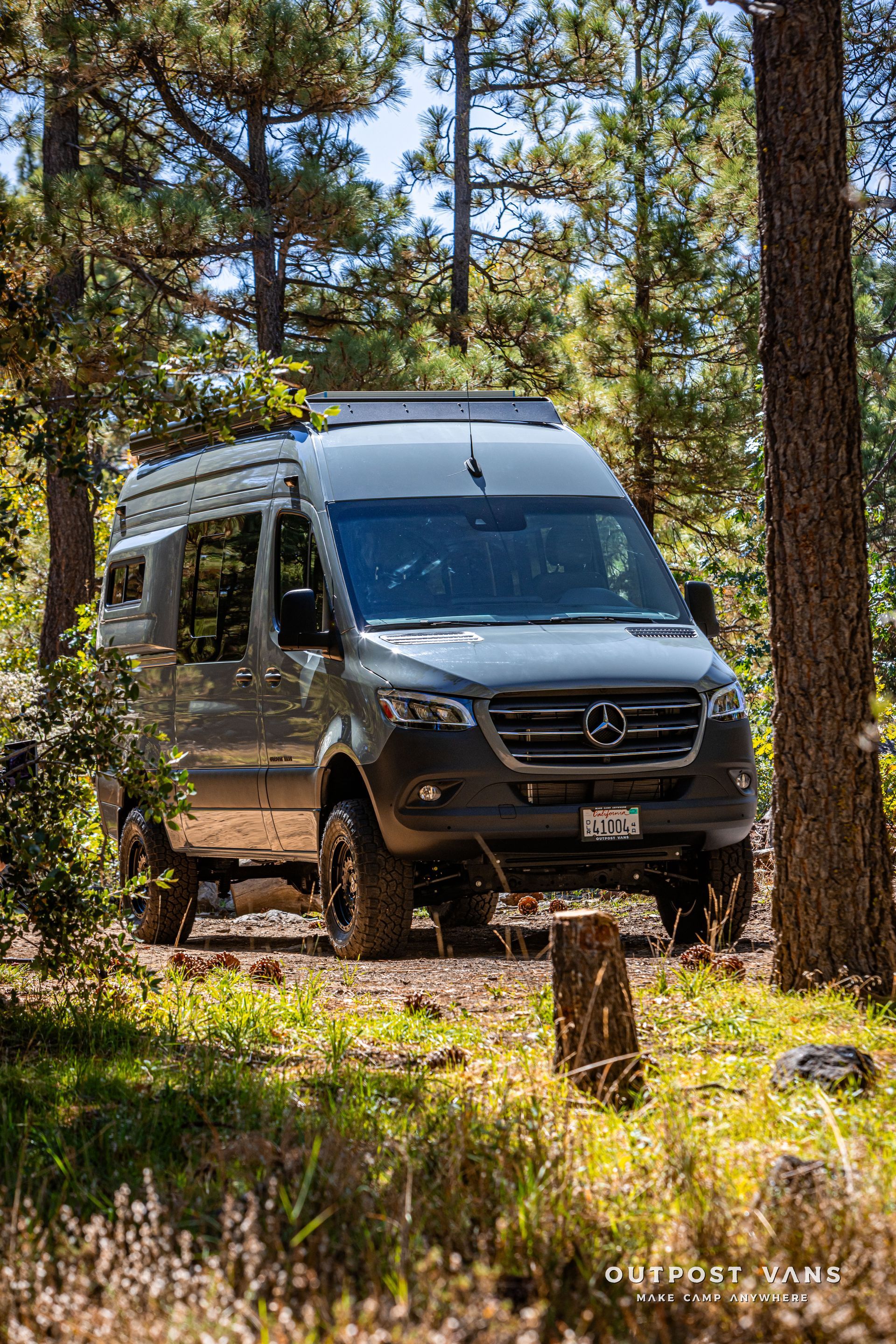

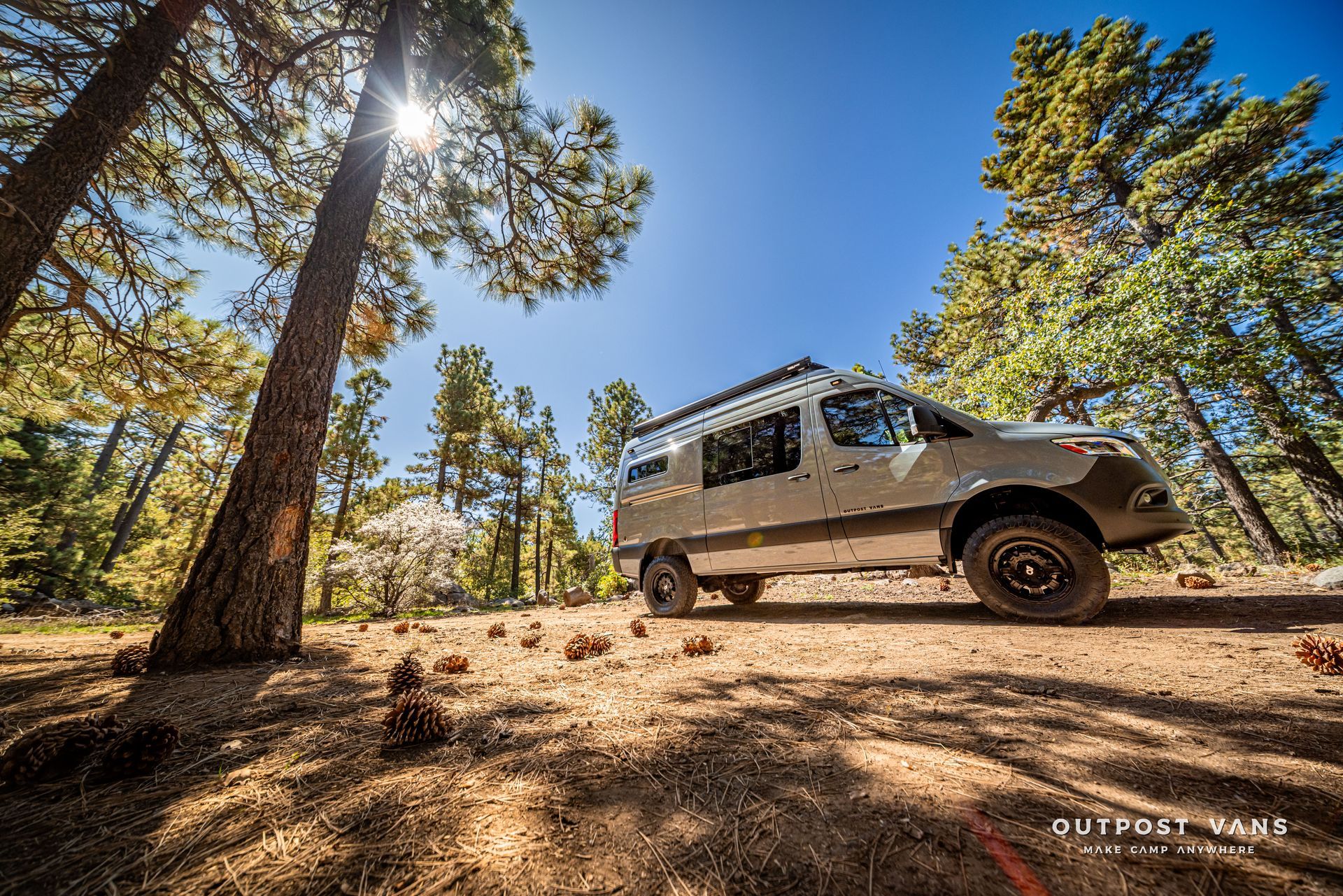

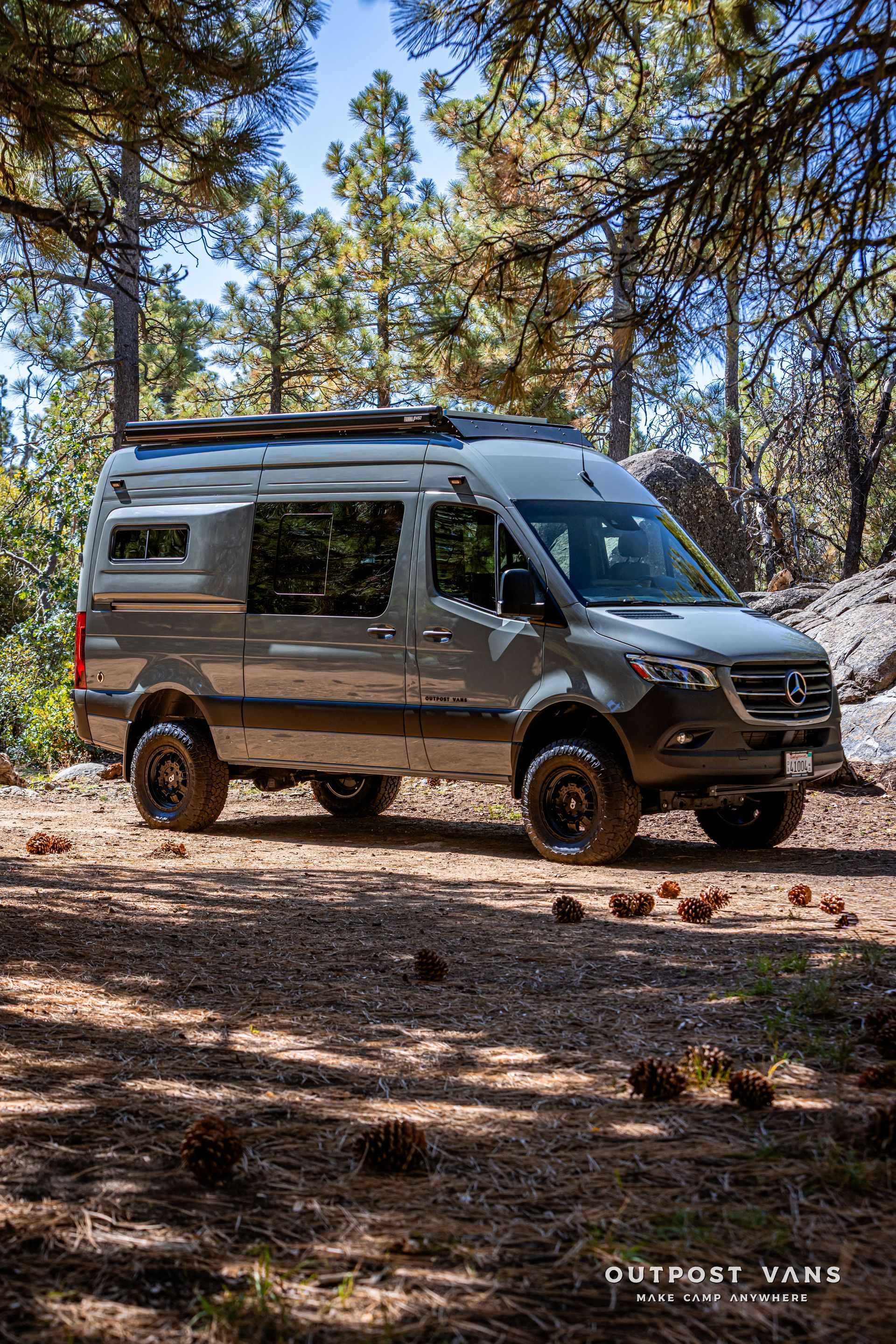

    • MERCEDES-BENZ SPRINTER 144 AWD

  • EXTERIOR

    • BACKWOODS FLATPACK ROOF RACK
    • FIAMMA F45S AWNING (MANUAL)

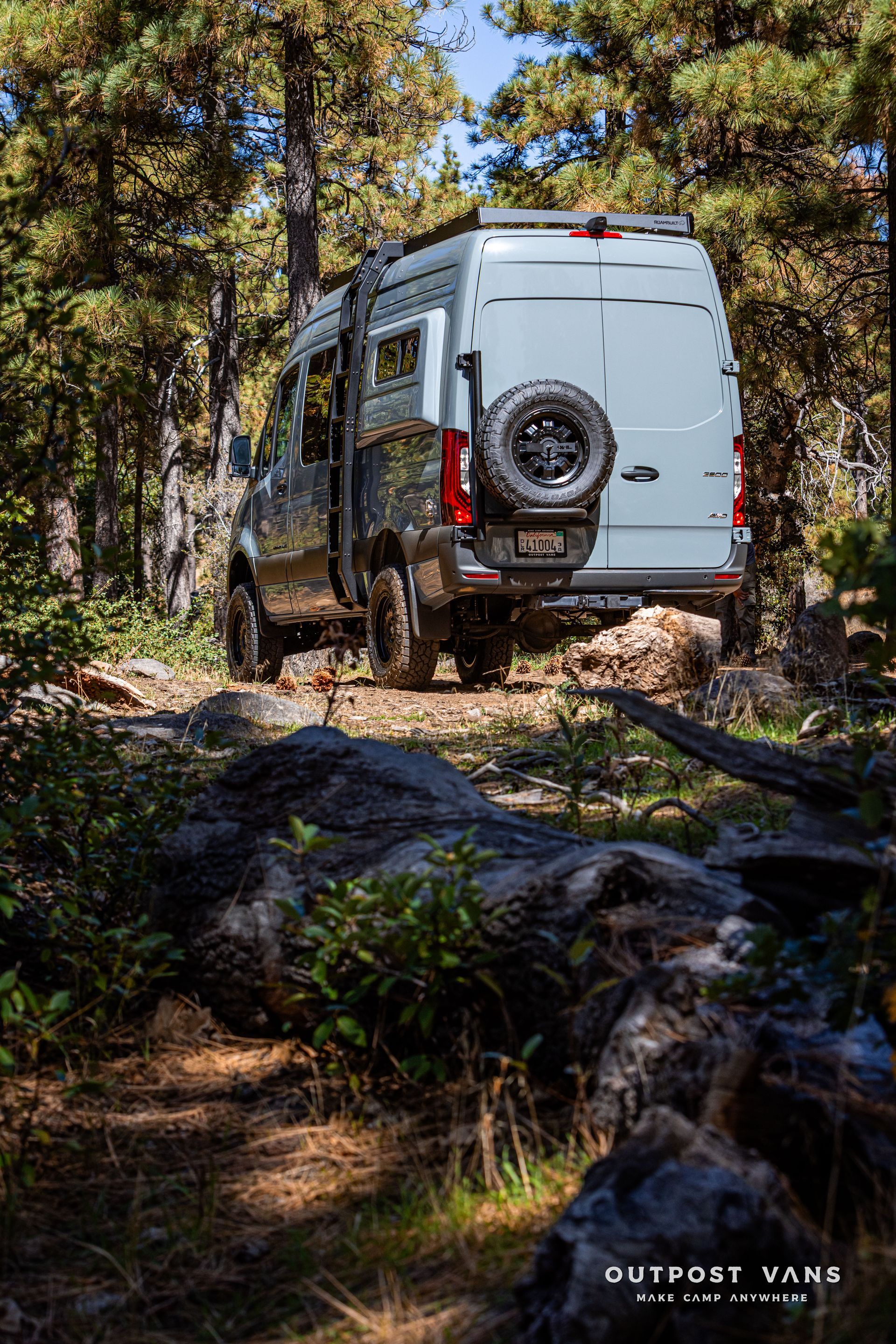

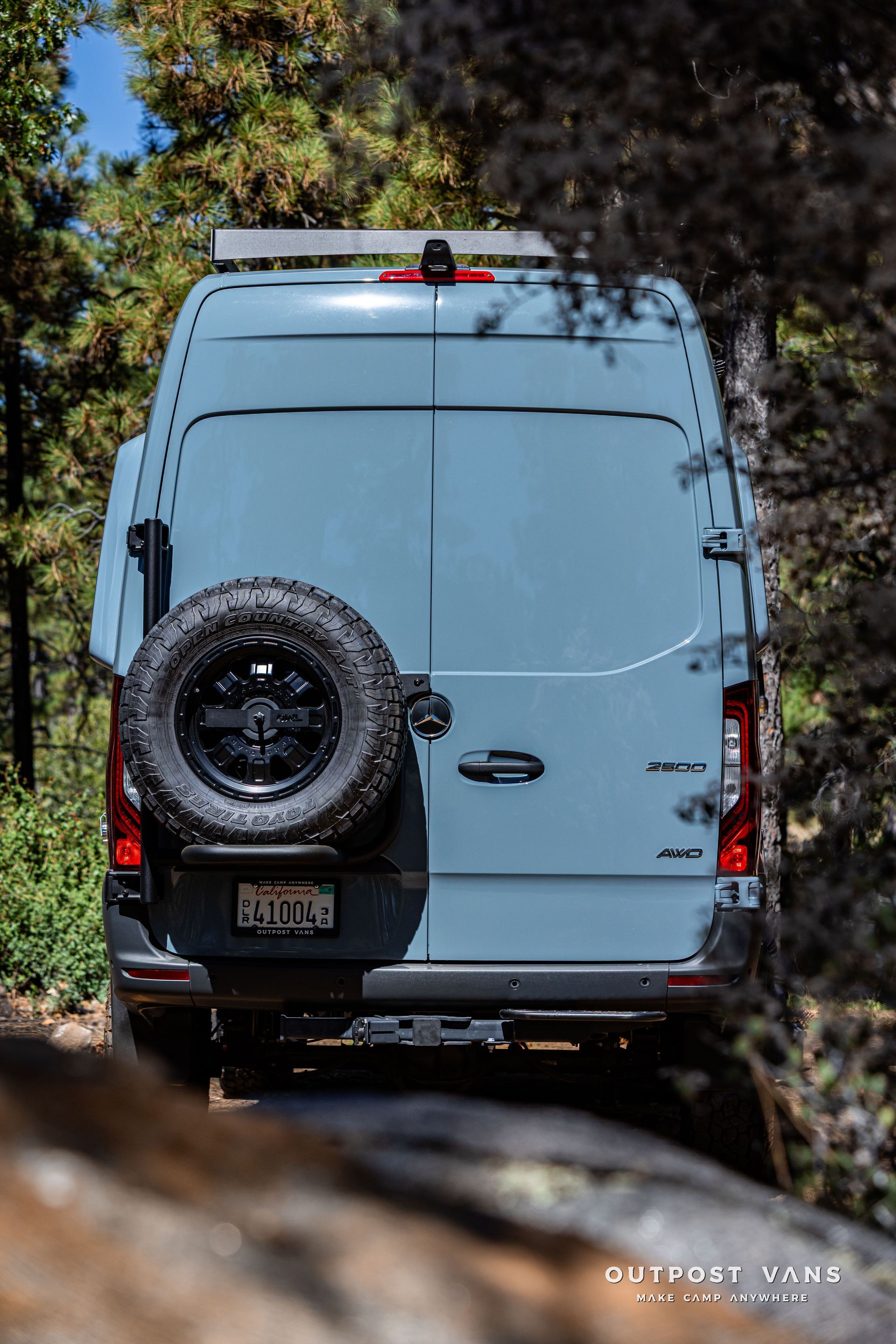

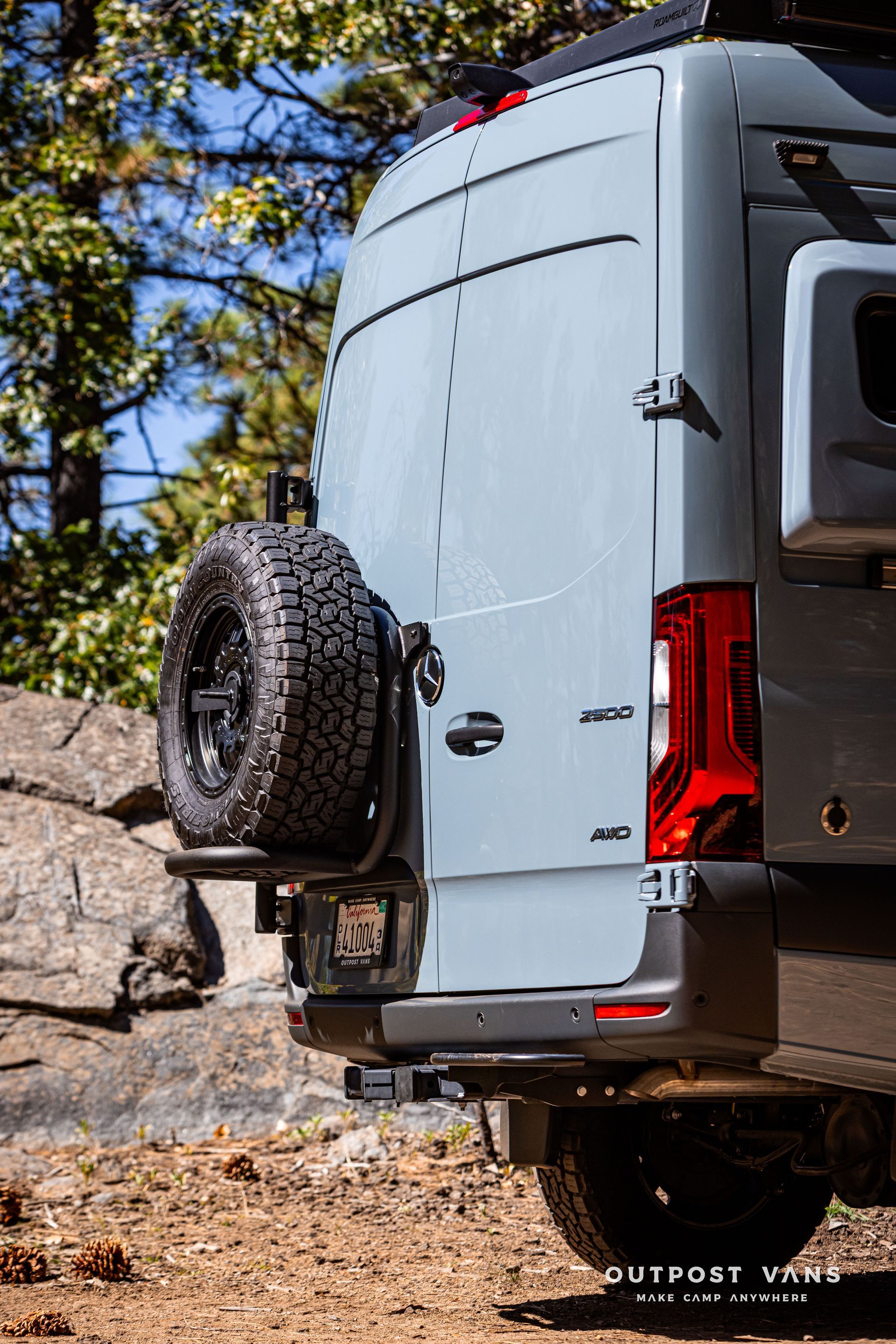

    • OWL VANS EXPEDITION TIRE CARRIER
    • (2) RIGID INDUSTRIES SCENE LIGHTS
    • (1) AMA SLIDER WINDOW - DRIVER SIDE
    • (1) AMA SLIDER WINDOW - PASSENGER SIDE - SLIDING DOOR

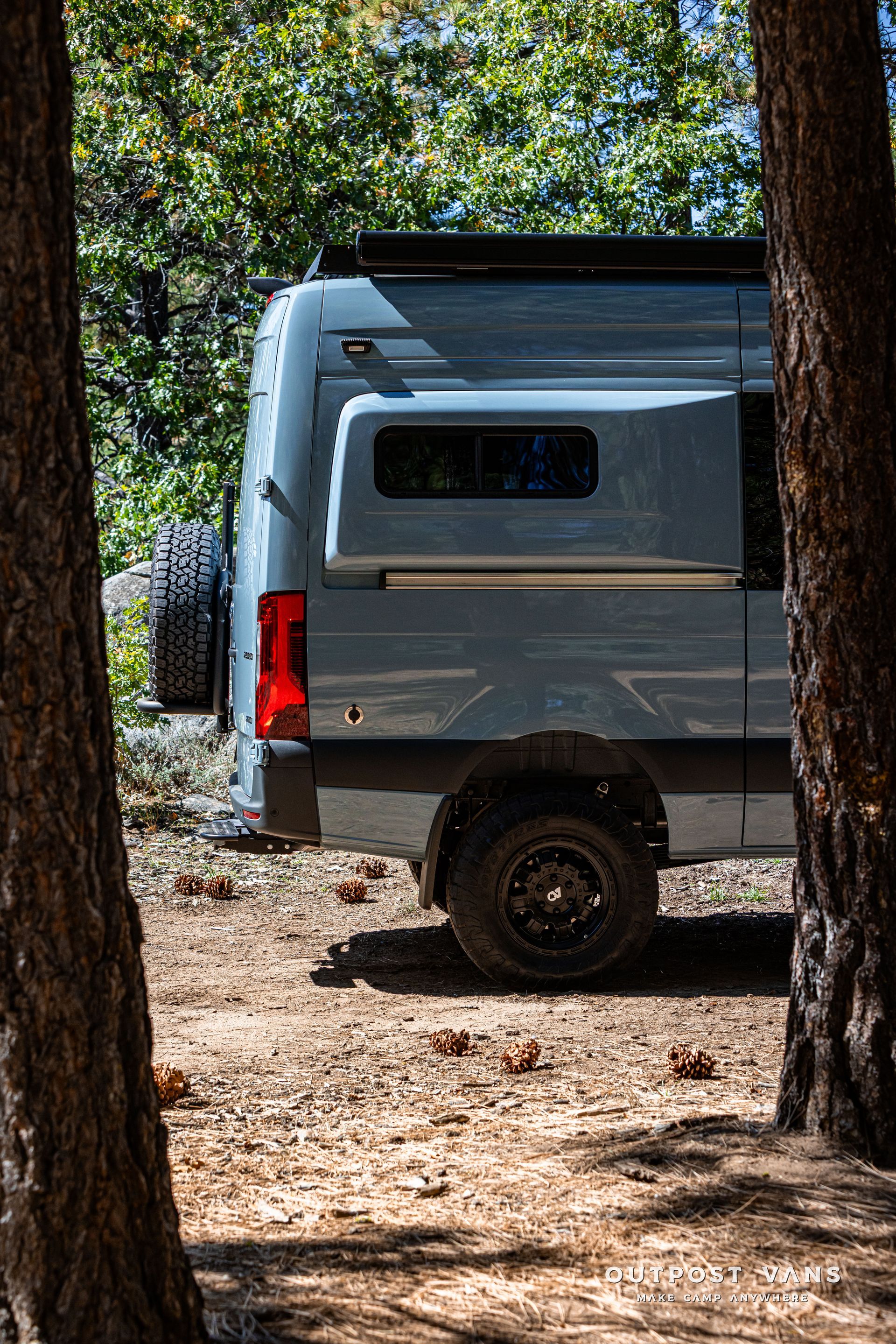

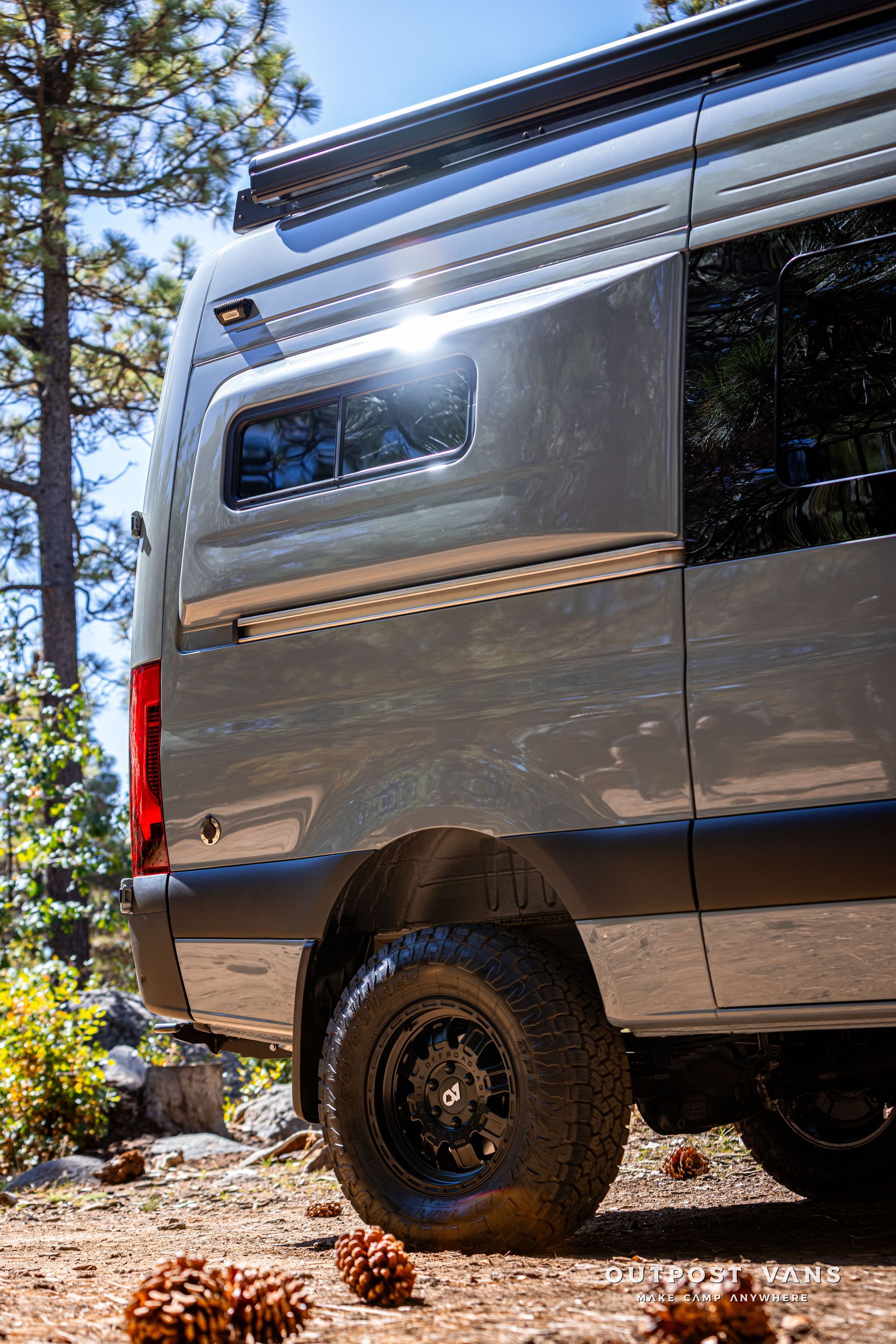

    • FLARESPACE FLARES W/ SLIDER WINDOWS

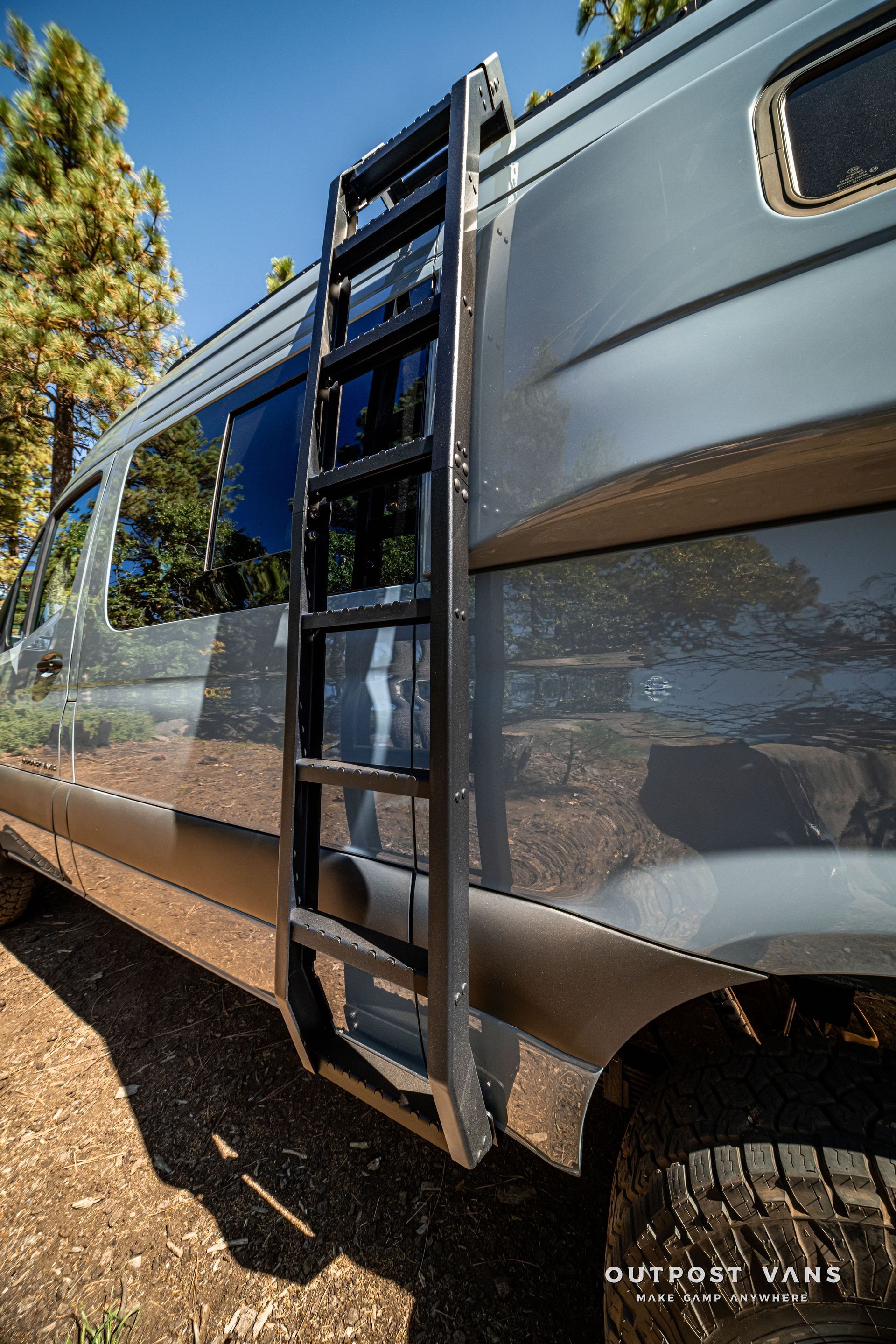

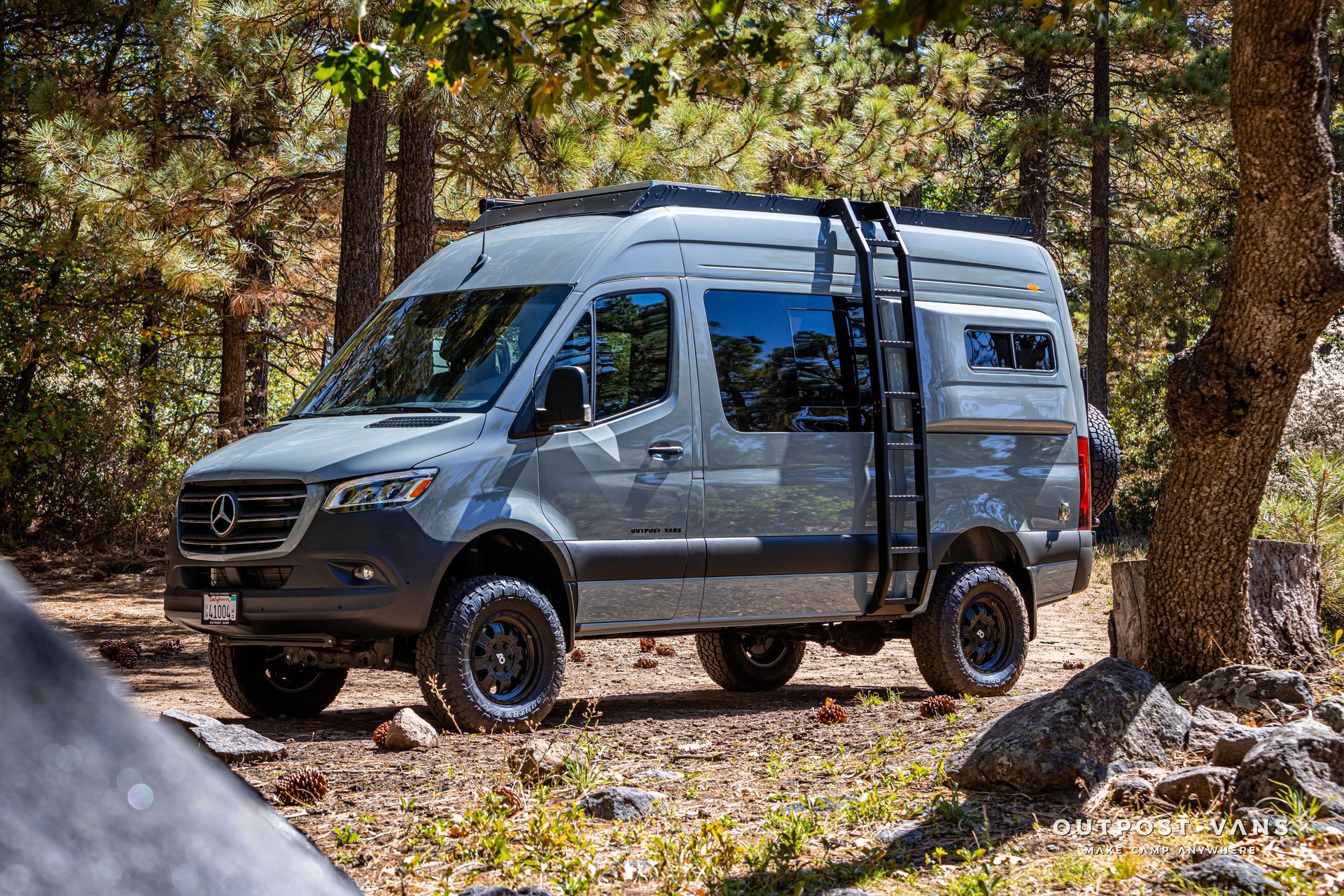

    • ROAMBUILT SIDE LADDER
    • STARLINK MINI WITH MAGNETIC MOUNT

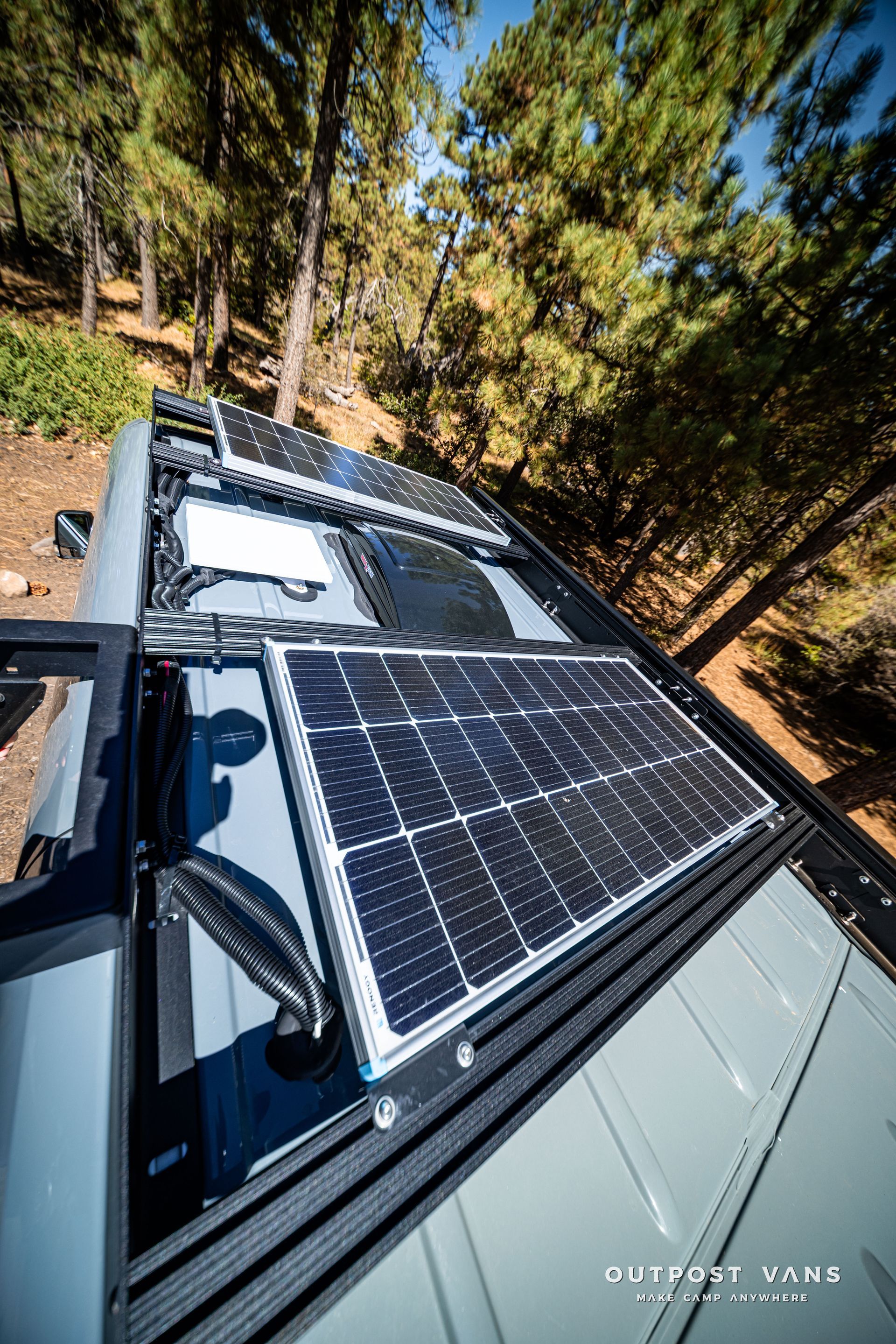

    • (2) 100W SOLAR PANELS

  • PERFORMANCE

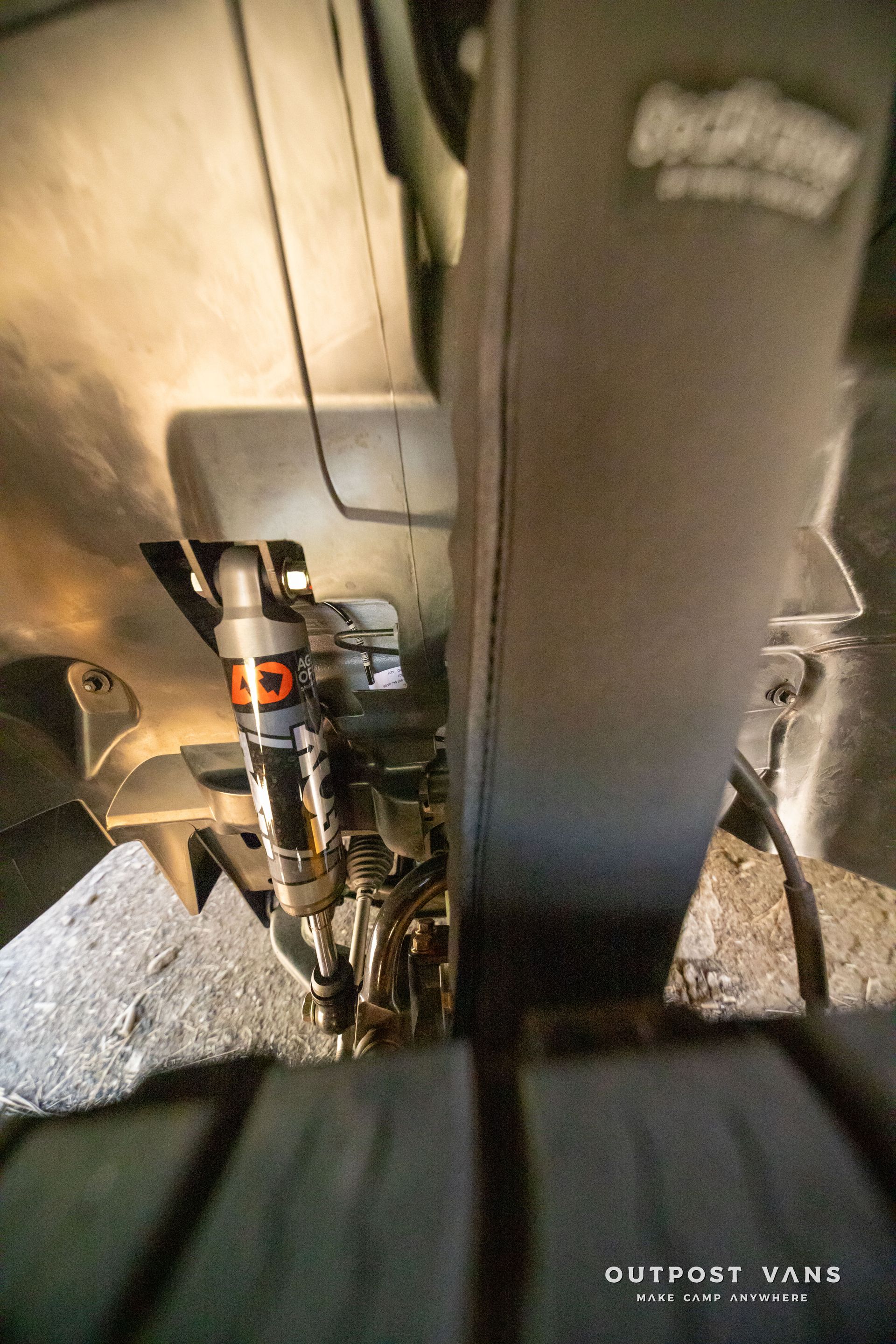

    • AGILE OFFROAD - RIDE IMPROVEMENT PACKAGE FOR AWD SPRINTER 2500
    • BILSTEIN FRONT STRUT, COIL OVER, FOX SHOCKS FRONT & REAR SHOCKS, 5400 LB LEAF SPRING
    • NO RUB KIT FOR ALL-TERRAIN TIRES
    • FRONT FLAP KIT
    • REAR FLAP/FENDER TRIMMING

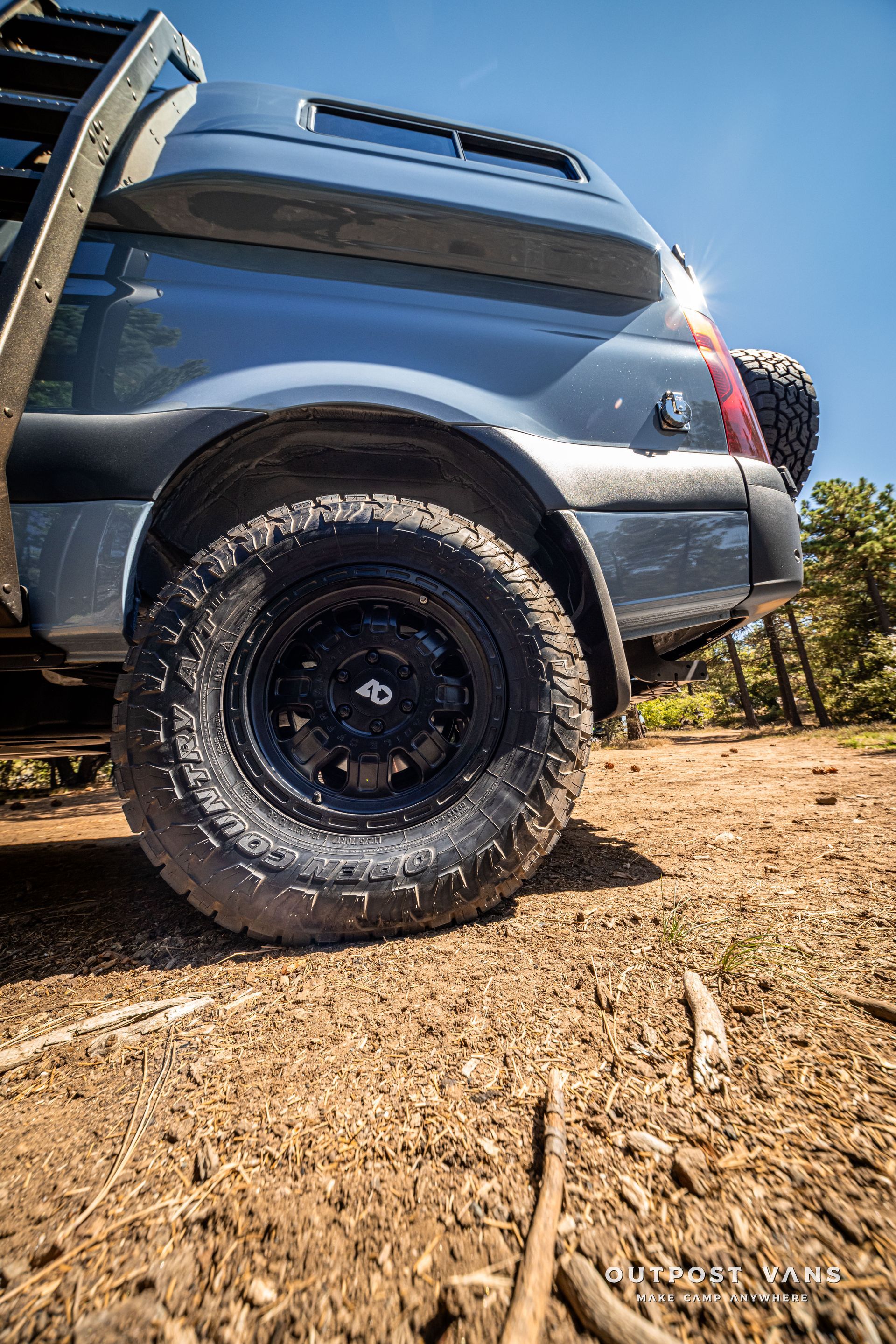

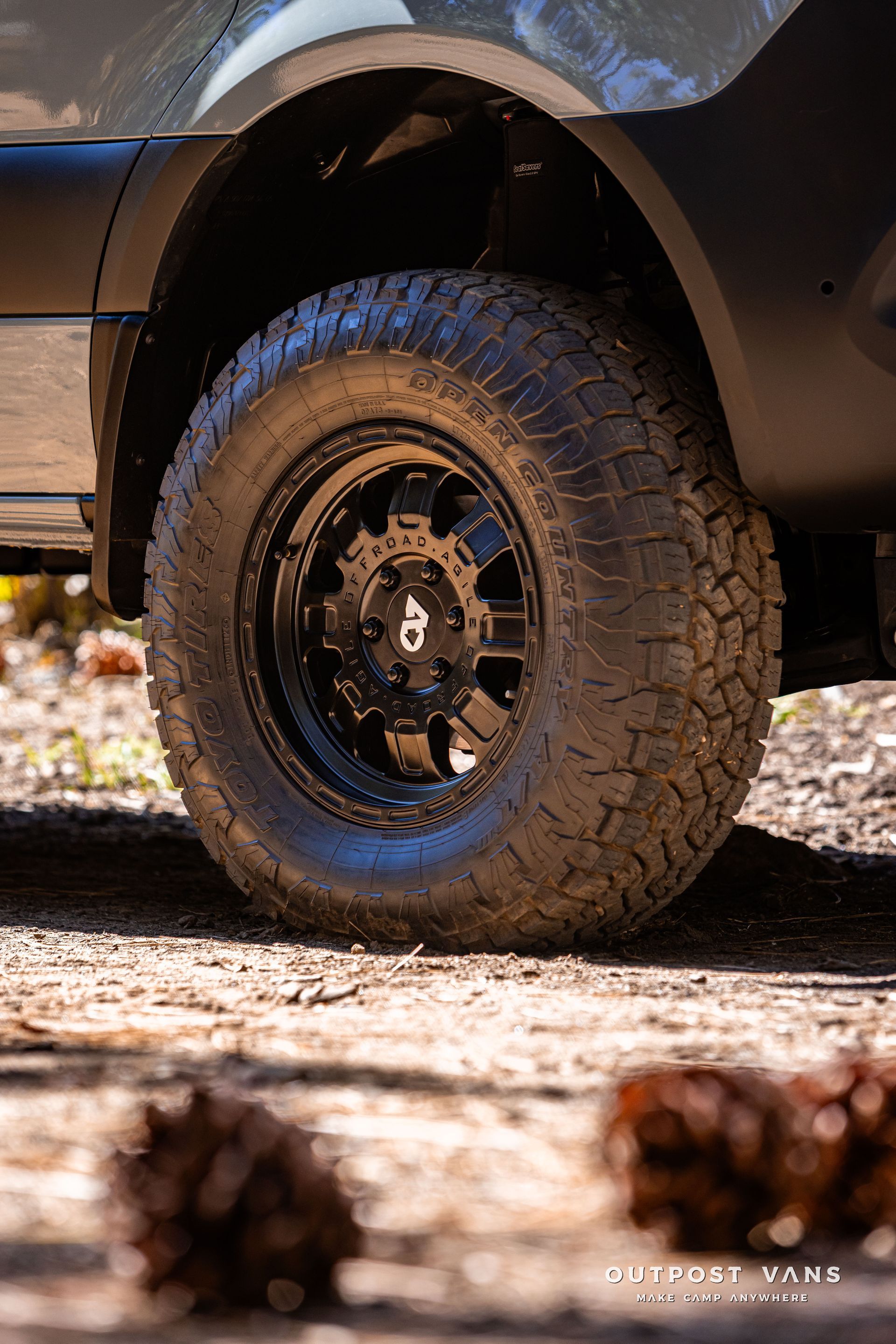

    • (5) AGILE OFFROAD 17" OVERLANDER HD - BLACK
    • (5) TOYO OPEN COUNTRY AT III 275/70R17
    • 45 GALLON EXTENDED RANGE FUEL TANK

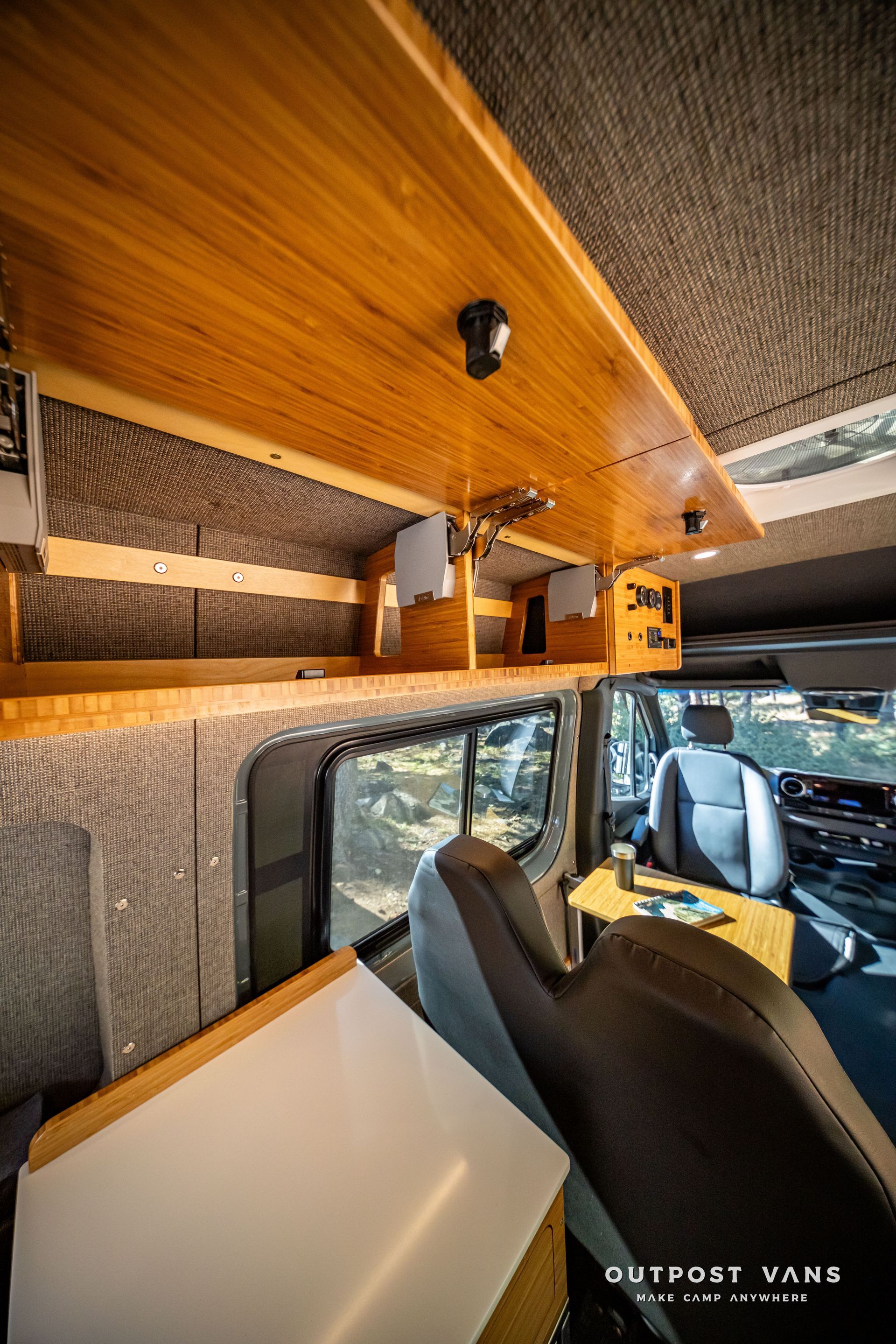

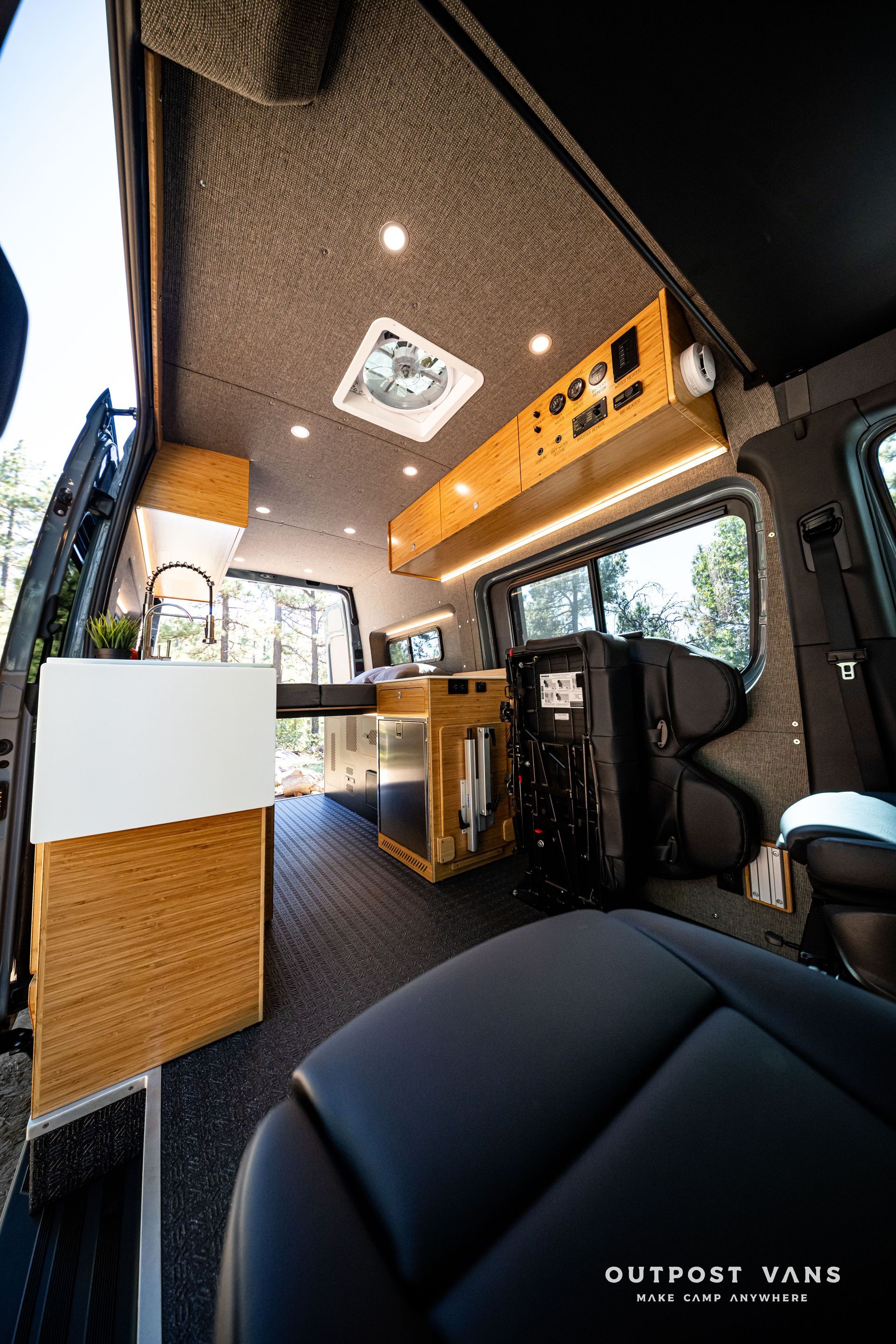

  • LIVING ROOM

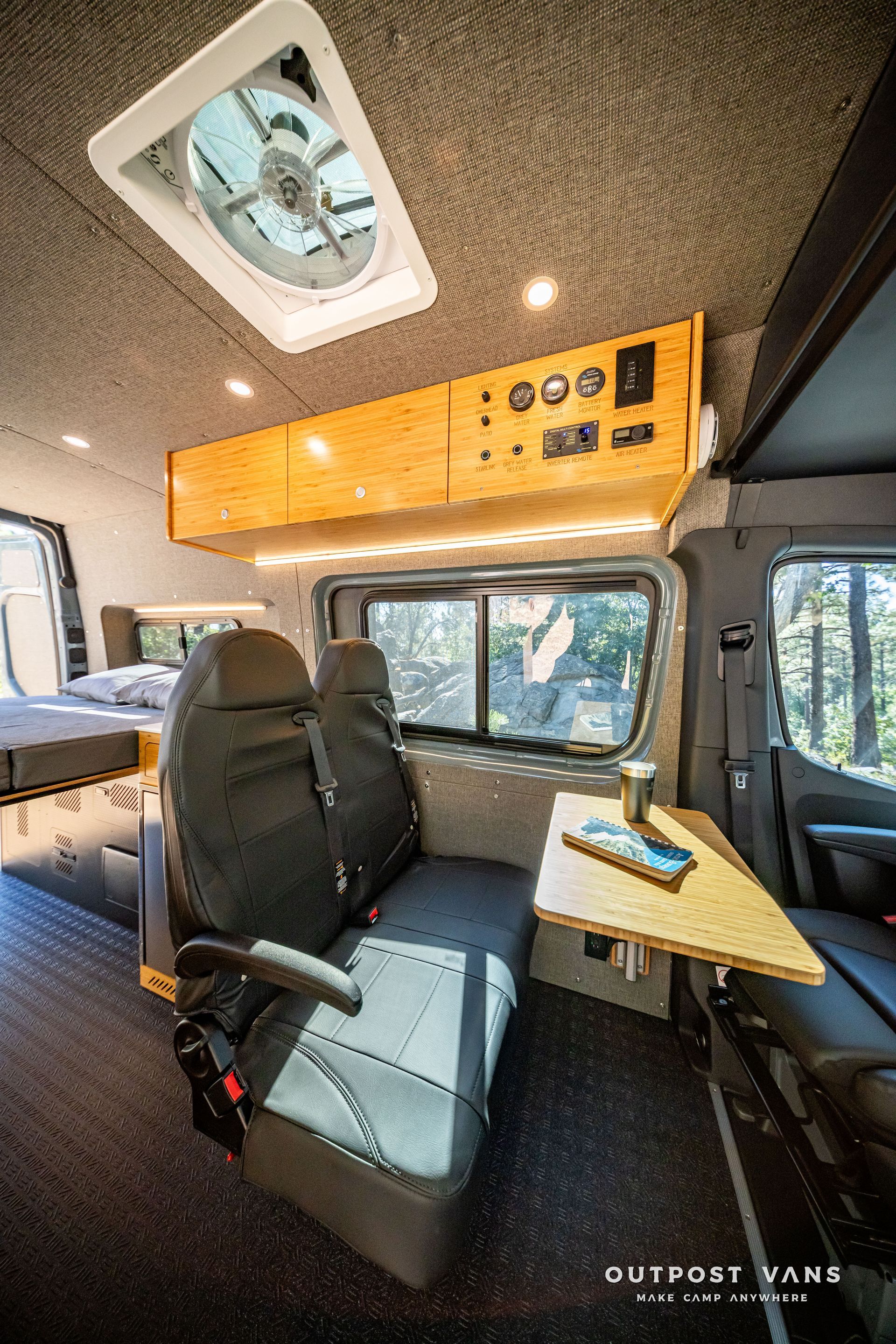

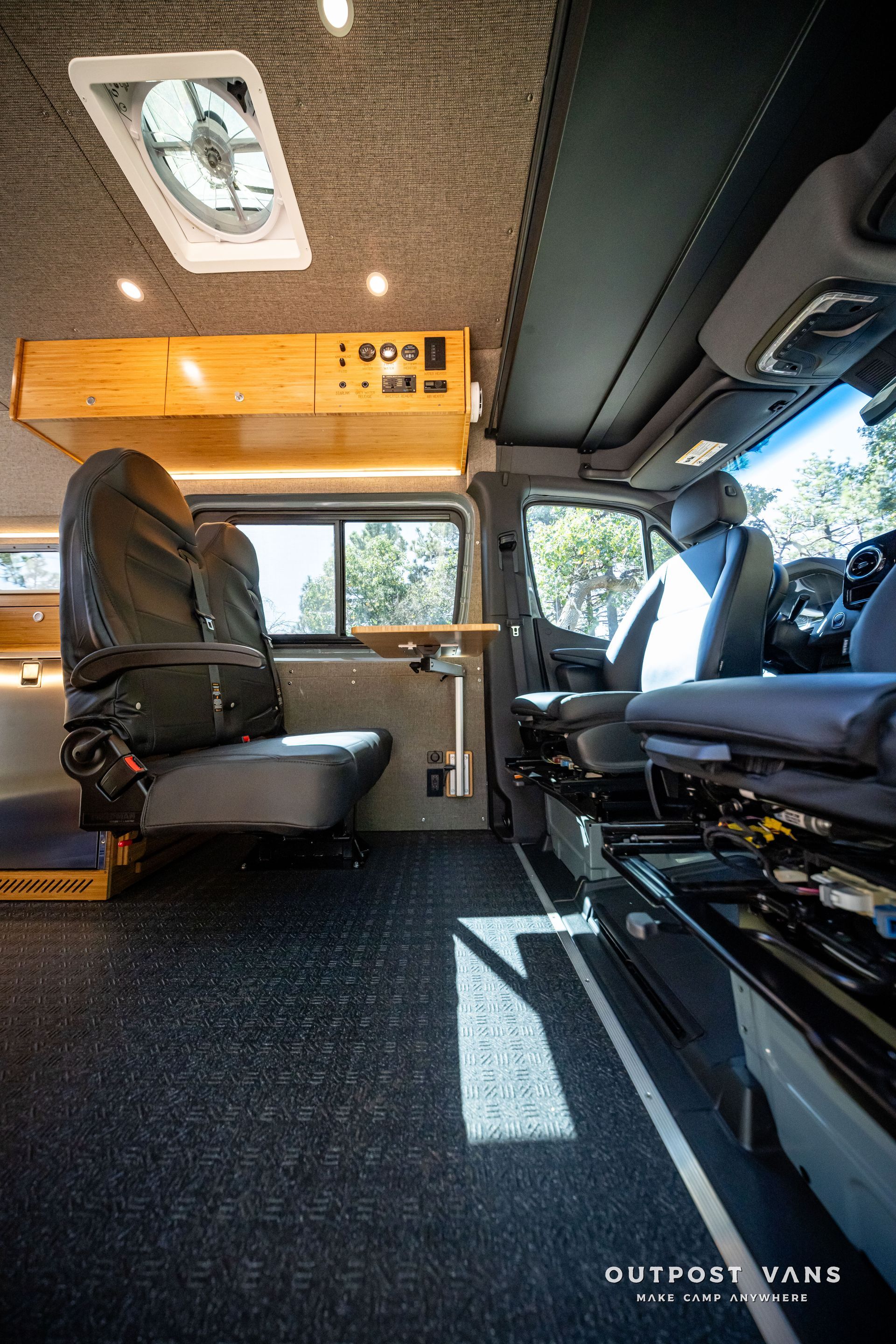

    • DOUBLE BELAGIO FOLDAWAY SEAT

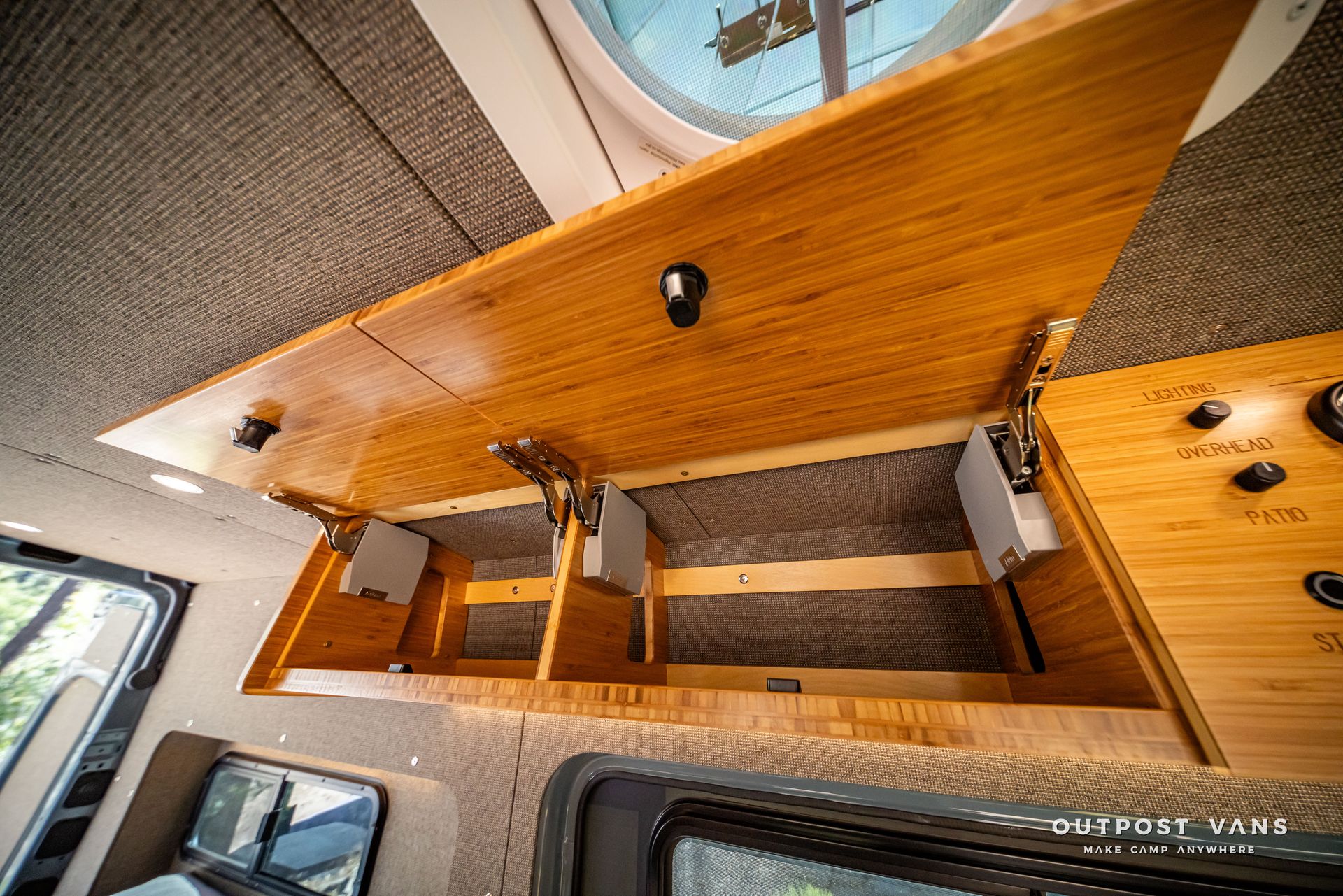

    • HEADLINER SHELF
    • FIRE EXTINGUISHER
    • (1) CARBON MONOXIDE DETECTOR ALARM, (1) SMOKE DETECTOR ALARM
    • INSULATED WINDOW COVER KIT

    • CUSTOM UPHOLSTERED PANEL WALLS / CEILING
    • OVERHEAD LED PUCK LIGHTS
    • UNDER CABINET LED LIGHTS
    • LONSEALFLOORING

  • HVAC

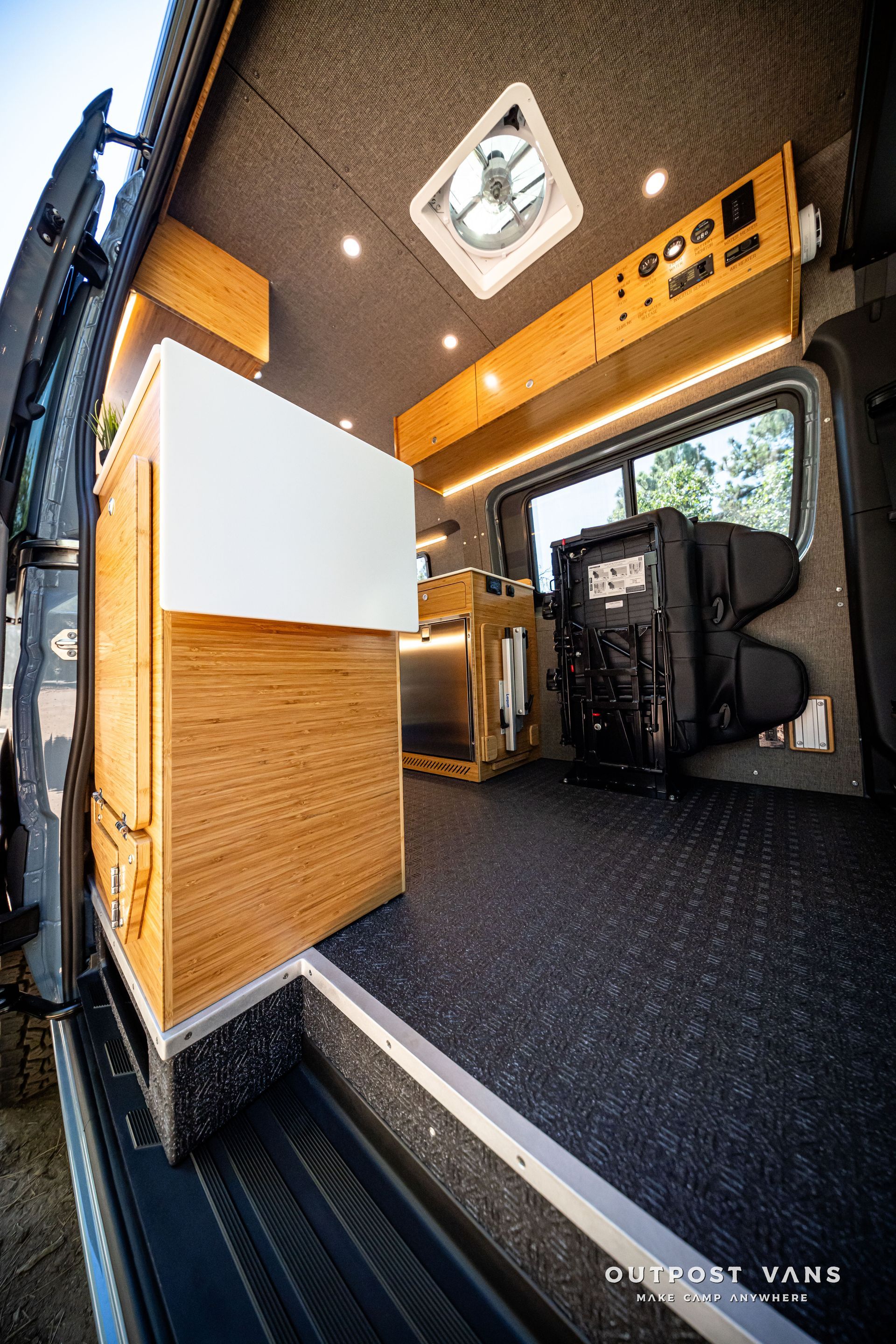

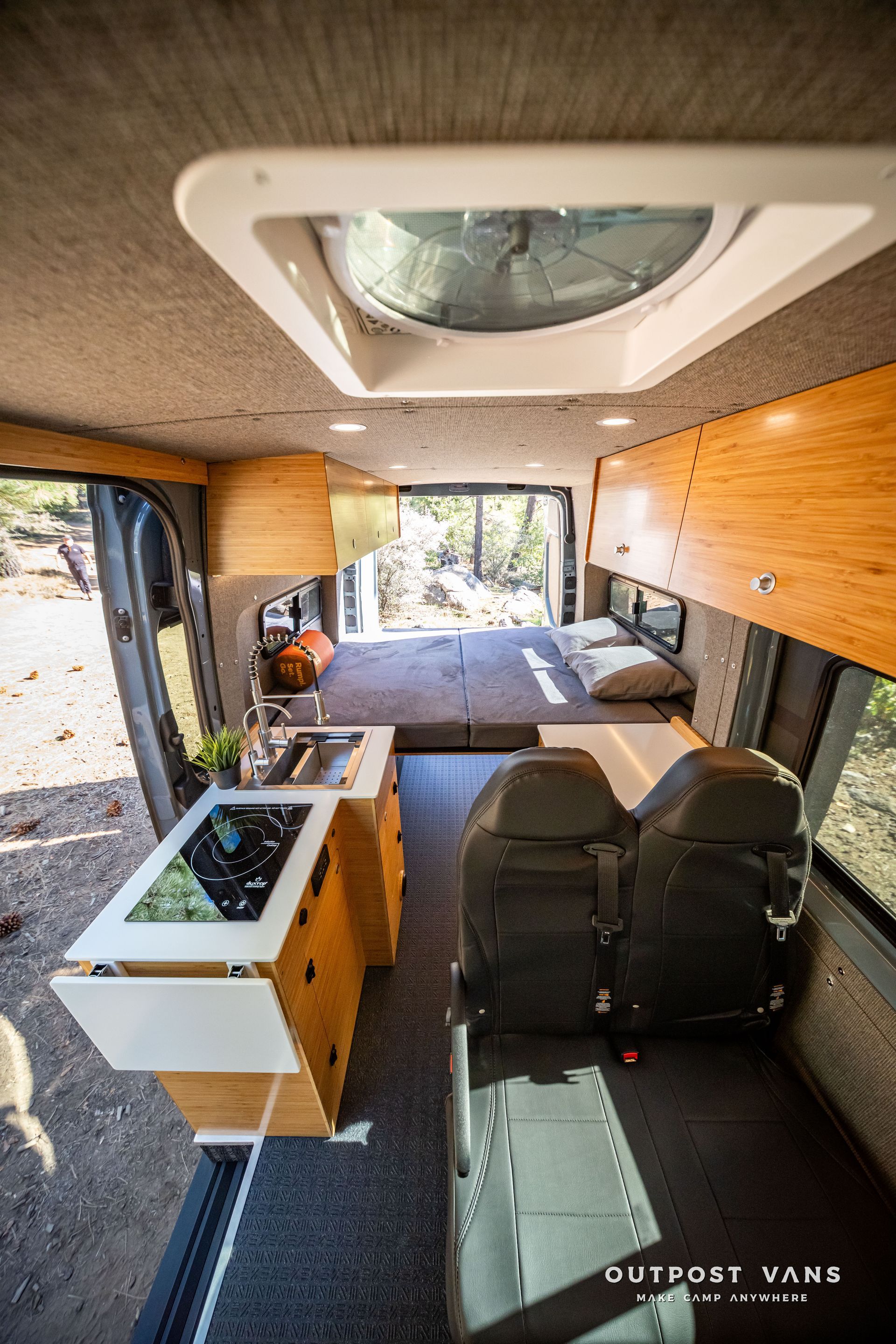

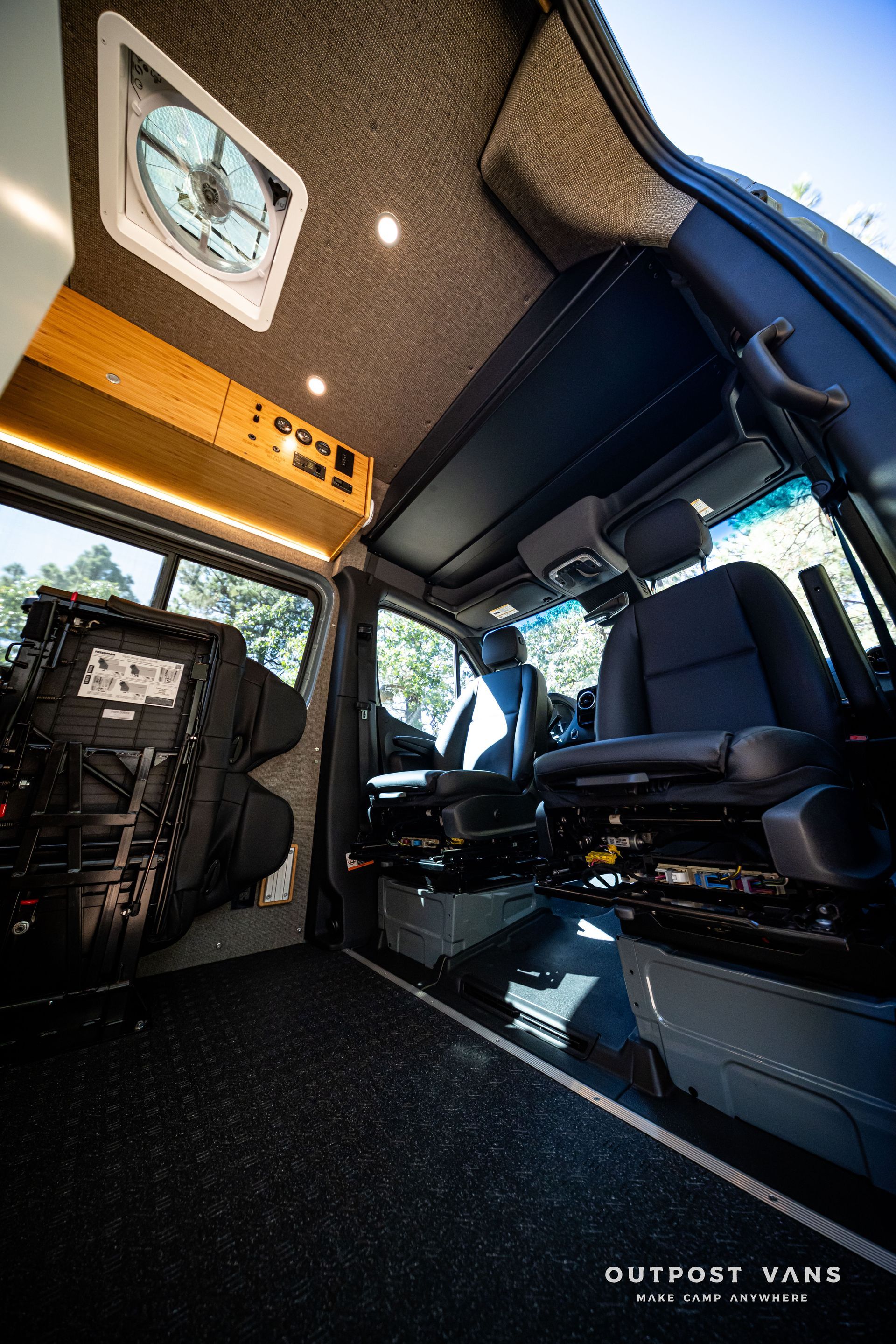

    • MAXXAIR 7500K ROOF FAN
    • ESPAR 12V DIESEL HEATER WITH HIGH ALTITUDE KIT
    • ROLL ON SOUND DEADENER (STAGE 1)
    • 3M THINSULATE ACOUSTIC/THERMAL INSULATION IN WALLS, CEILING, BEHIND PANELS, ALL VOIDS OF VAN (STAGE 2)

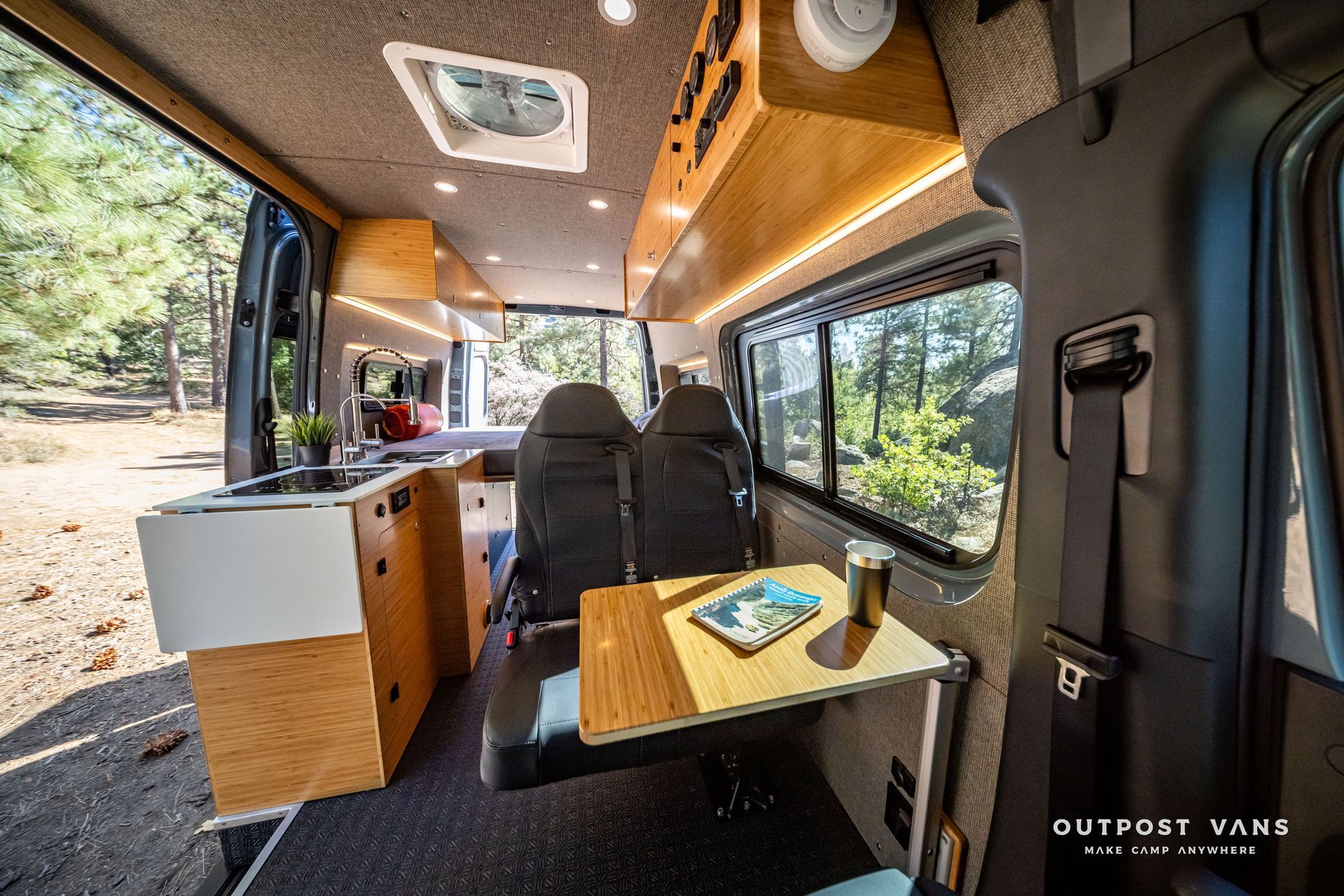

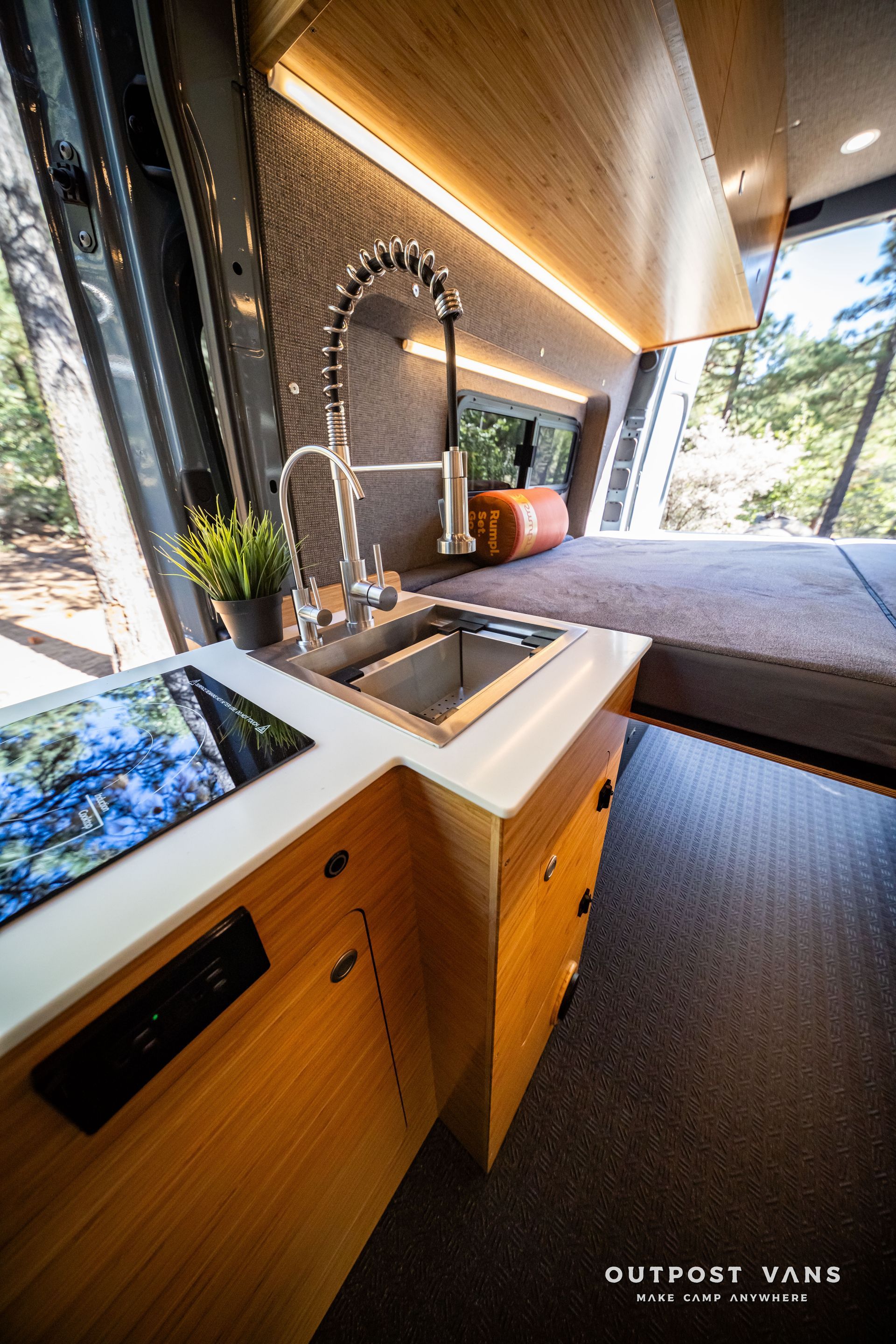

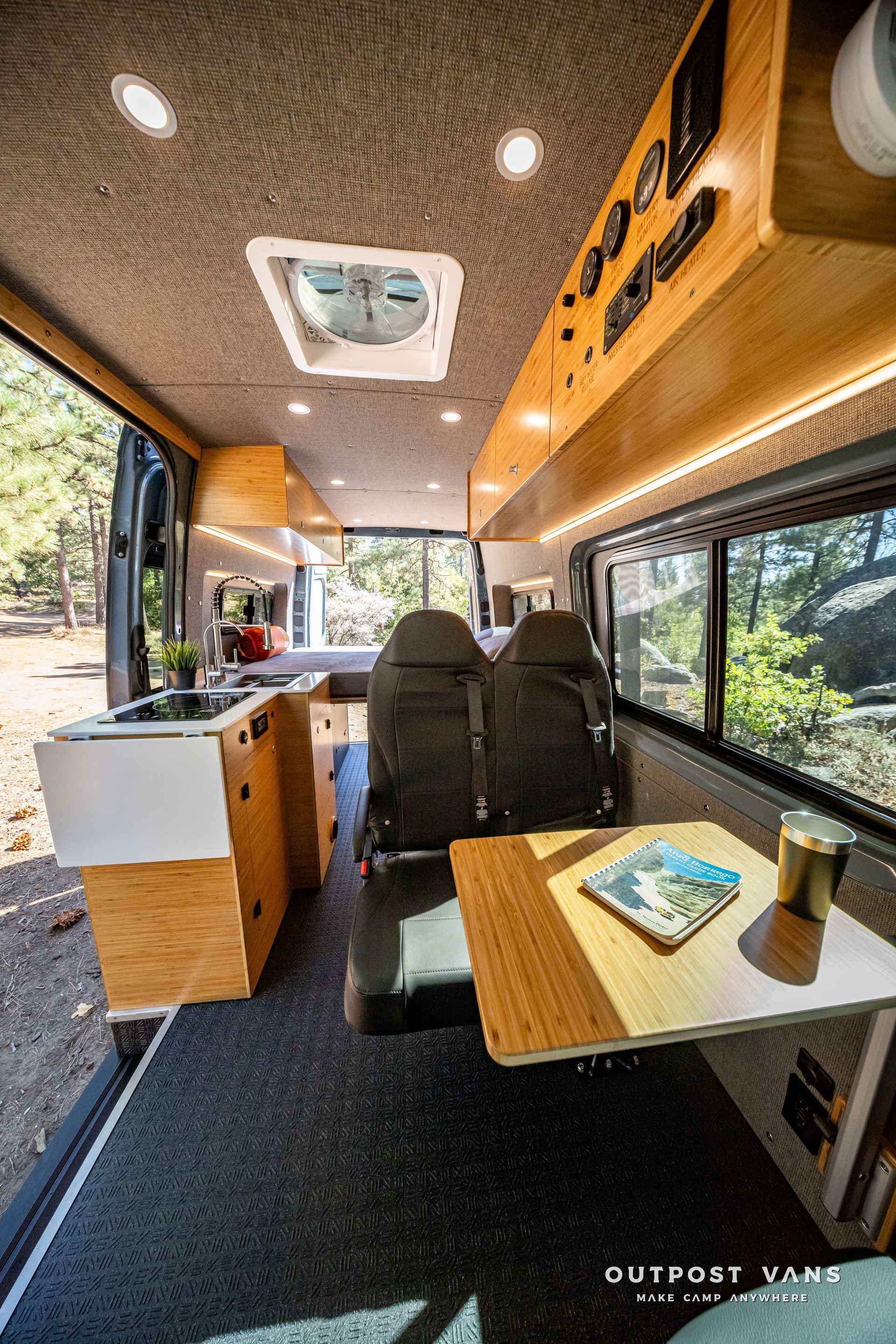

  • KITCHEN

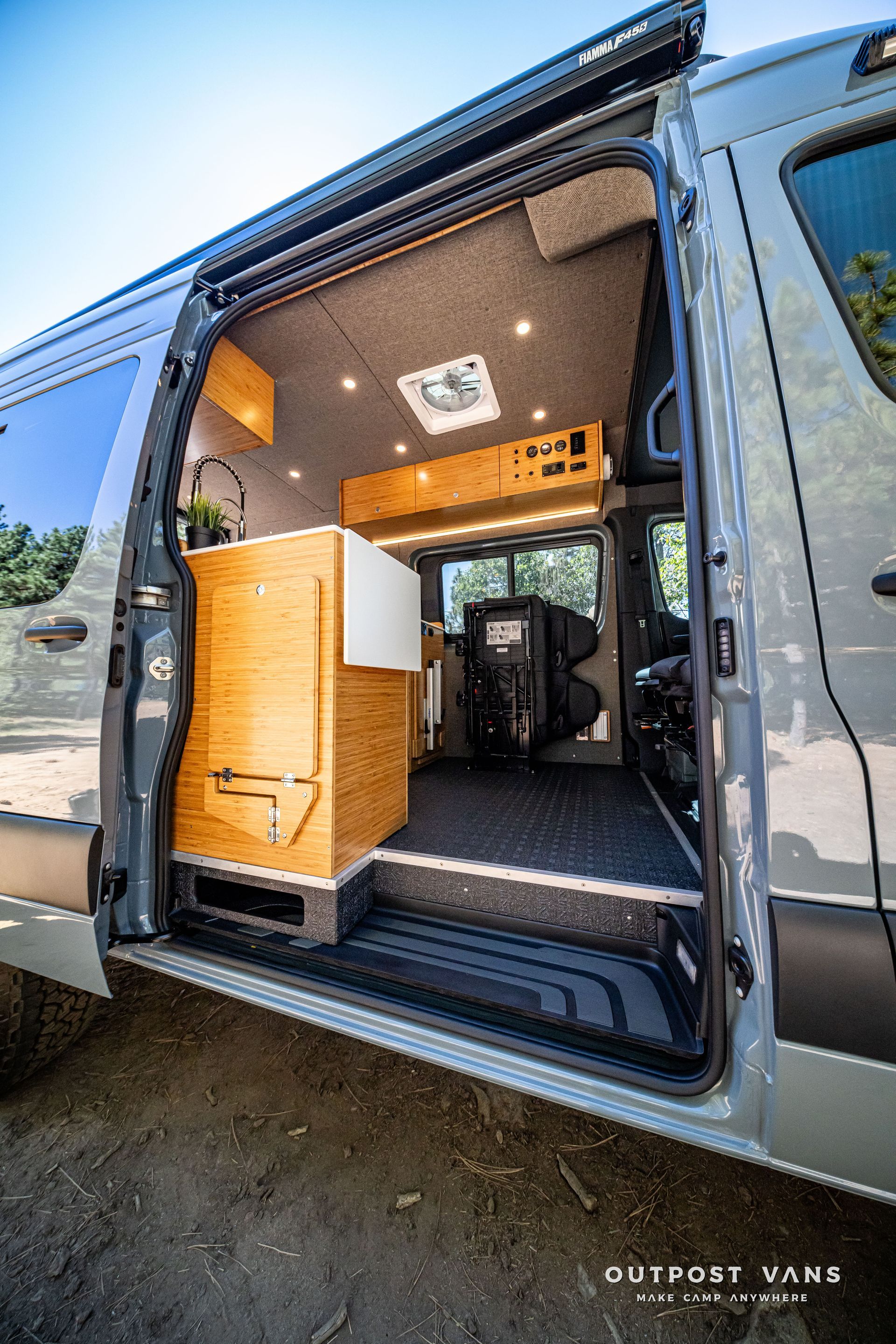

    • PASSENGER SIDE - LOWER GALLEY CABINET ~40" W/ UNDER SINK CABINET

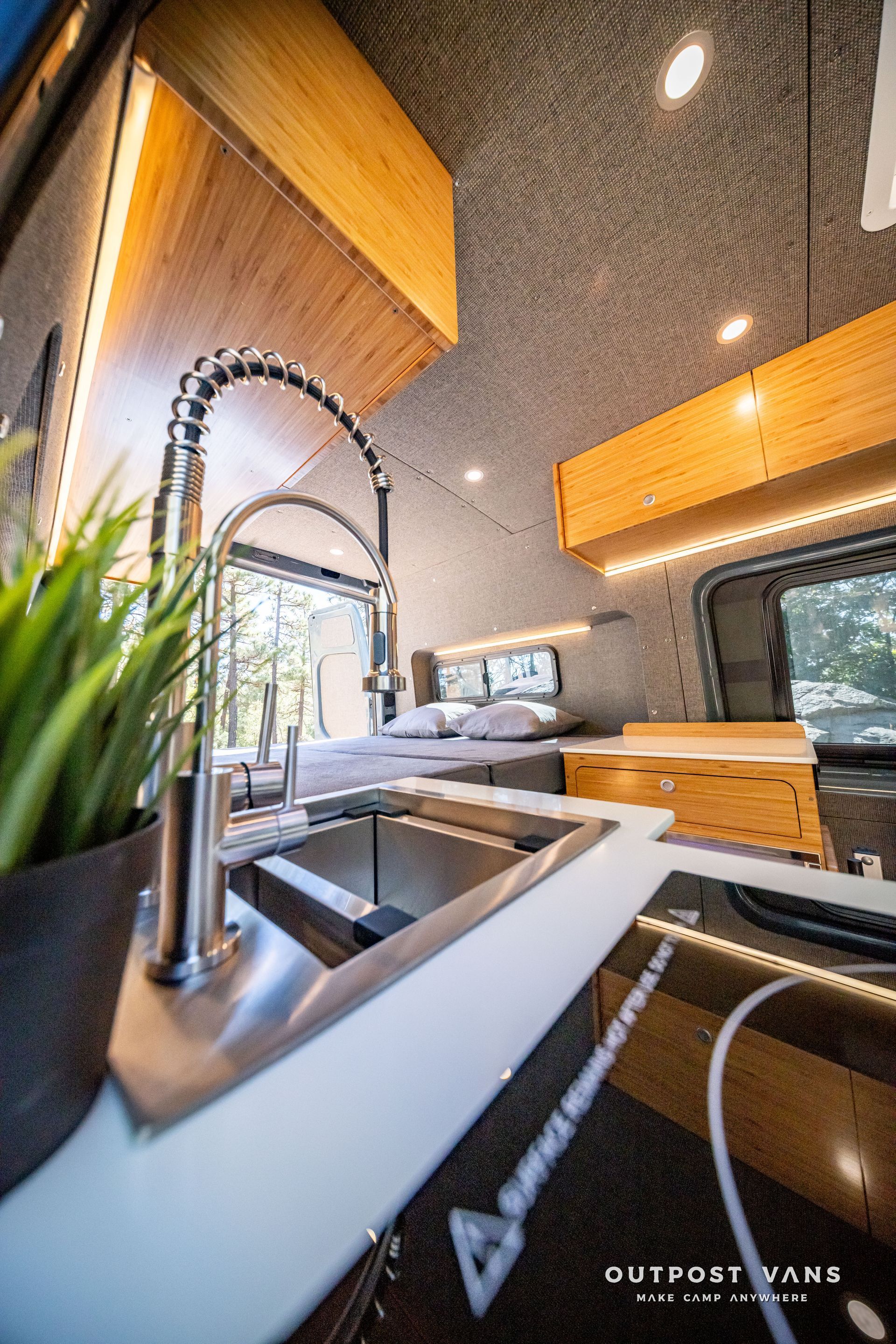

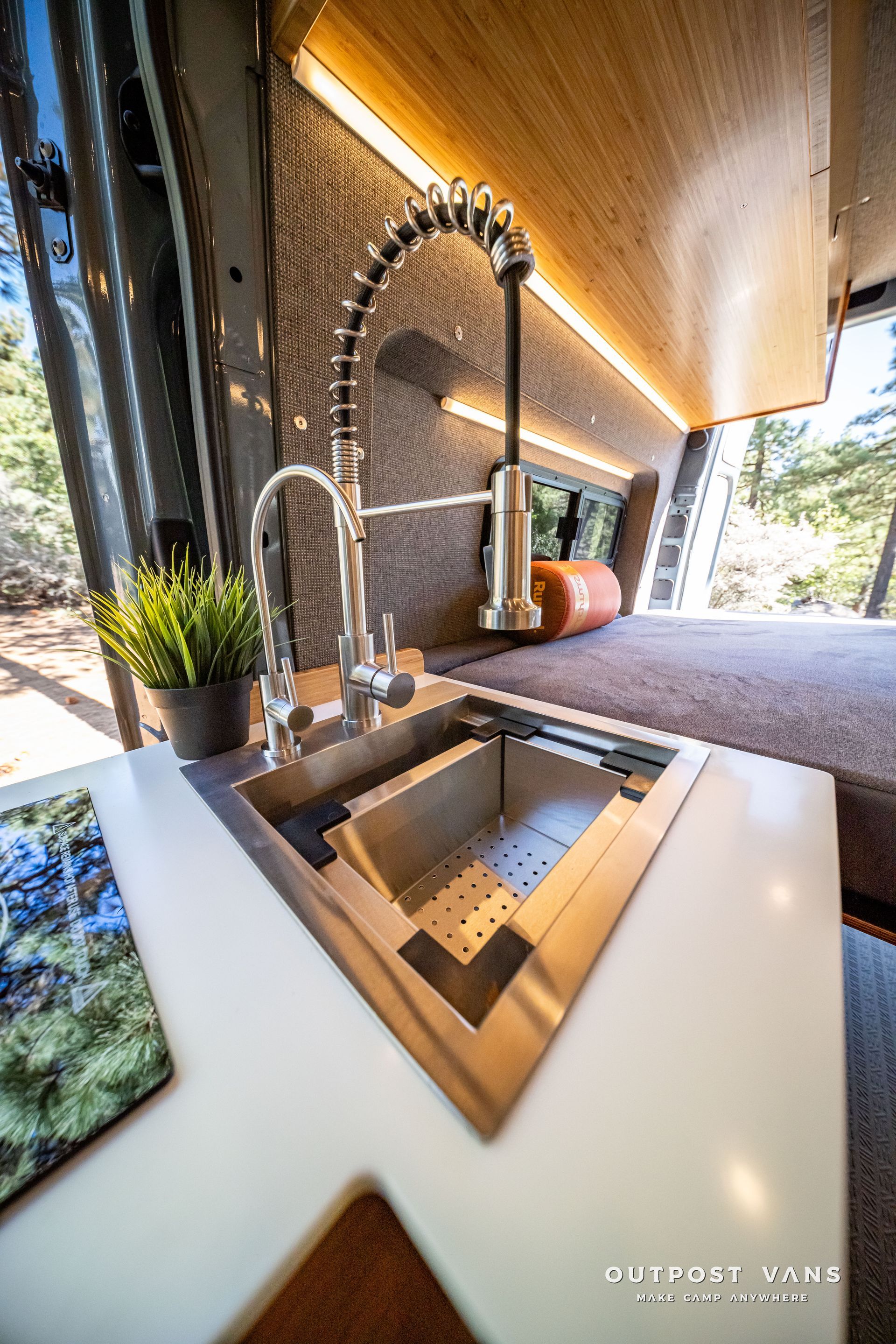

    • STAINLESS STEEL SINK
    • SINGLE BURNER INDUCTION COOKTOP
    • COUNTERTOP: WHITE CORIAN

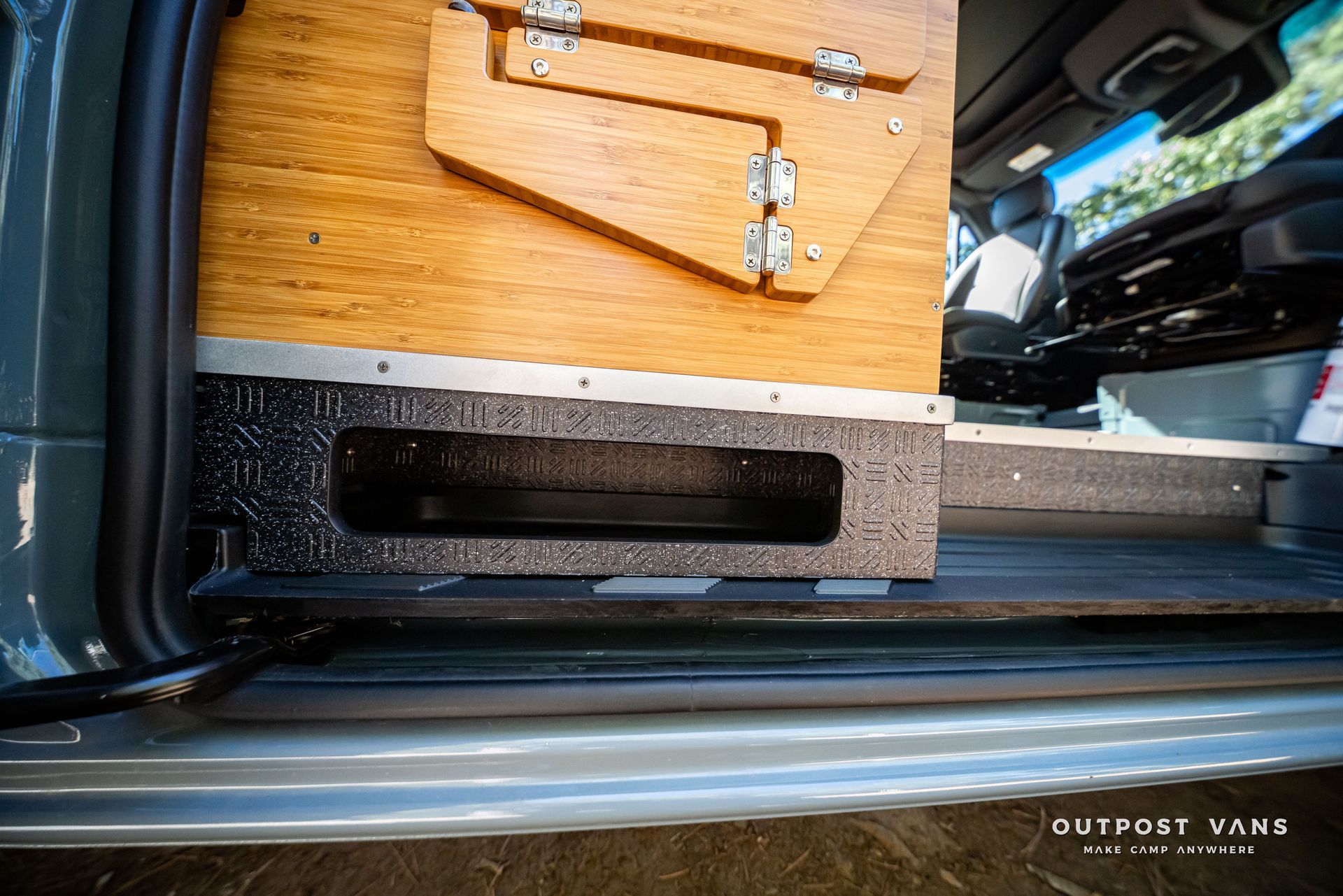

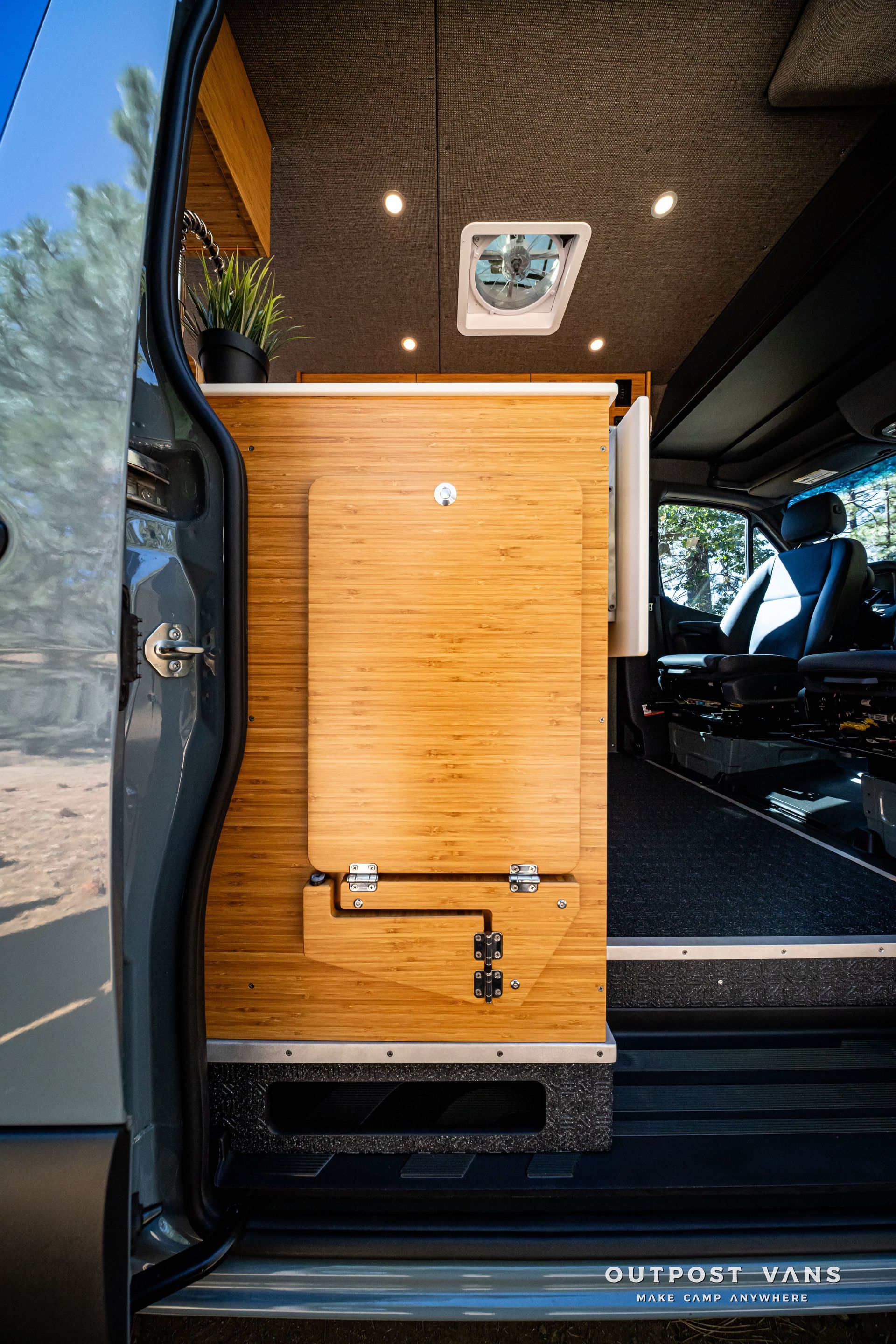

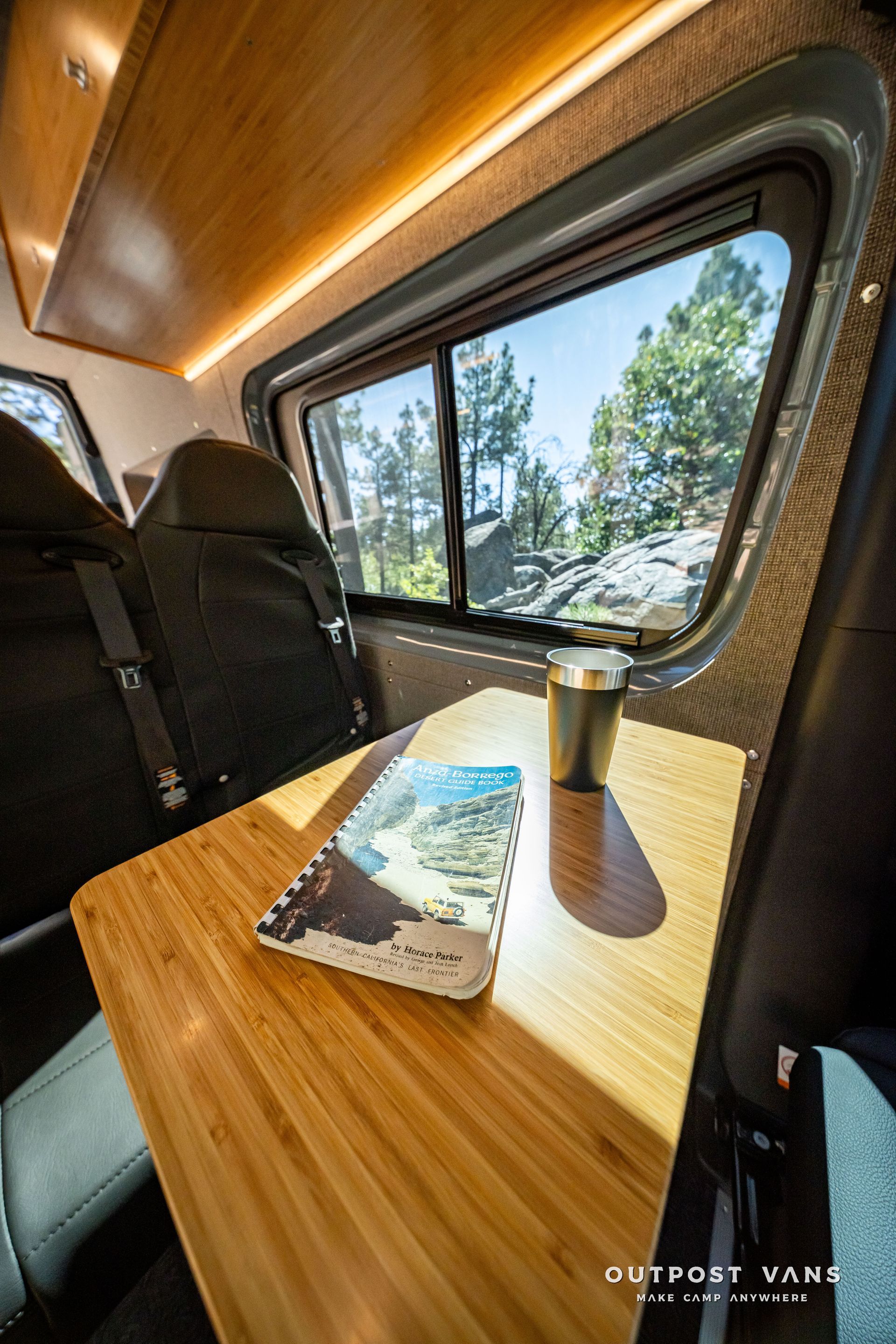

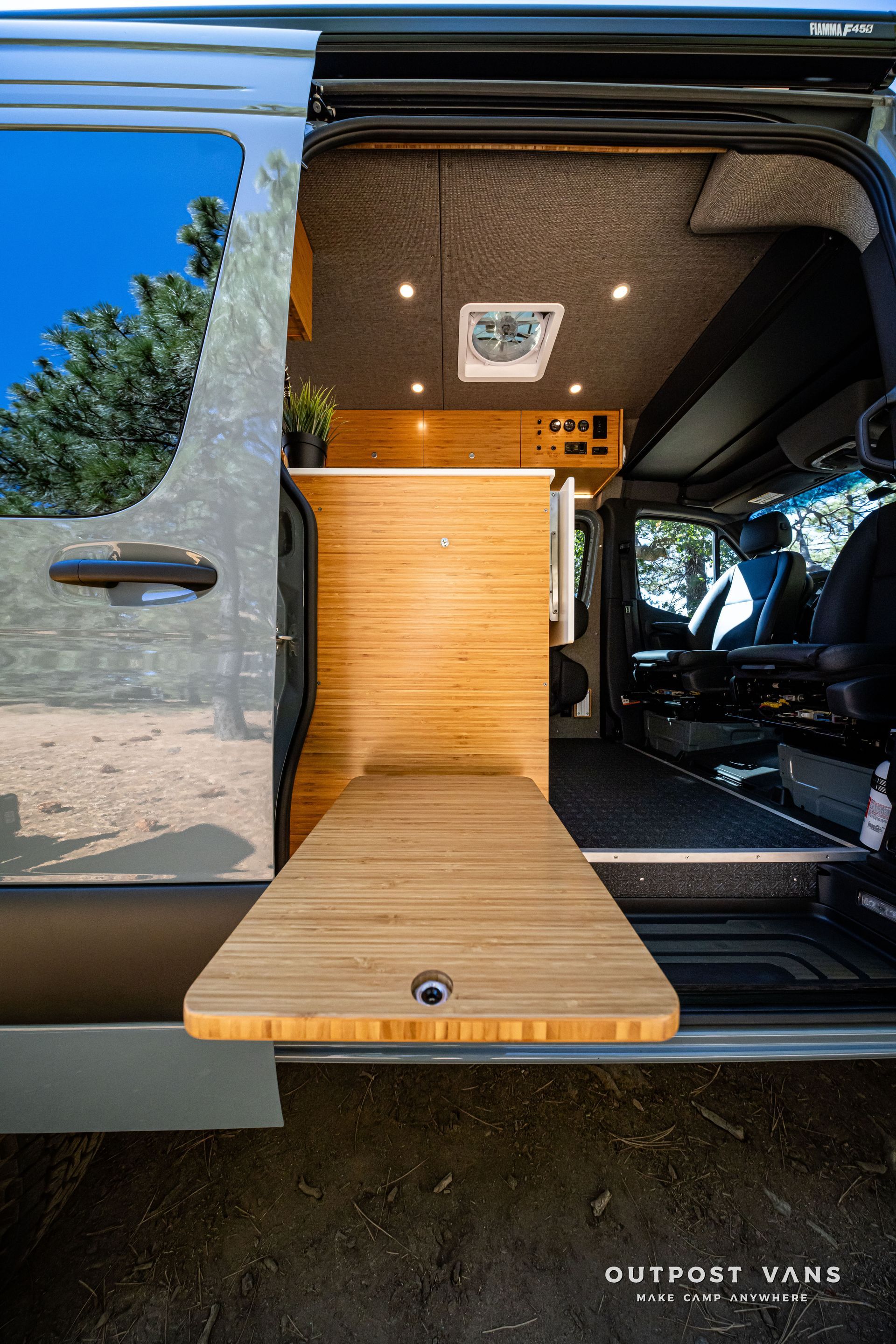

    • DROP DOWN TABLE TO EXTERIOR
    • COUNTER TOP EXTENSION
    • MARINE GRADE PUSH BUTTON LATCHES & CABINET HARDWARE
    • CONSTRUCTION: BAMBOO

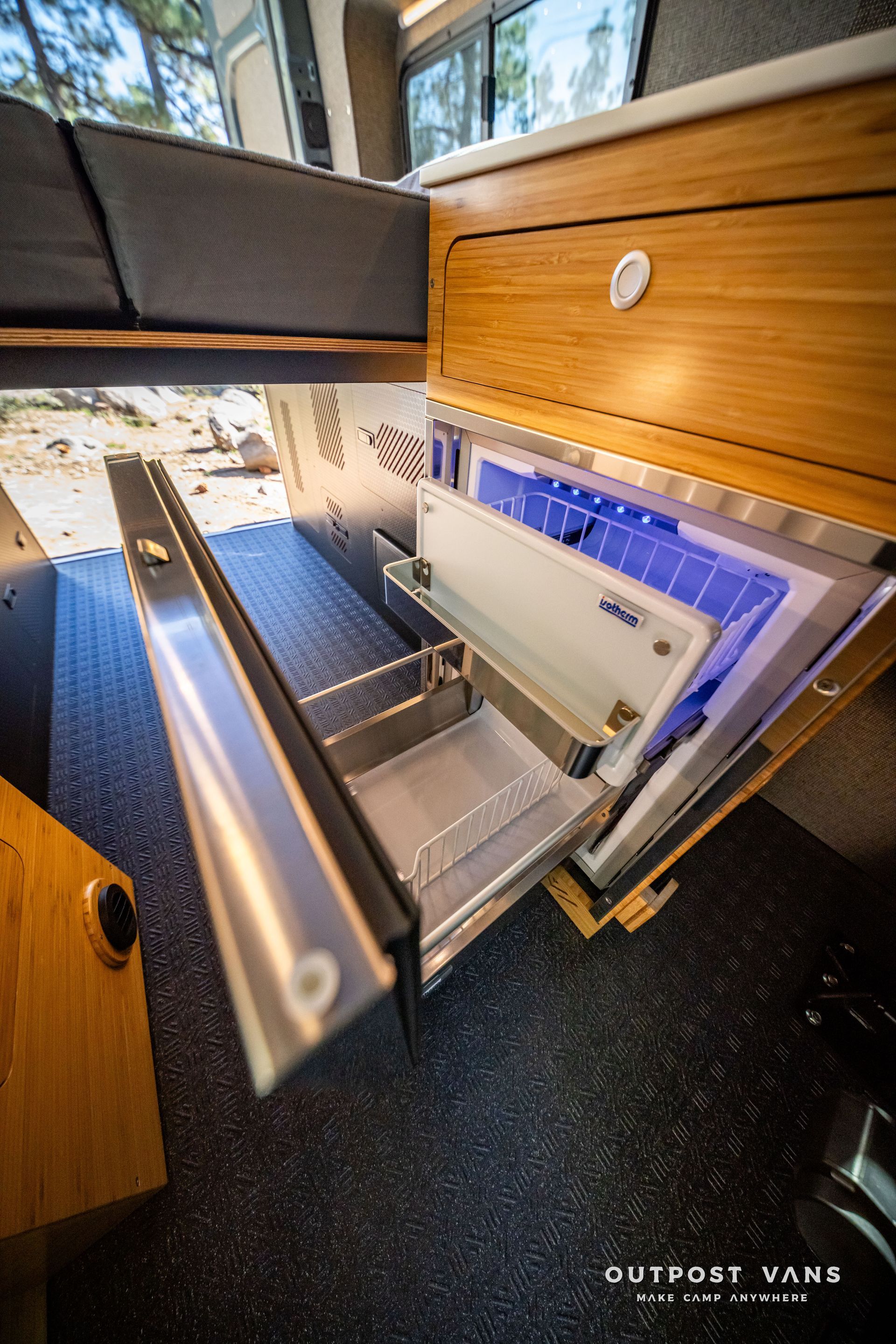

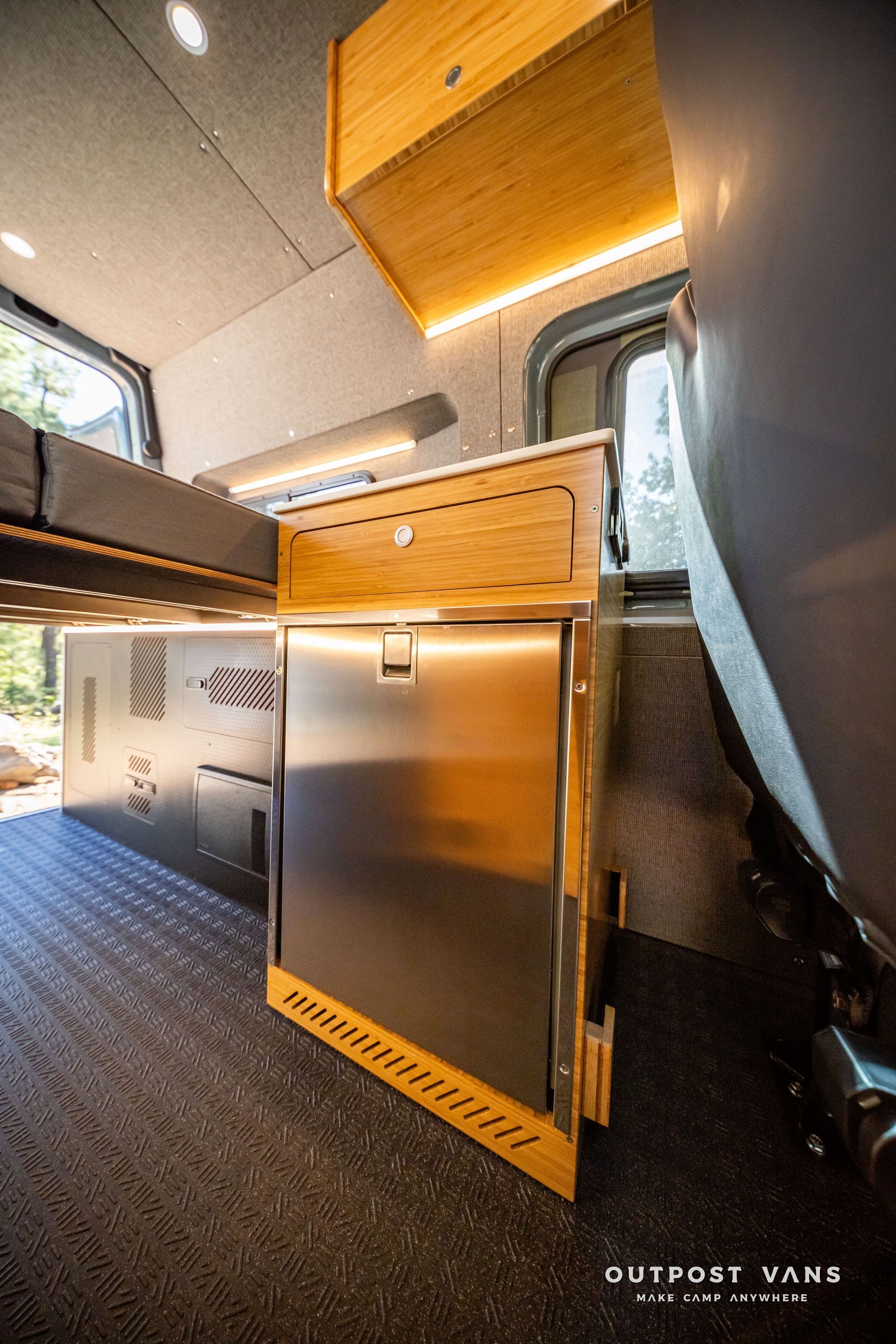

    • ISOTHERM DRAWER 85 REFRIGERATOR

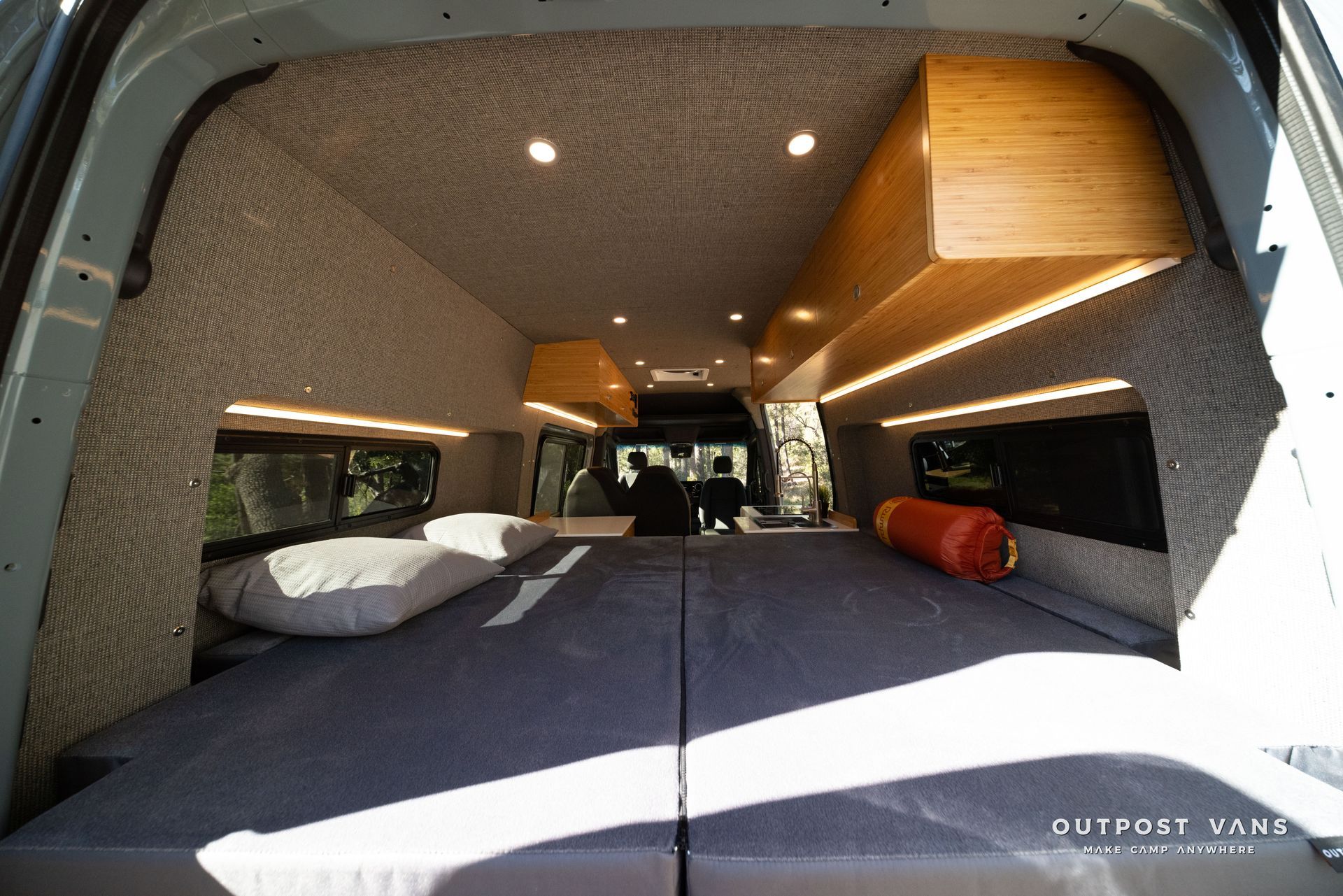

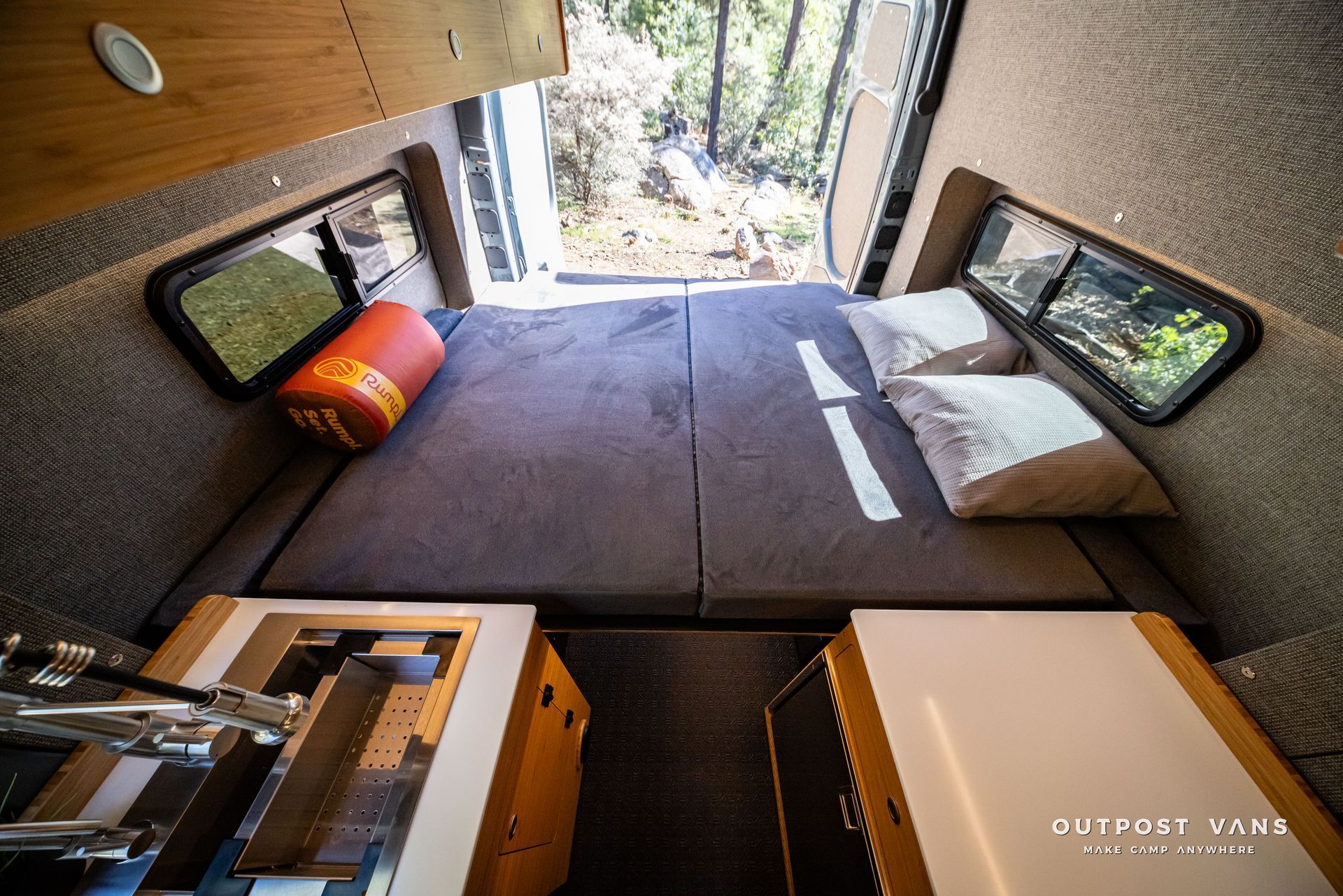

  • BEDROOM

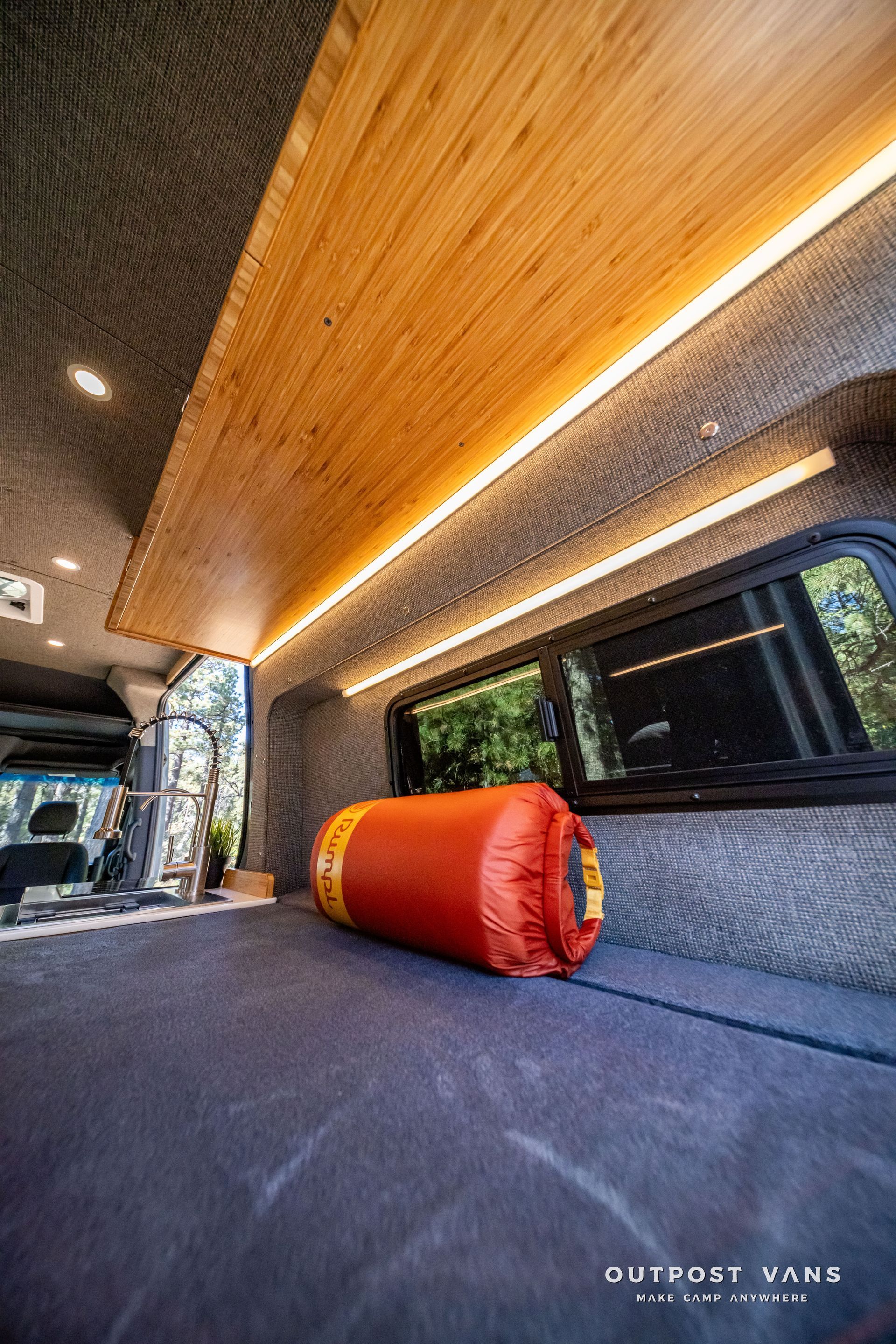

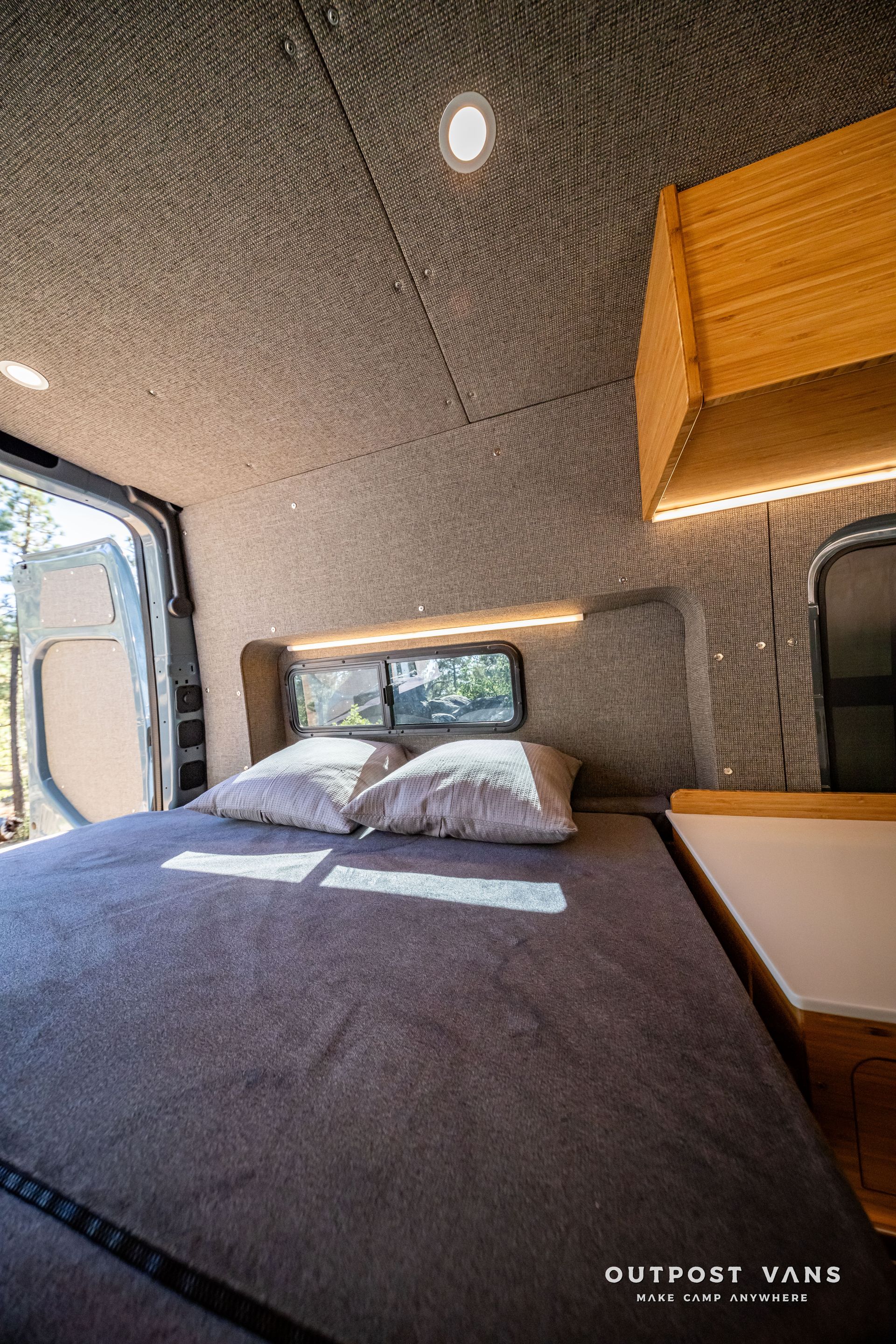

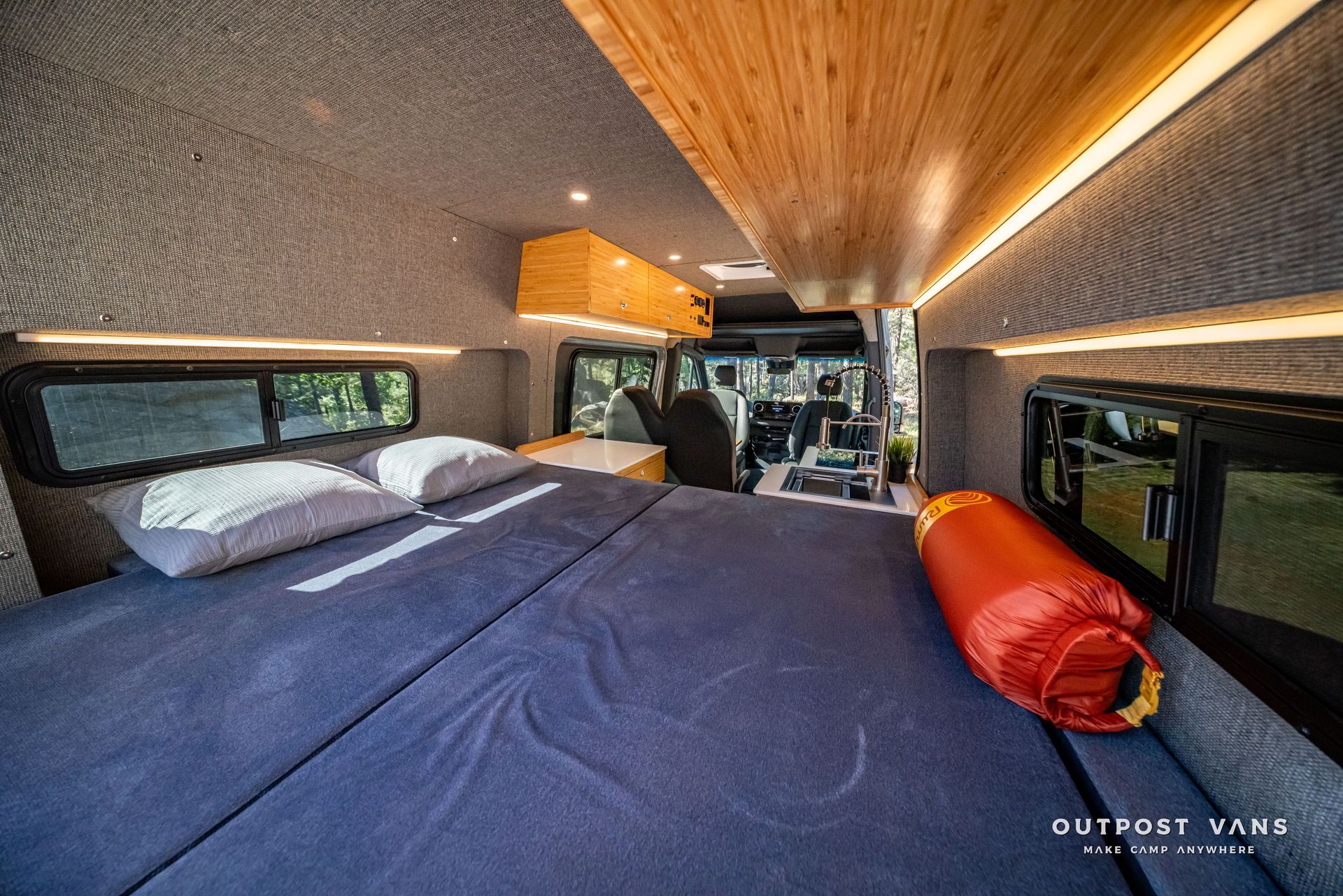

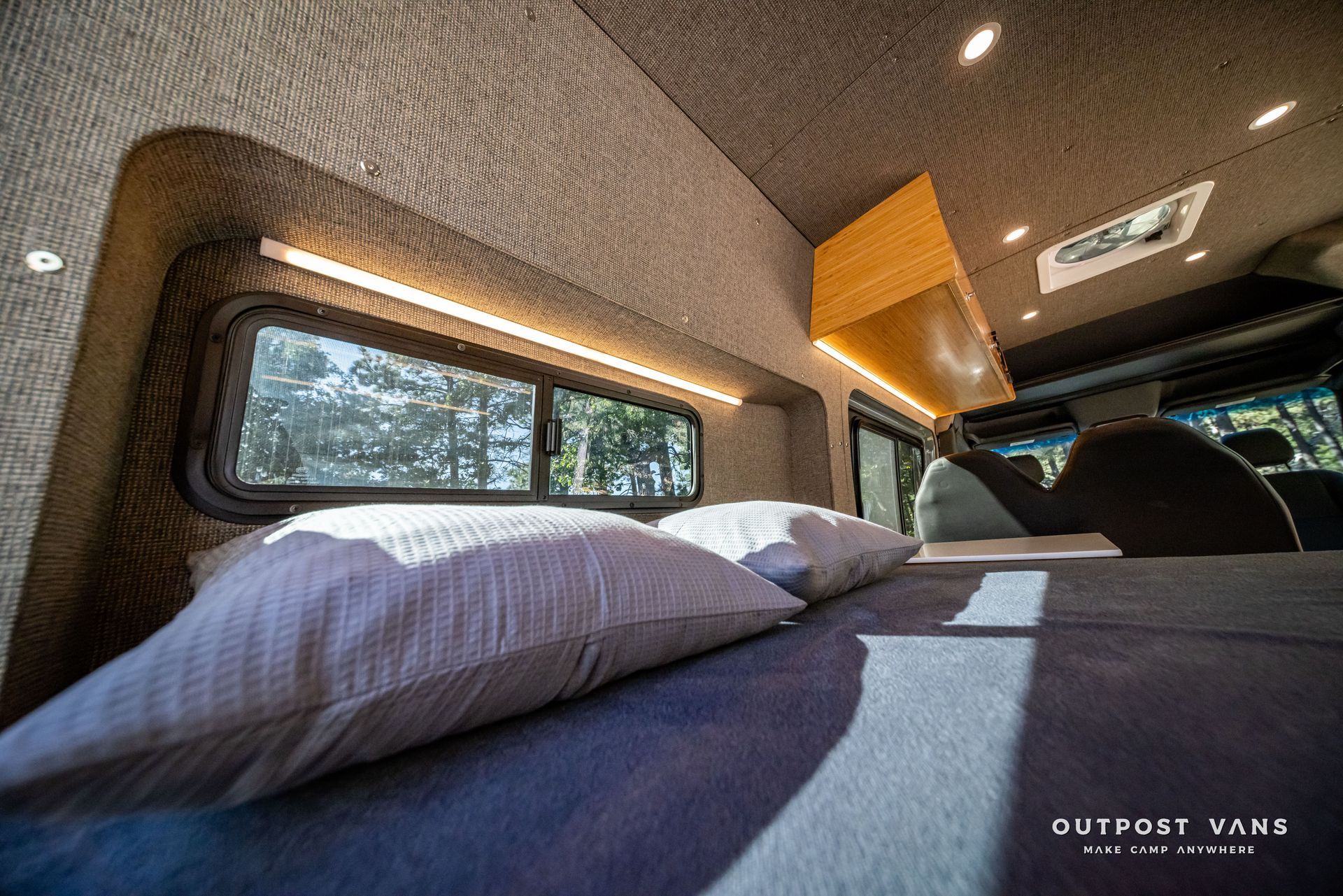

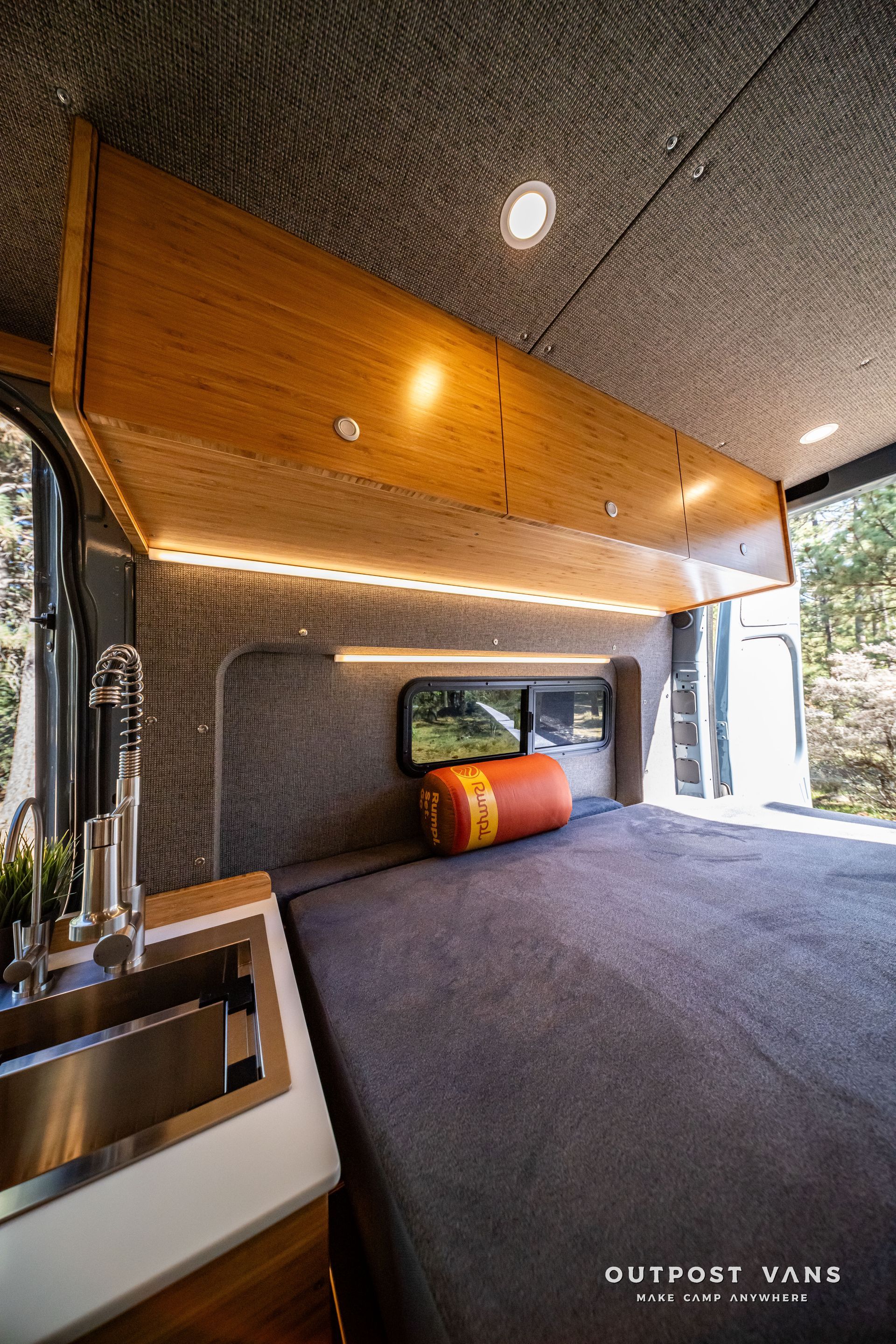

    • QUEEN SIZE BED
    • ROAM REST - CUSTOM DIMENSION MATTRESS (5")

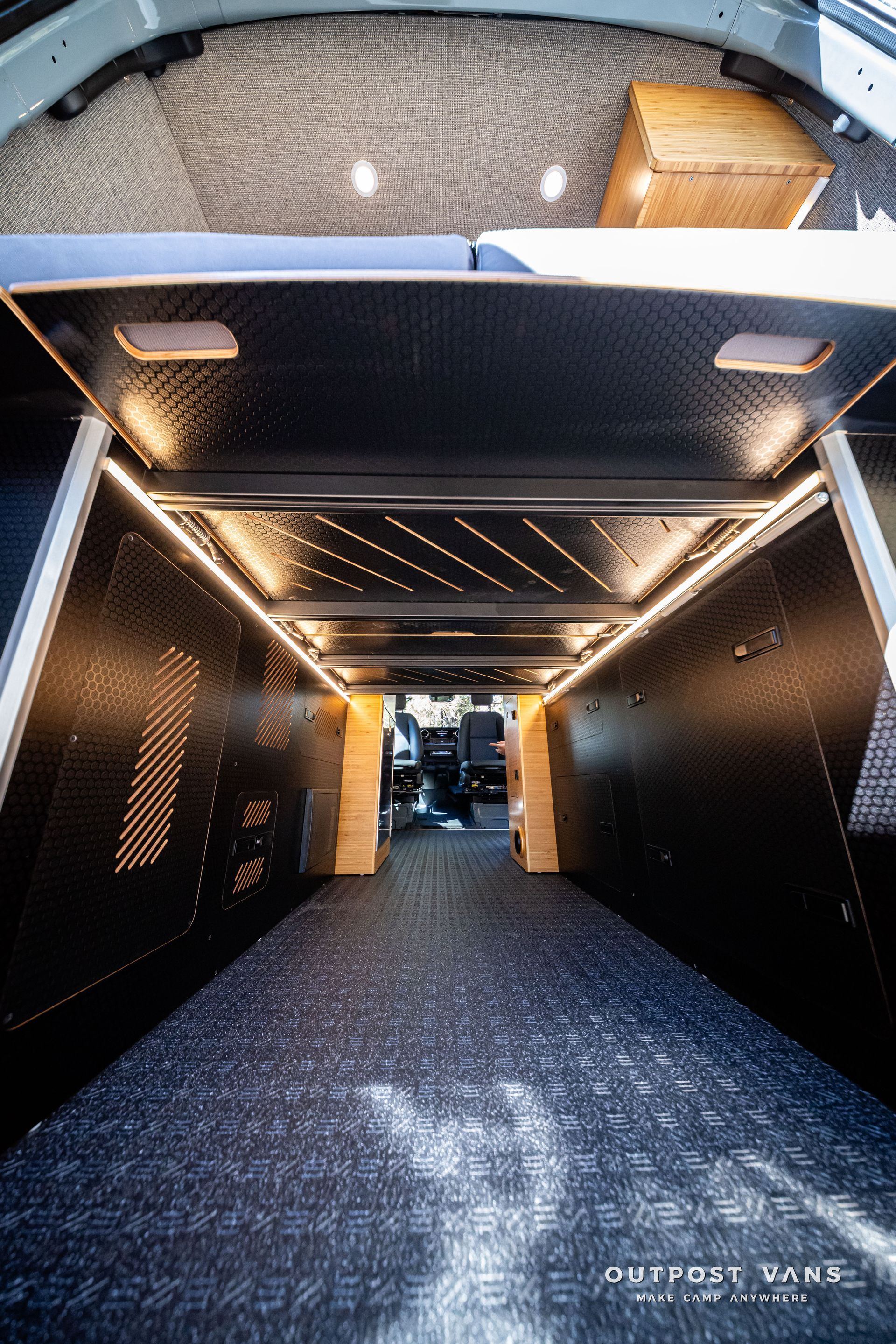

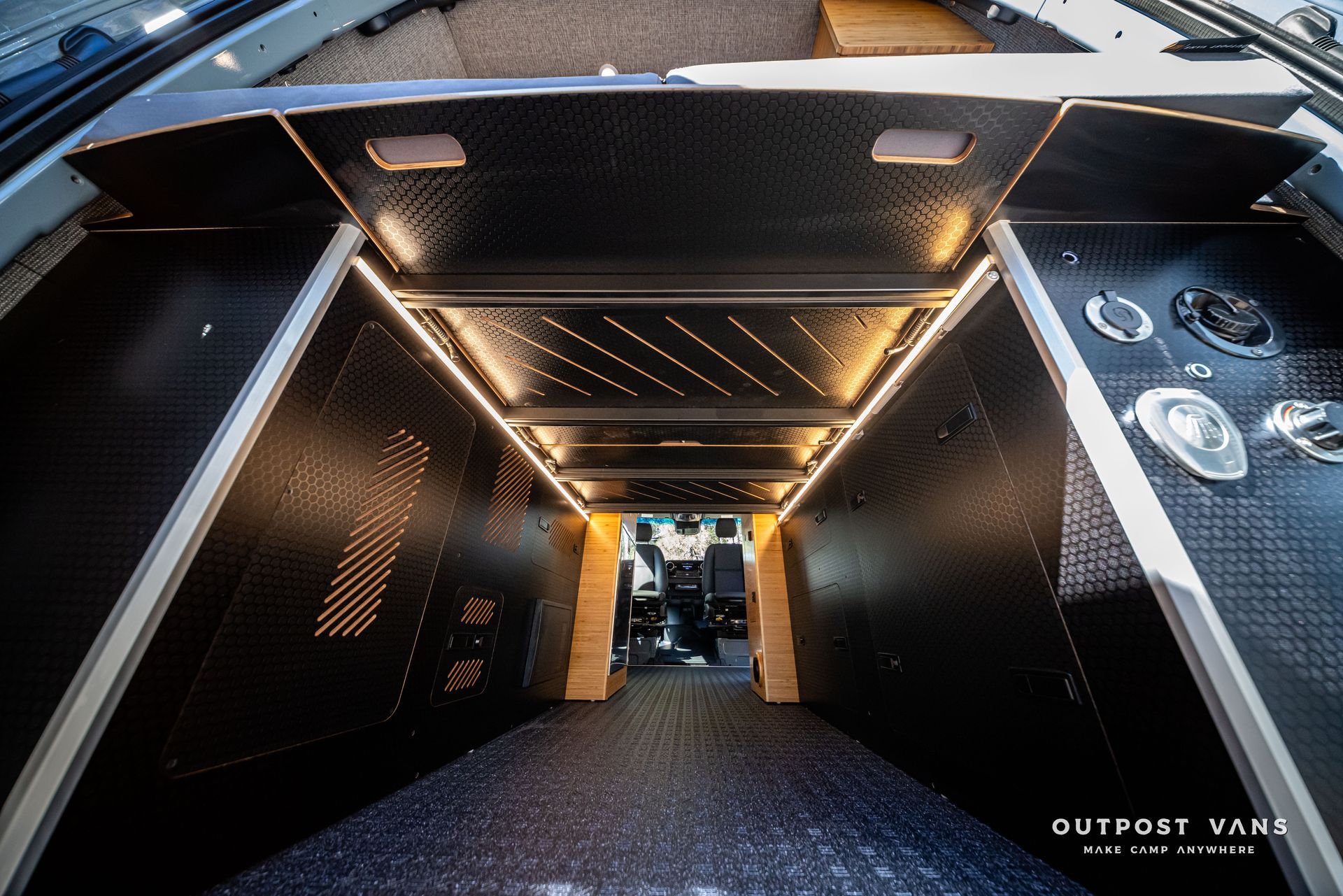

  • REAR / GARAGE

    • DRIVER SIDE GARAGE CABINET FOR ELECTRICAL
    • PASSENGER SIDE GARAGE CABINET FOR PLUMBING
    • ALUMINUM CROSS SUPPORTS
    • OUTDOOR SHOWER SYSTEM
    • GARAGE LED LIGHTING

  • PLUMBING


    • 22 GALLON WHEEL WELL MOULDED FRESH TANK (12V HEATED)

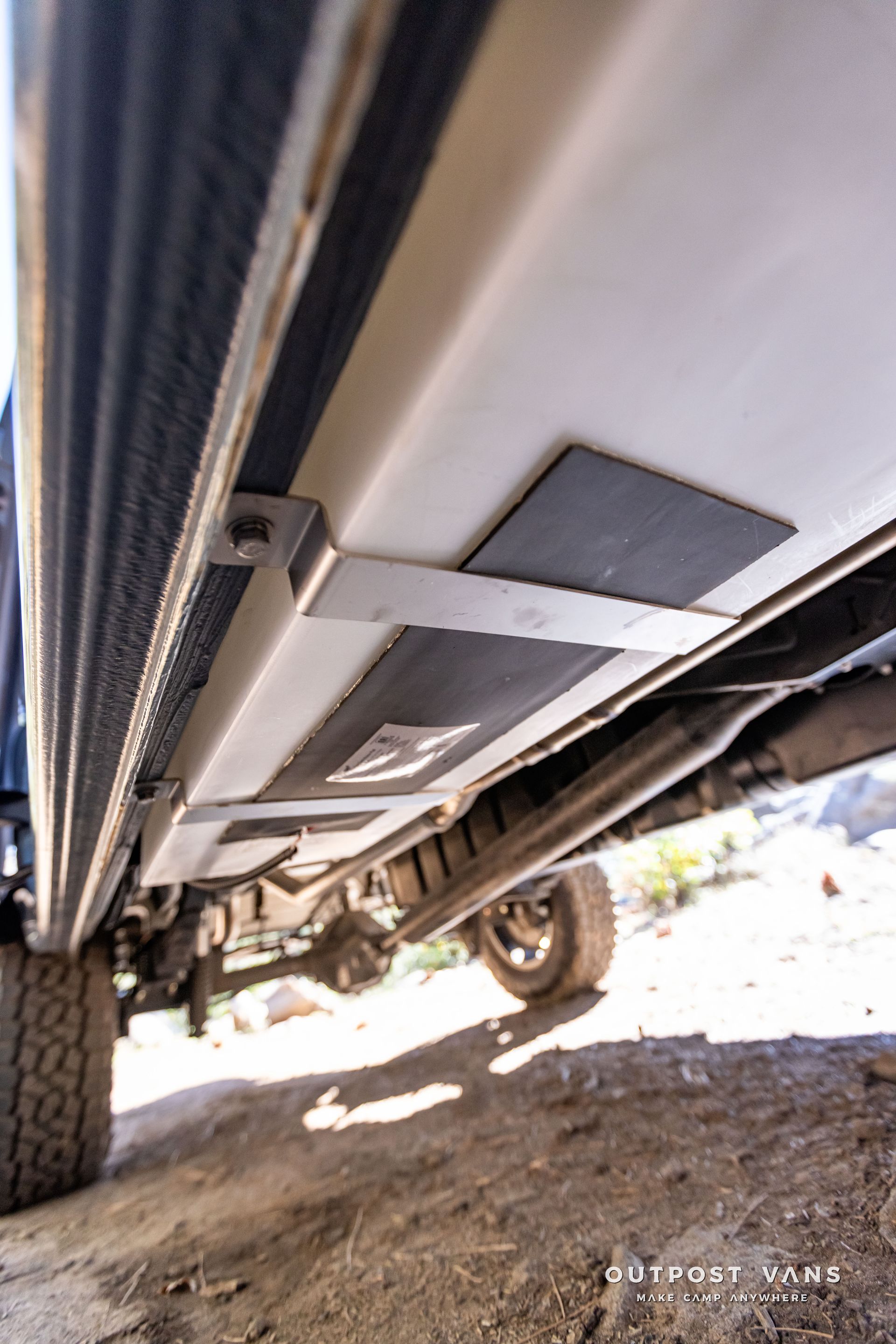

    • 11 GALLON UNDERMOUNTED GREY TANK - PASSENGER SIDE (12V HEATED)
    • 4 GALLON ISOTEMP ELECTRIC HOT WATER HEATER
    • ELECTRONIC DUMP FOR GREY WATER
    • 12V WATER PUMP
    • FRESH WATER GAUGE
    • OUTDOOR SHOWER SYSTEM INCLUDED W/ STAINLESS STEEL FIXTURES & FILL KIT
    • GRAVITY FILL WATER INLET

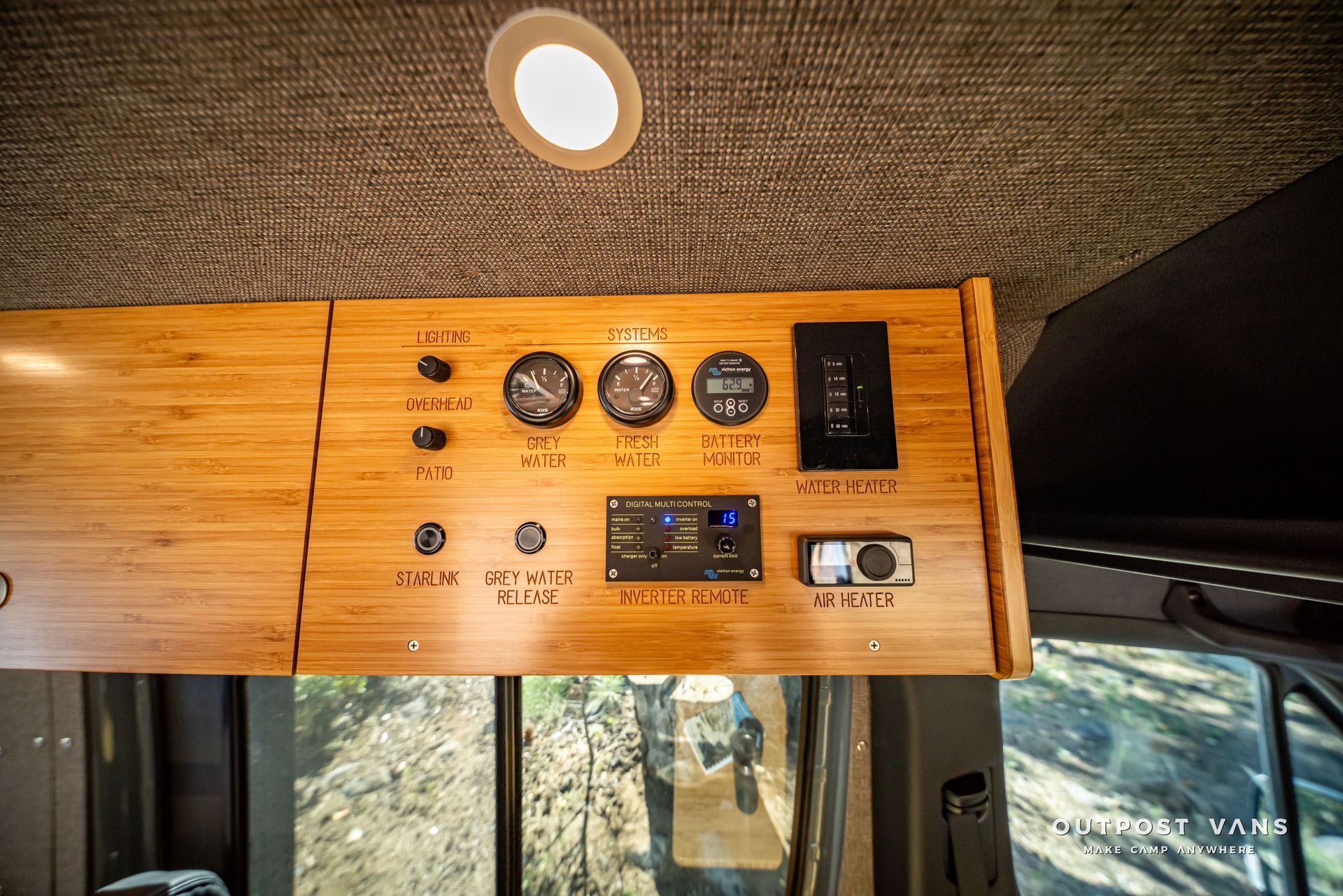

  • SYSTEMS

    • (2) 320AH DAKOTA LITHIUM BATTERIES
    • 3000W MULTIPLUS INVERTER CHARGER
    • VICTRON BMV 712 BATTERY MONITOR
    • VICTRON DIGITAL MULTI CONTROL 200/200A - ALUMINUM FACE
    • VICTRON ENERGY LYNX DISTRIBUTOR
    • SHORE POWER INLET (30 AMP)
    • 50A DC-DC CHARGING
    • (4) 120V OUTLETS THROUGHOUT VAN
    • (3) 12V/USB OUTLETS PLACED THROUGHOUT VAN
    • (2) 100W SOLAR PANEL - RENOGY

CRAG!

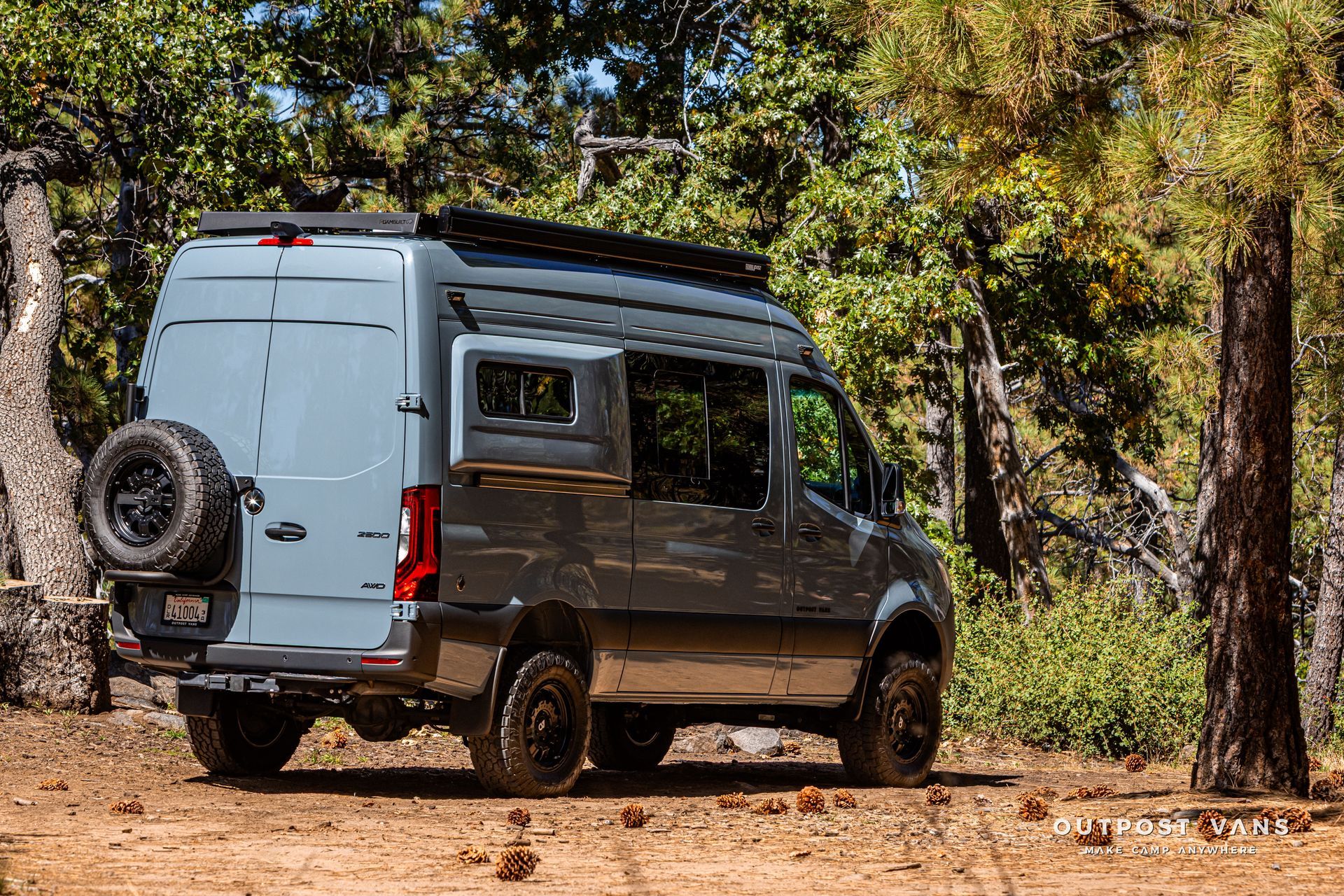

This build is based on our Vector floor plan, created specifically for adventurous families. As one of our top-requested layouts, it strikes the perfect balance of comfort, smart storage, and everyday functionality, all in a streamlined footprint. Whether it’s weekend escapes or extended trips with family and friends, CRAG is ready for the journey.
