VAN SPECS
- VEHICLE AGE 2026
- SPRINTER 144 AWD
EXTERIOR
- Rugged Design Concepts Roof Rack
- Rugged Design Concepts - Skyliner (AC unit Deck)
- 180 Degree Hinges
- Owl Vans - Ladder Tire Carrier
- Owl Vans - B2 Pro Carrier w/ Bike Tubes
- Monster Box 30
- (2) Bike Trays (1Up)
- Owl Vans - Side StepS
- Fiamma F45S Awning

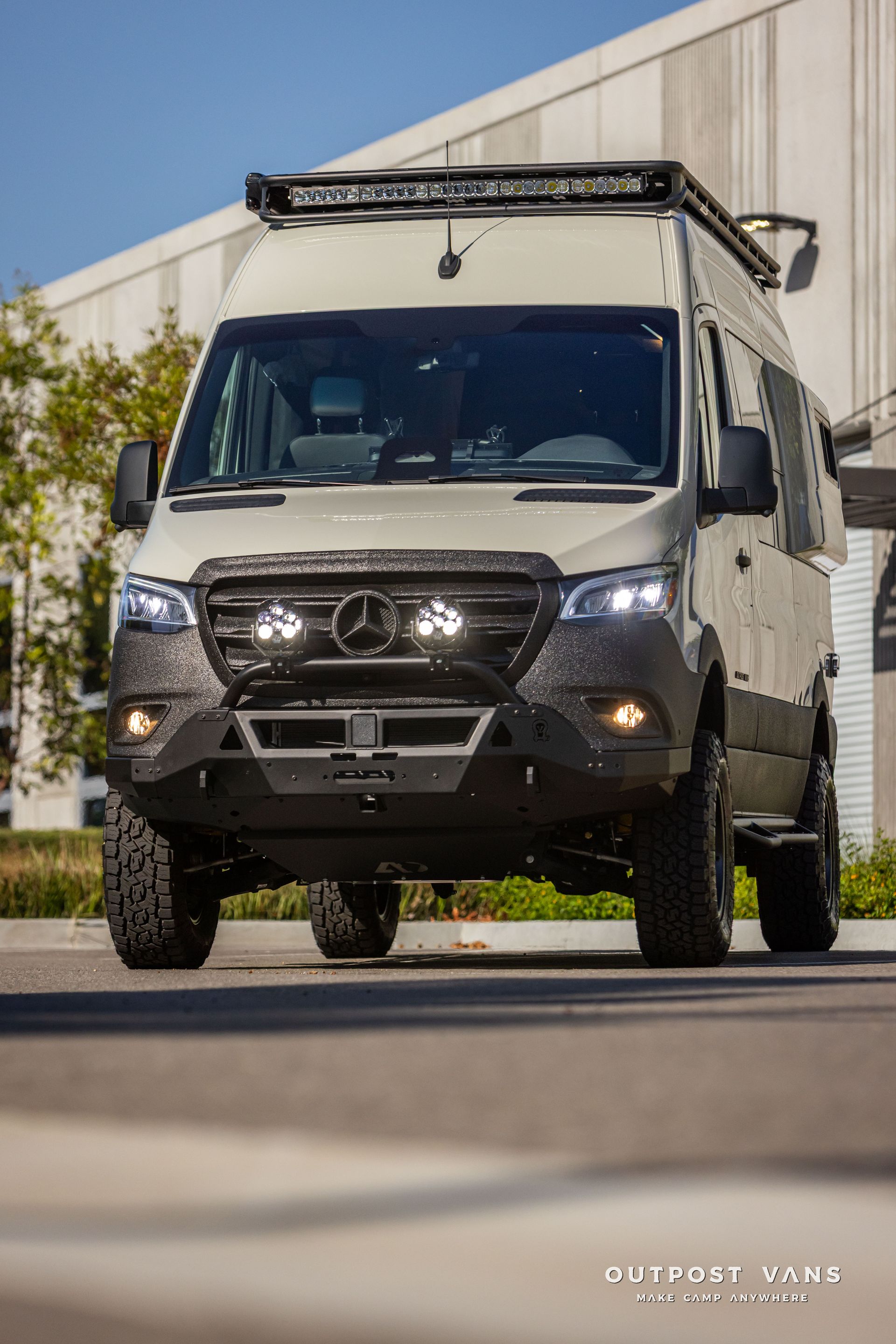

- Owl Vans - Adax Pro Front Bumper w/ Fairlead & Hook
- CATuned Offroad - Rear Bumper
- TerraWagen - Black Slider Door Rail
- Baja Designs 50" Curved Light Bar
- (2) Baja Designs S1 Lights rear mounted on rack
- (2) LP6 Pro - Driving Combo
- (2) Baja Designs S2 - Rear Bumper
- Passenger Side CRL T-Vent
- Driver Side CRL T-Vent
- Flarespace Flares w / Slider Windows
- Starlink Mini - Satalite
- Starlink Mini - Mount for Roof Rack
PERFORMANCE
- Agile Offroad - Ride Improvement Package w/ Fox Shocks, Bilstein Struts, Upgraded Leaf Springs
- Wheel Spacer Kit, Fox Shocks, Bilstein Strut w/ Coil, 5400 lb Leaf Springs, Double Shear Bracket Kit
- No Rub Fender Kit - Front
- No Rub Fender Kit - Rear
- AOR - Slider Door Spacer Kit

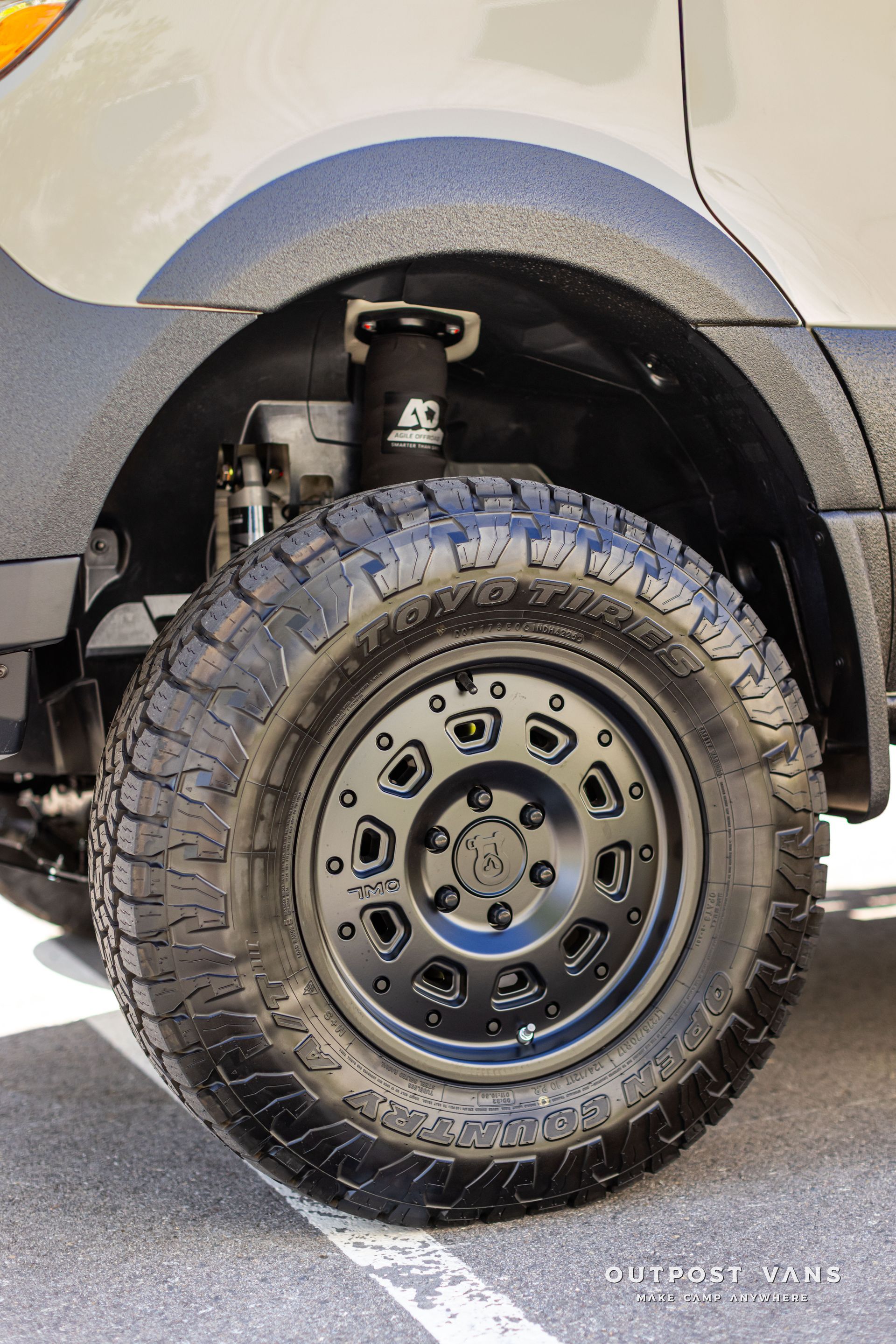

- Aftermarket Alloy Wheel Package - OWL TALON 17" Wheels
- All Terrain Tire Package - Toyo Open Country ATIII
- ARB - Onboard Air Kit
- AOR - Engine Skid Plate
- AOR - Rear Differential Cover
LIVING ROOM
- Outpost Vans Marine-Grade Upholstered Panel Kit
- Kit Includes: Ceiling, Walls, Door, and Trim Panels
- Sprinter Pillar Trim Kit
HVAC
- ELITE INSULATION PACKAGE (3 STAGE)
- SOUND CONTROL SPRAY-ON SOUND DEADENER (STAGE 1)
- CERAMIC THERMAL INSULATION SPRAY (STAGE 2)
- 3M THINSULATE ACOUSTIC/THERMAL INSULATION IN WALLS, CEILING, BEHIND PANELS, ALL VOIDS OF VAN (STAGE 3)

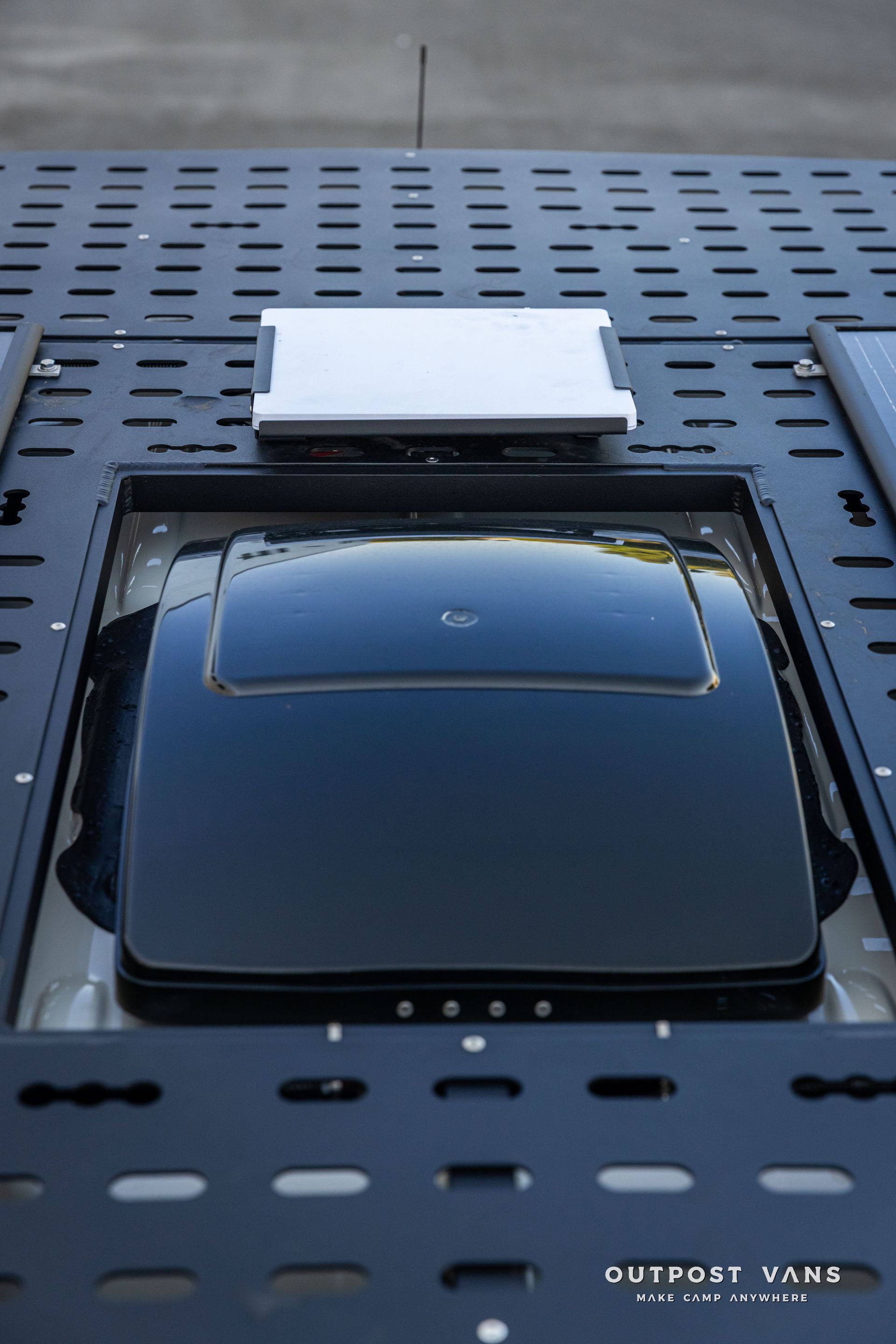

- Maxxair 7500K (Black)

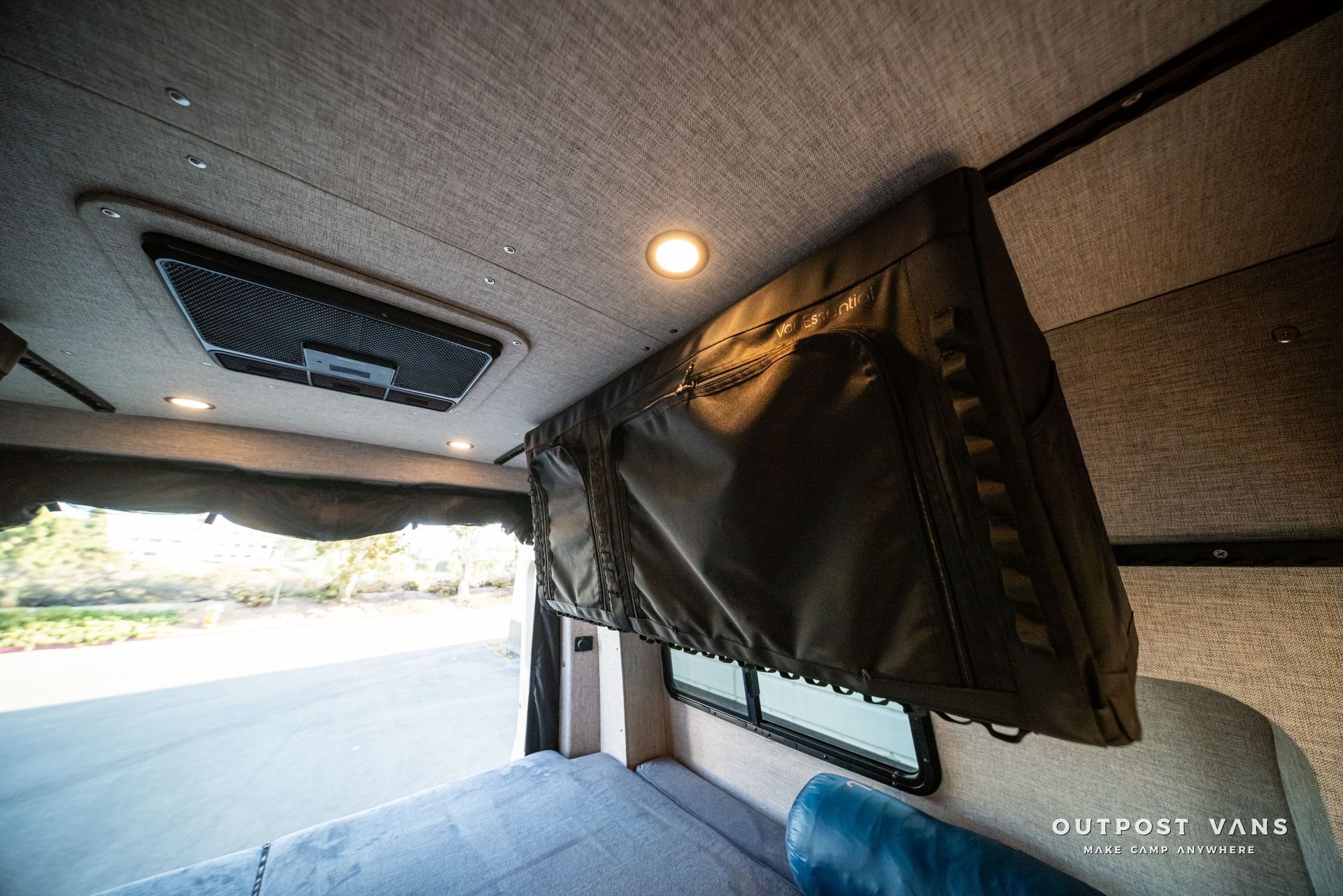

- 12V Roof Mounted AC Unit (Dometic RTX2000)
- Espar 12V Diesel Heater with High Altitude Kit for Sprinter
KITCHEN
- Custom Lower Cabinetry Package
- Lower Refrigerator Cabinet w/ Countertop
- Galley Cabinet w/ Stainless Sink
- Single Induction Cooktop (stored in drawer bank)

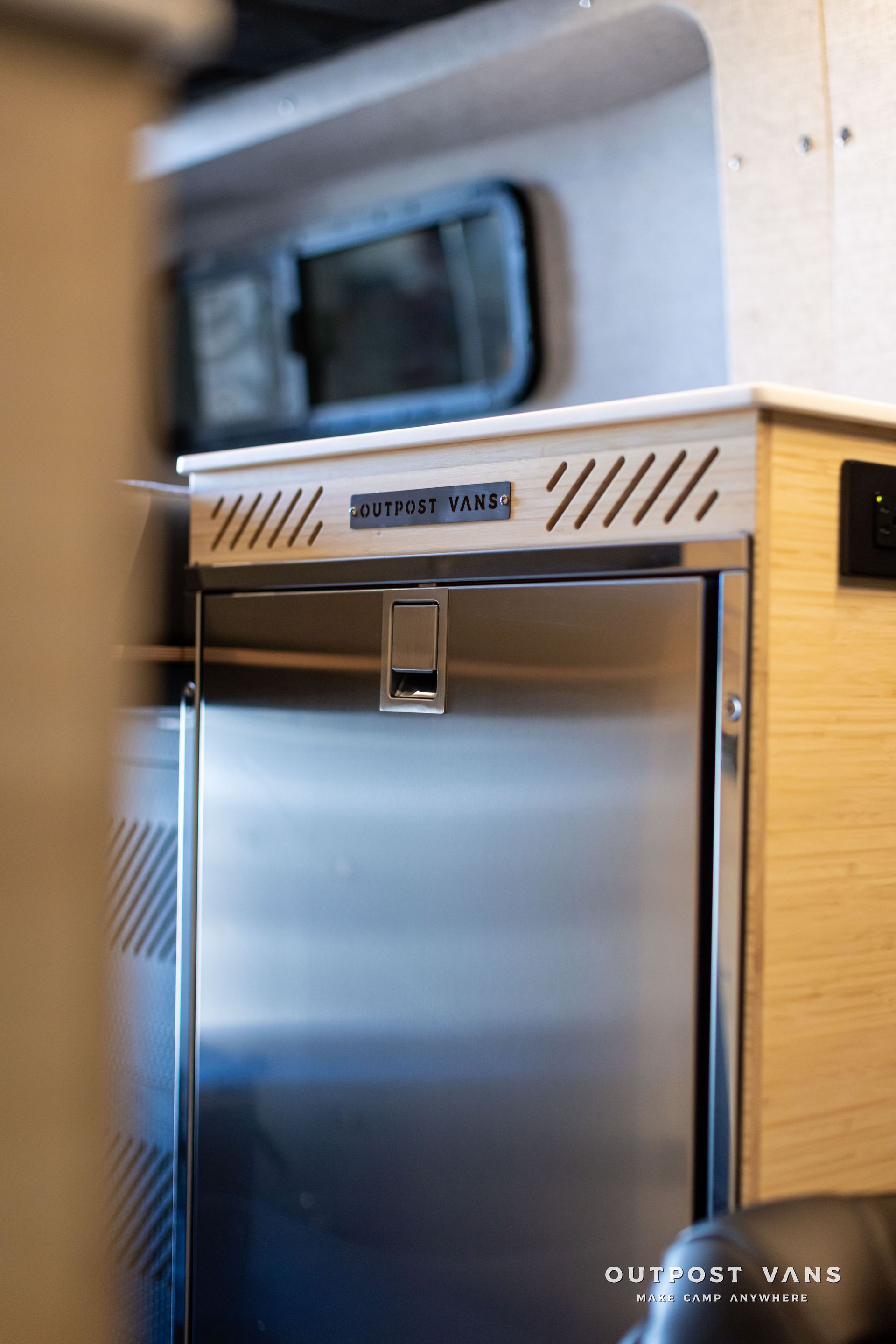

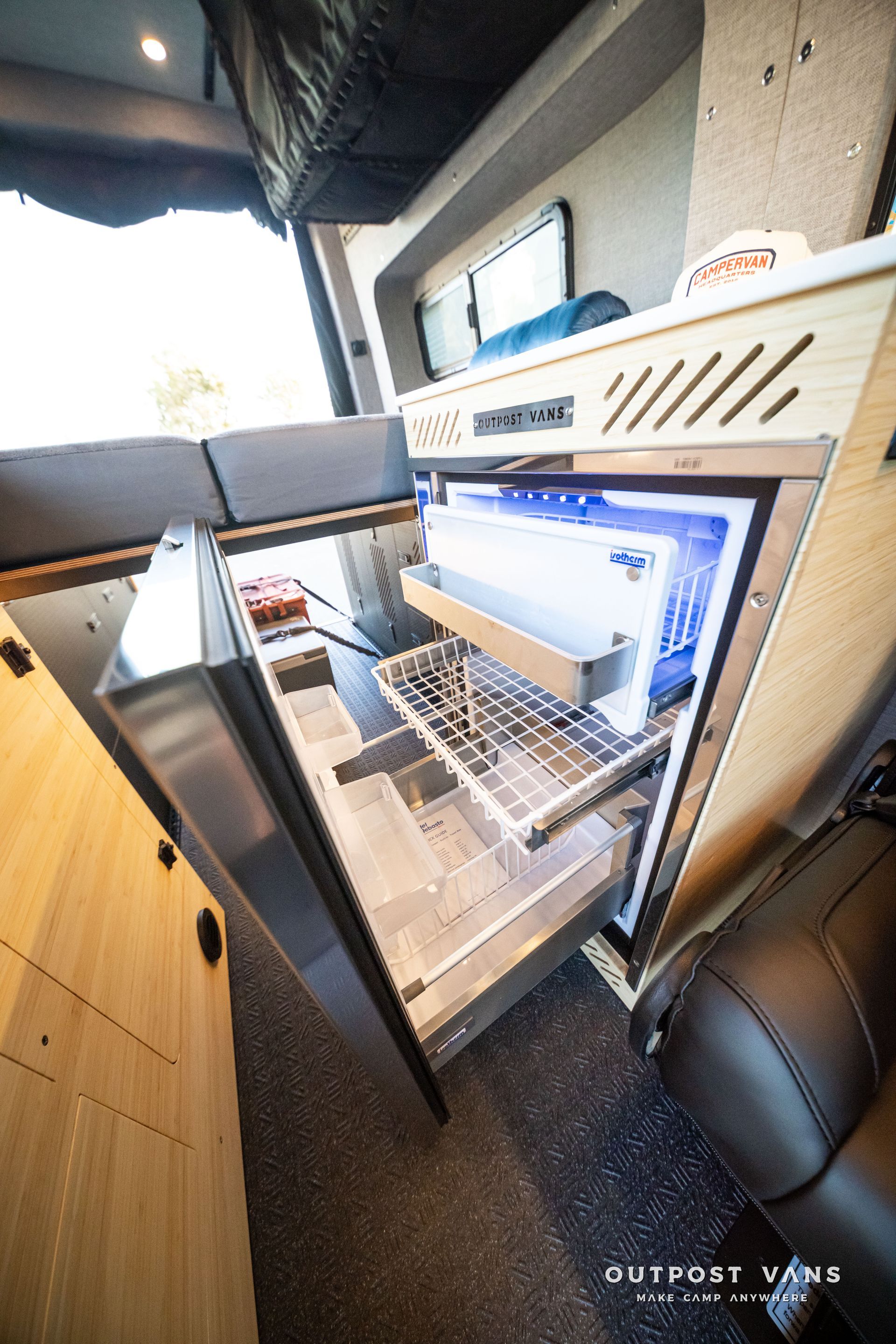

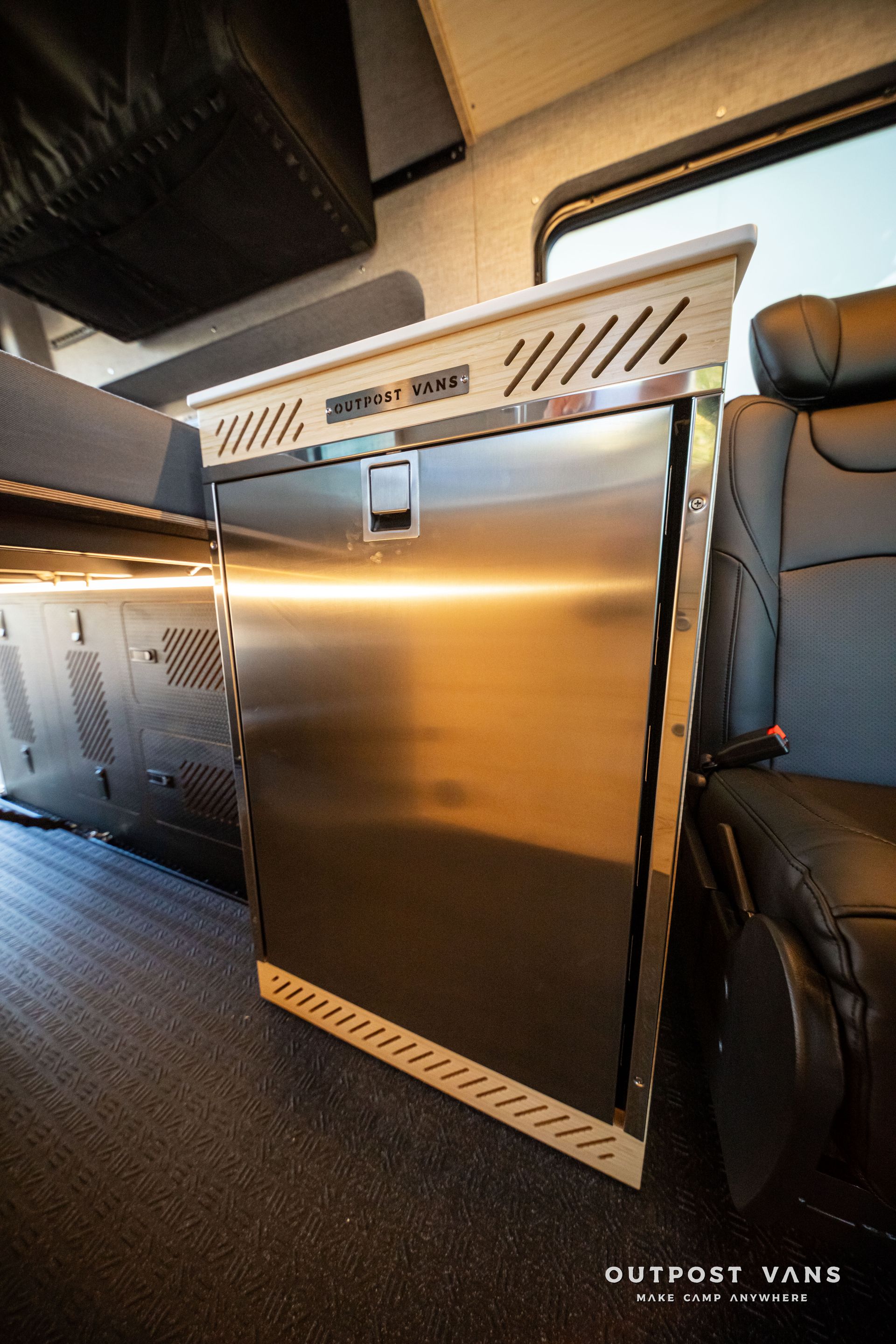

- Isotherm - Stainless Steel 130L Refrigerator
- Constructions: Natural Bamboo
- Countertop: Solid Surface
- Lagun Table
BEDEROOM
- Outpost Vans - Fixed bed system / utility cabinets
- Custom-dimension cushion set - 5"
- Insulated window cover package
- Bug screen package
PLUMBING
- 28 Gallon Fresh Water System w/ 4 Gallon Electric Water Heater
- Flush Floor-Mounted Stainless Steel Shower Pan
- Stainless Steel Shower Nozzle and Mixer
- Custom Waterproof Shower Curtain + Mounting Hardware
- HDPE Shower Mat
- InHabit Floor Mat Cover - InHabit NOIR
- 35 Gallon Factory Spare Location Fresh Tank (Heated)
- 22 Gallon Undermounted Grey Tank (Heated)
- 4 Gallon Electric Water Heater
- Electronic Dump for Grey Water
- 12V Water Pump
- Drinking Water Faucet
- Carbon & UV Water Filter
- Fresh Water Gauge
- Outdoor Shower System Included w/ Stainless Steel Fixtures & Fill Kit
- City Water Fill
GARAGE
- OUTPOST VANS Integrated Garage Utility Cabinets / Bed System (Cabinet Height: ~30")
- Custom Dimension Mattress - 5"
- Custom Electrical Utility Cabinet w/ LED Lighting
- Custom Plumbing Cabinet w/ Rear Shower Fixtures and LED Garage Lighting
- Trelino Toilet (store in garage) EVO S
SYSTEMS
- (1) 640AH Lithium Battery
- VICTRON MULTIPLUS 3000W Multiplus Inverter Charger
- Shore Power Inlet (30 amp)
- VICTRON SMART SOLAR MPPT
- (120V Outlets throughout van
- 12V/USB outlets placed throughout van -
- Touch Screen Power Control Unit
- (2) Dometic 100W Obsidian Panels
- Switch-Pros Switch Panel
- Dual Alternator Charger for Sprinter (280A)
- IO Pedal - High Idle Module
- HOUSE TO START TRICKLE CHARGER
LAUNCH
A compact Sprinter 144 AWD with full off-grid capability and a hidden interior shower.

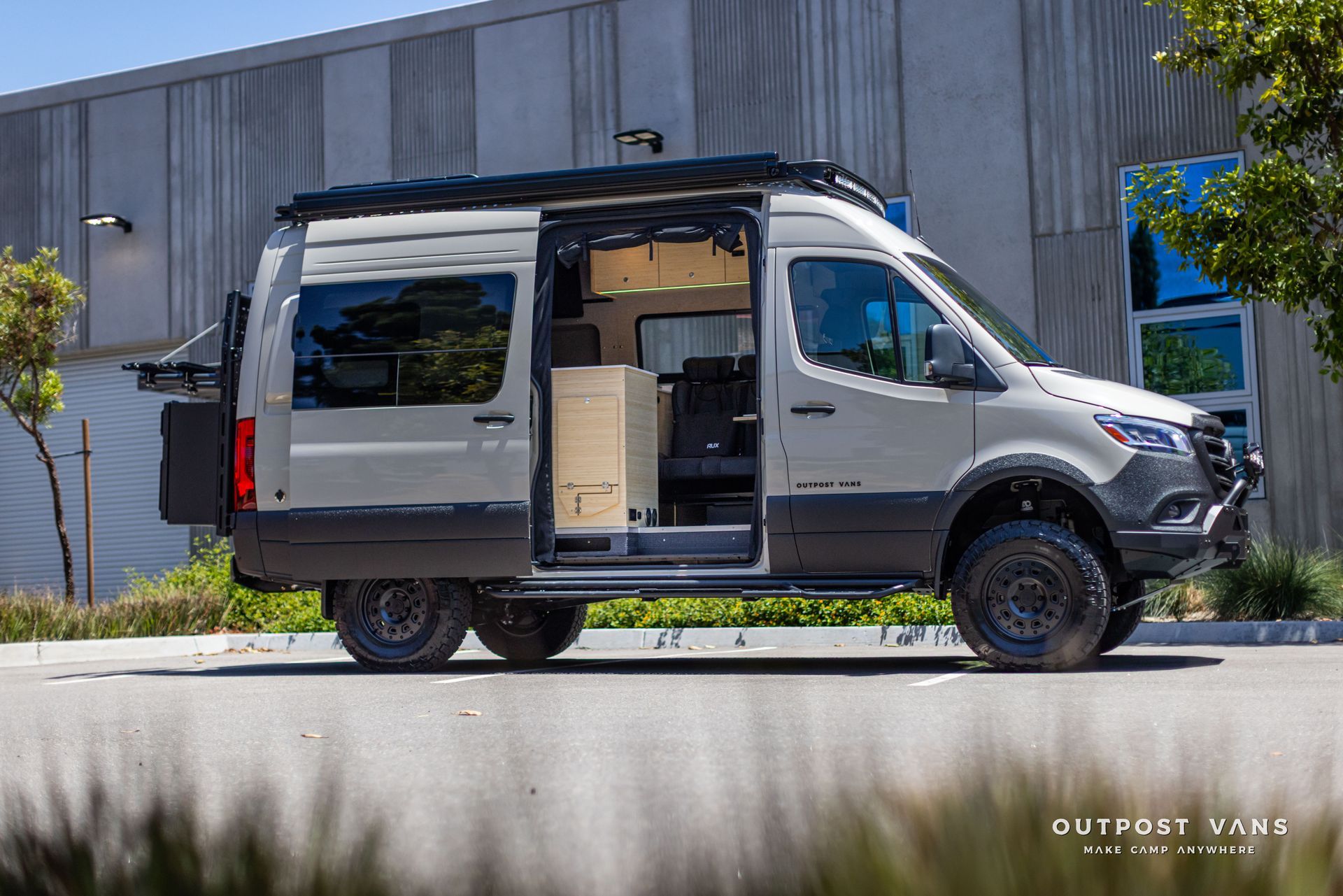

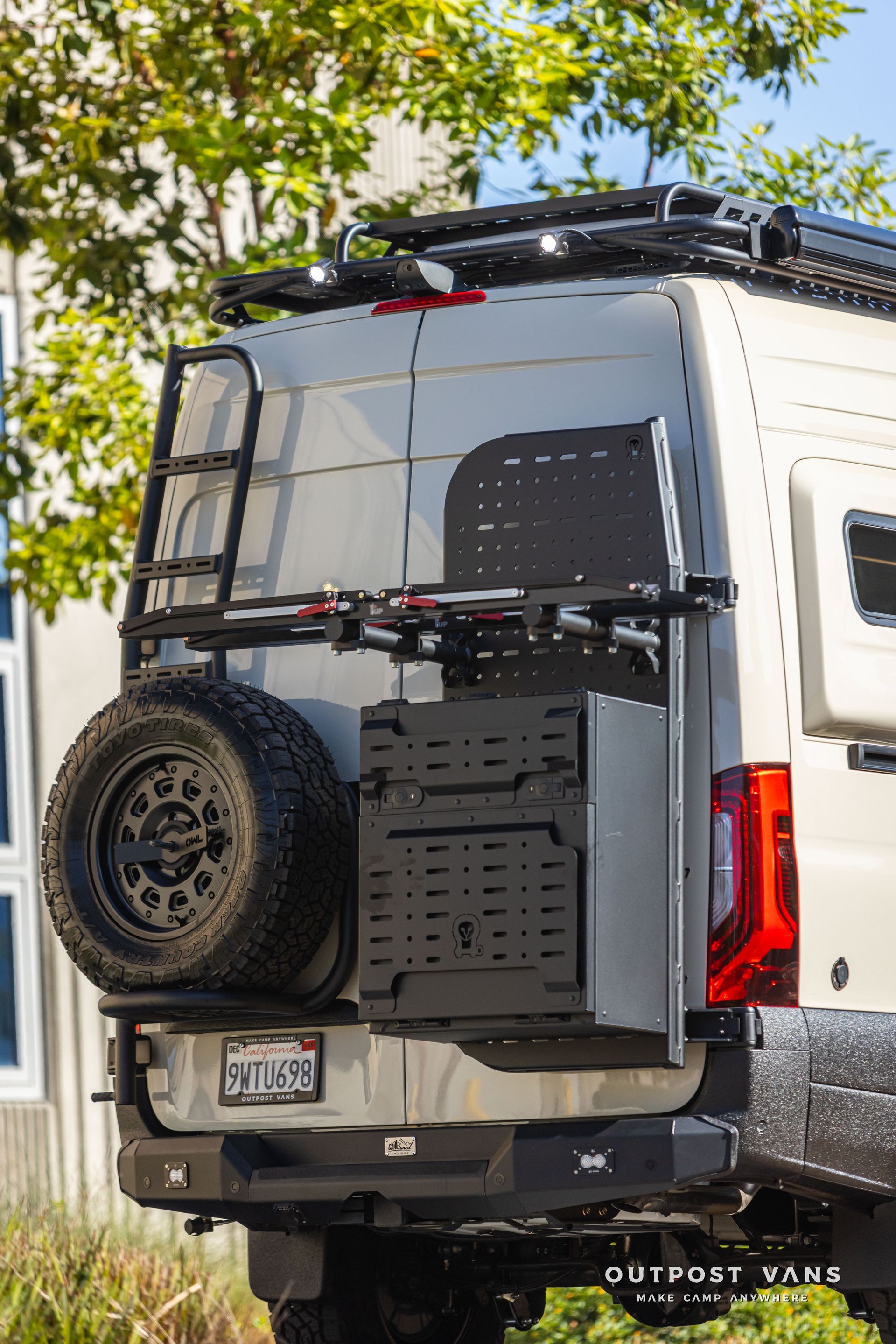

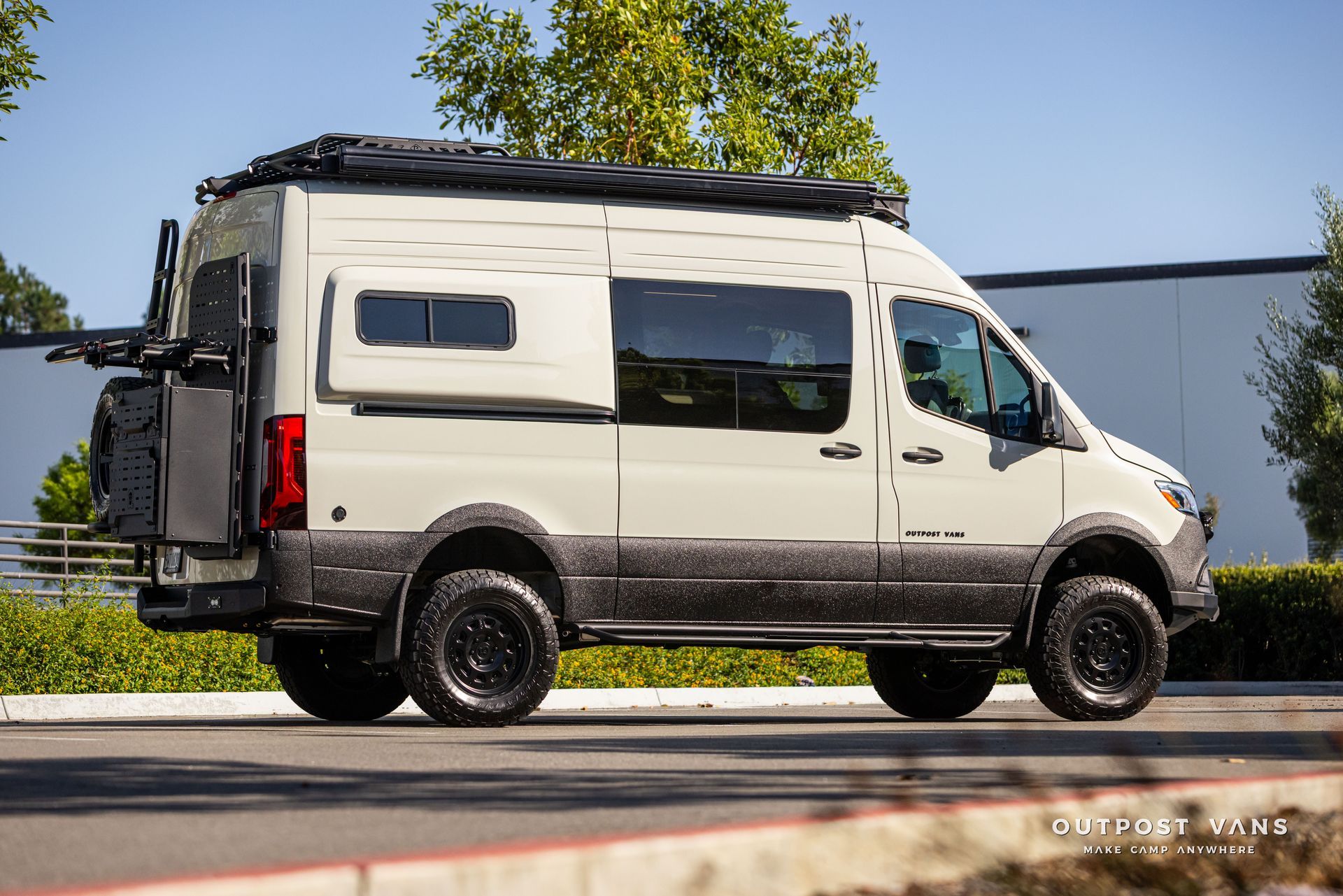

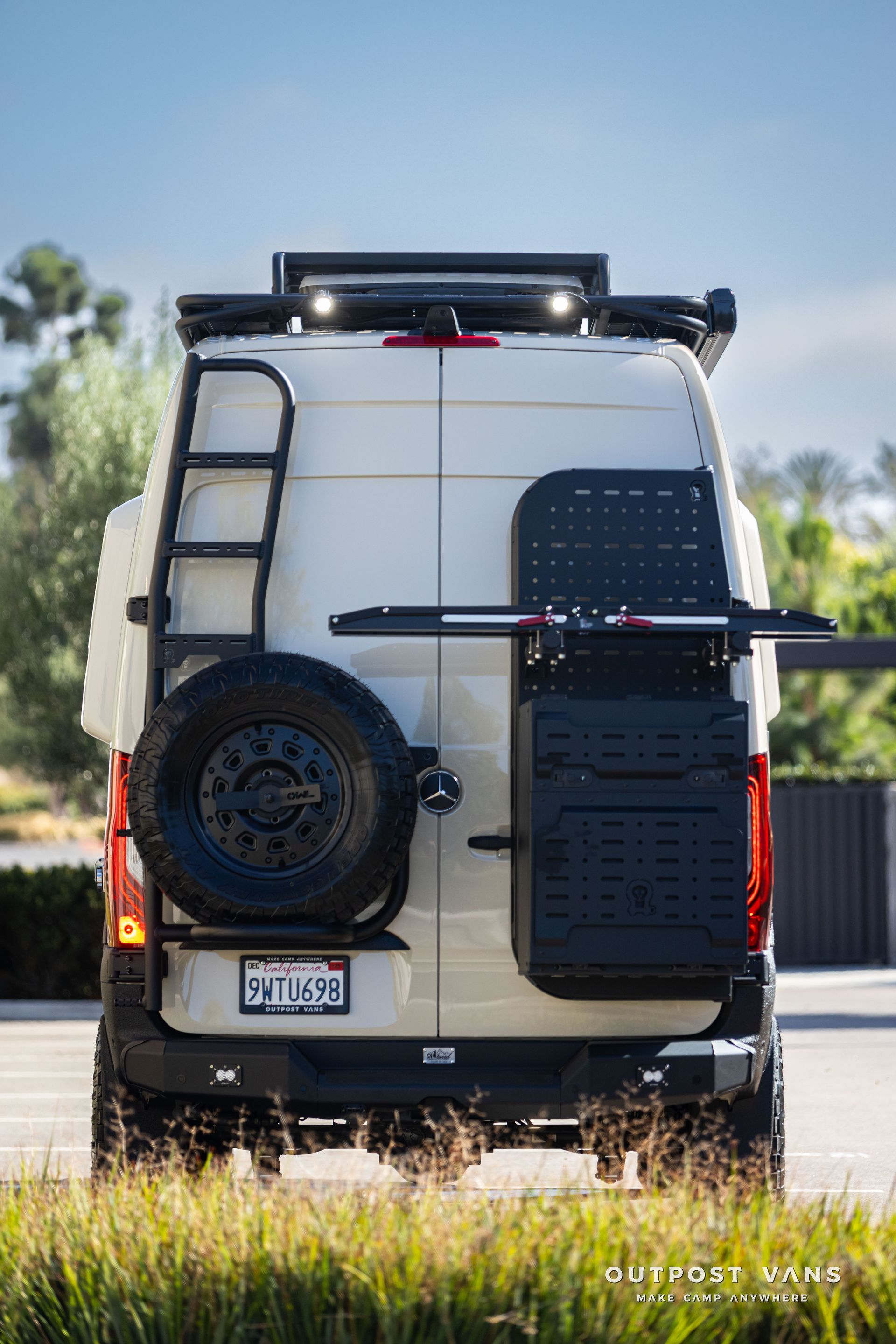

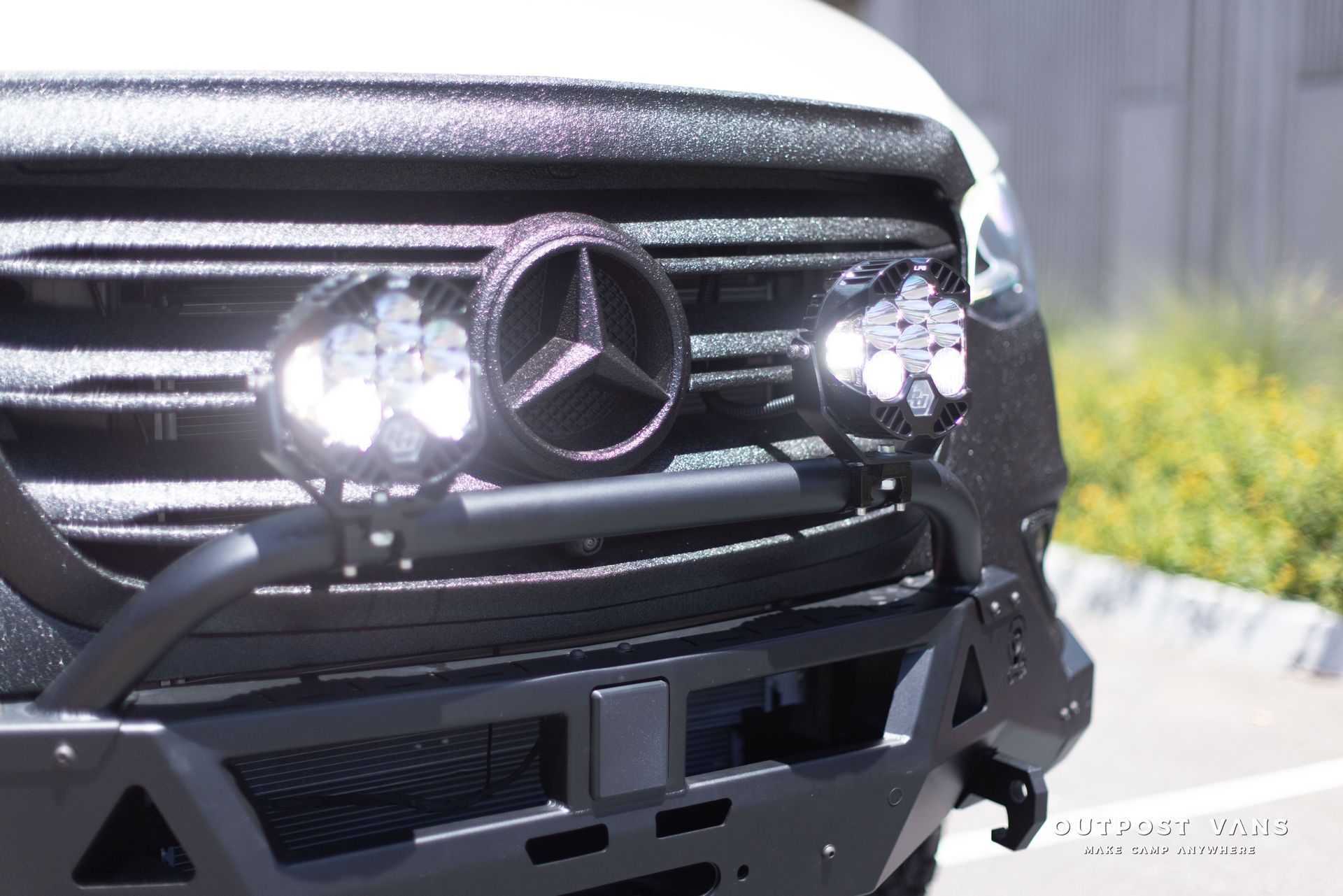

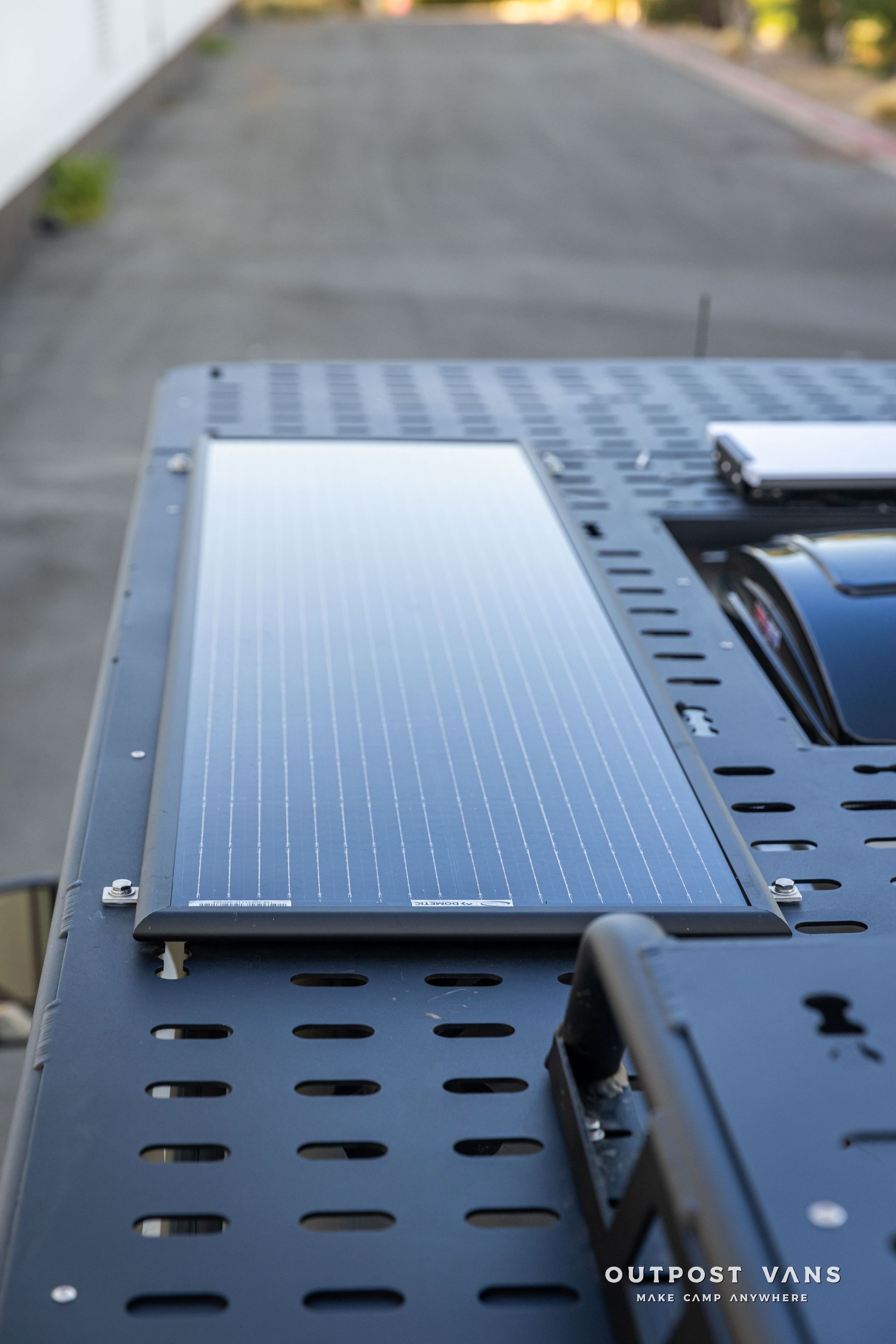

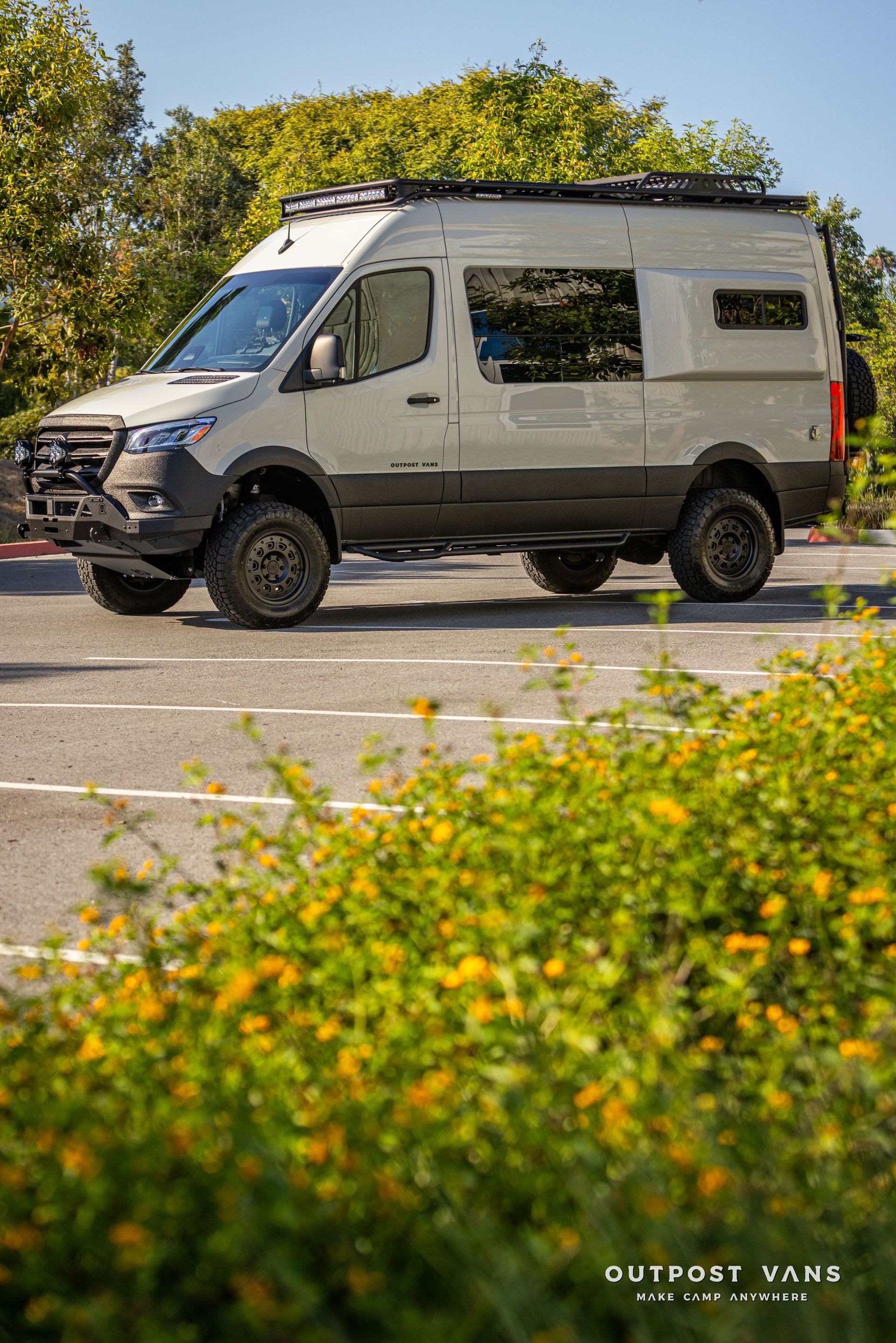

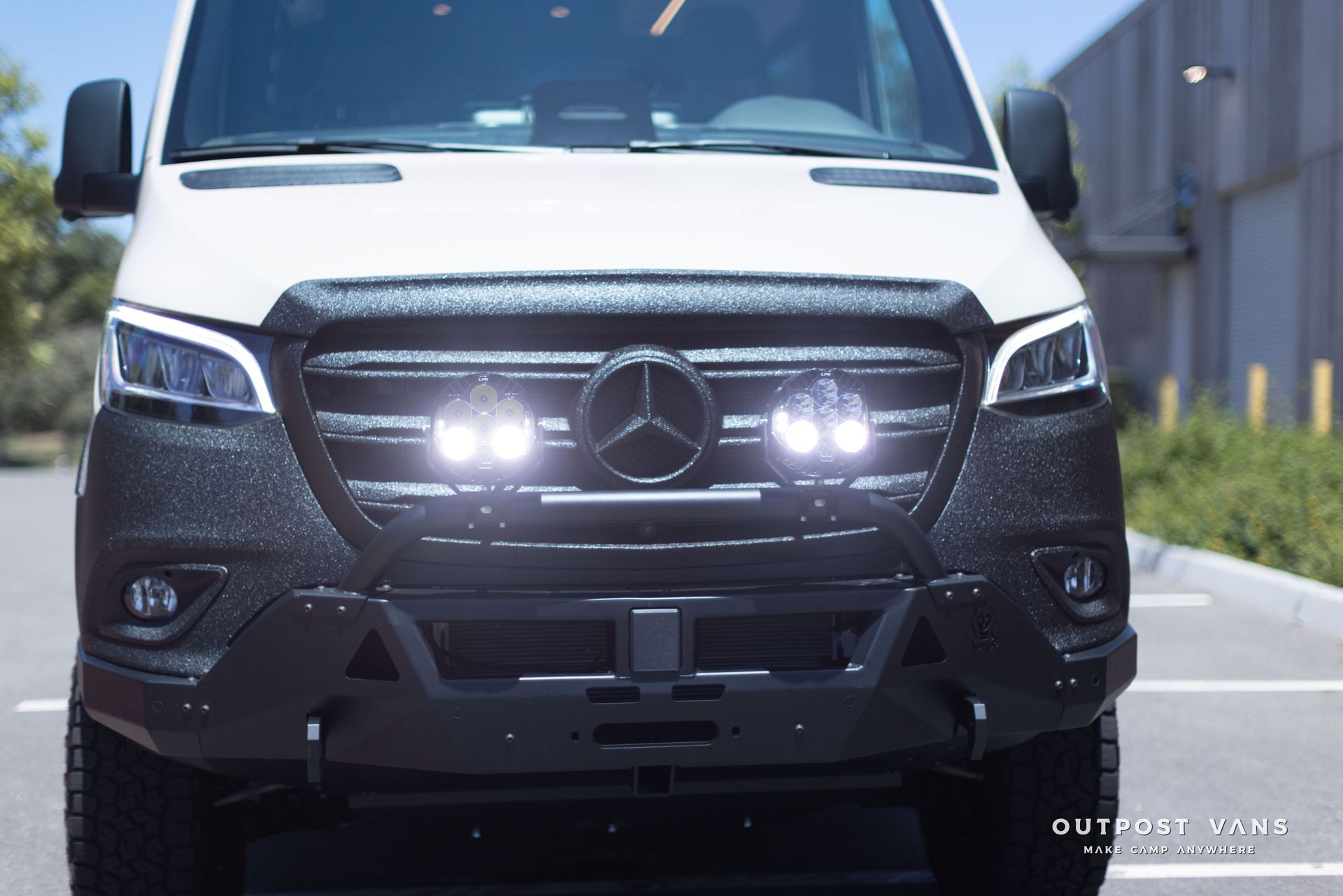

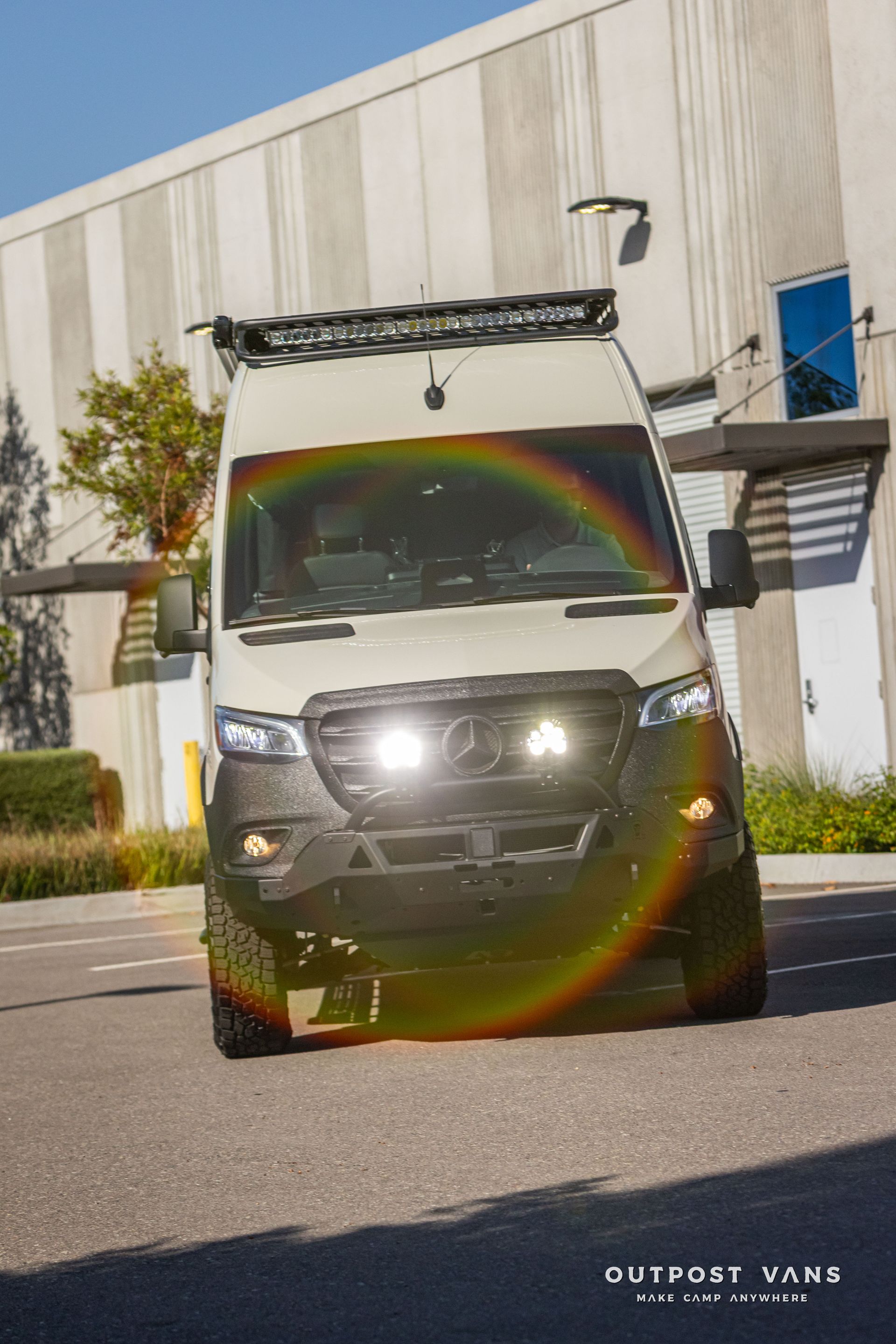

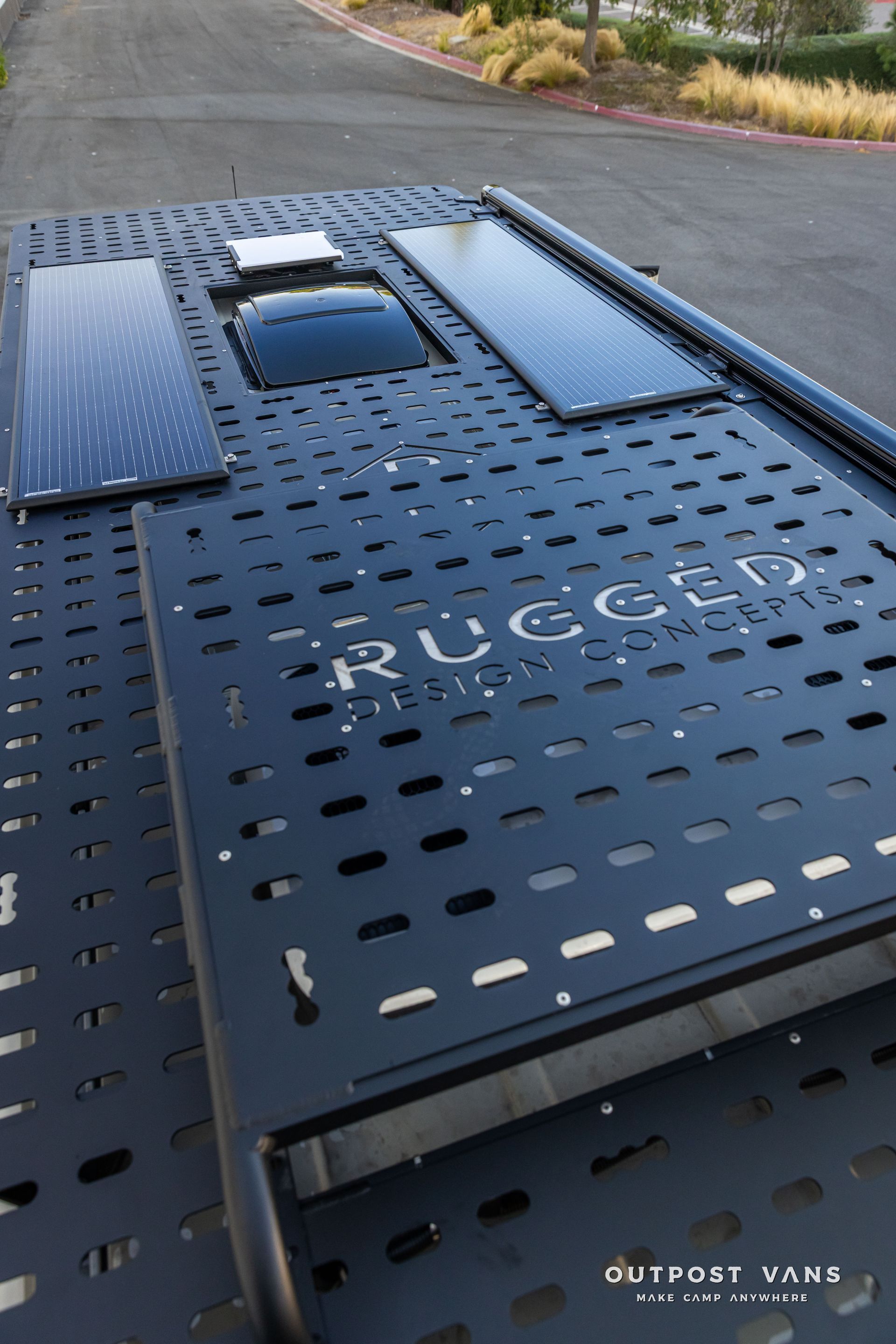

Built on a Pebble Grey Sprinter 144 AWD with UV Black Line-X trim, Launch pairs real backcountry capability with a van that still parks easily. An Agile Offroad ride improvement package smooths out rough terrain on Owl Talon wheels and Toyo AT III tires. An Owl Vans Adax Pro front bumper, a CATuned rear bumper, and onboard air make it trail-ready. A Rugged Design Concepts roof rack carries solar, Starlink, and a 50" Baja Designs light bar, with a Fiamma awning for instant shade. Out back, Owl Vans carriers hold the spare, a Monster Box, and two 1Up bike trays.

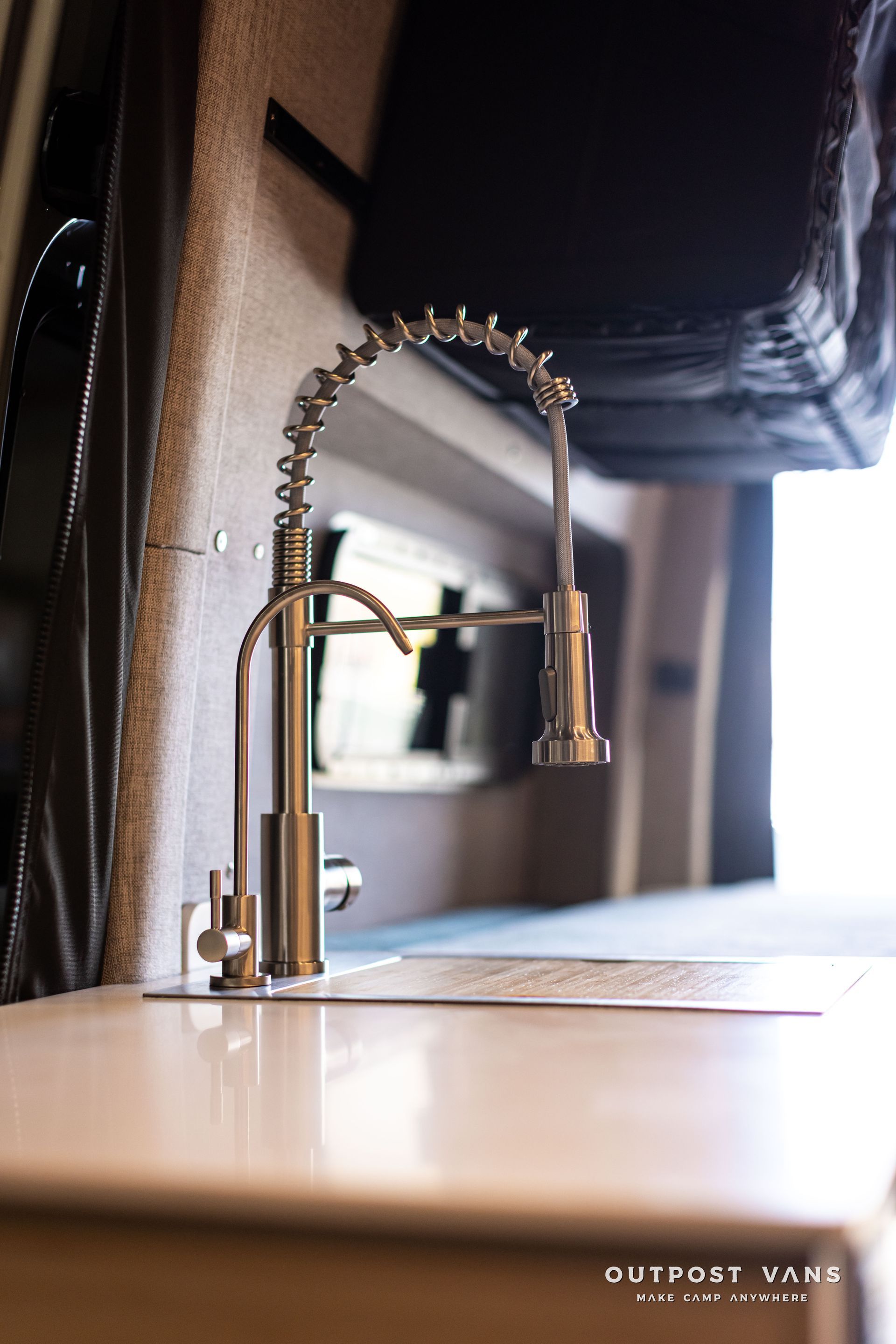

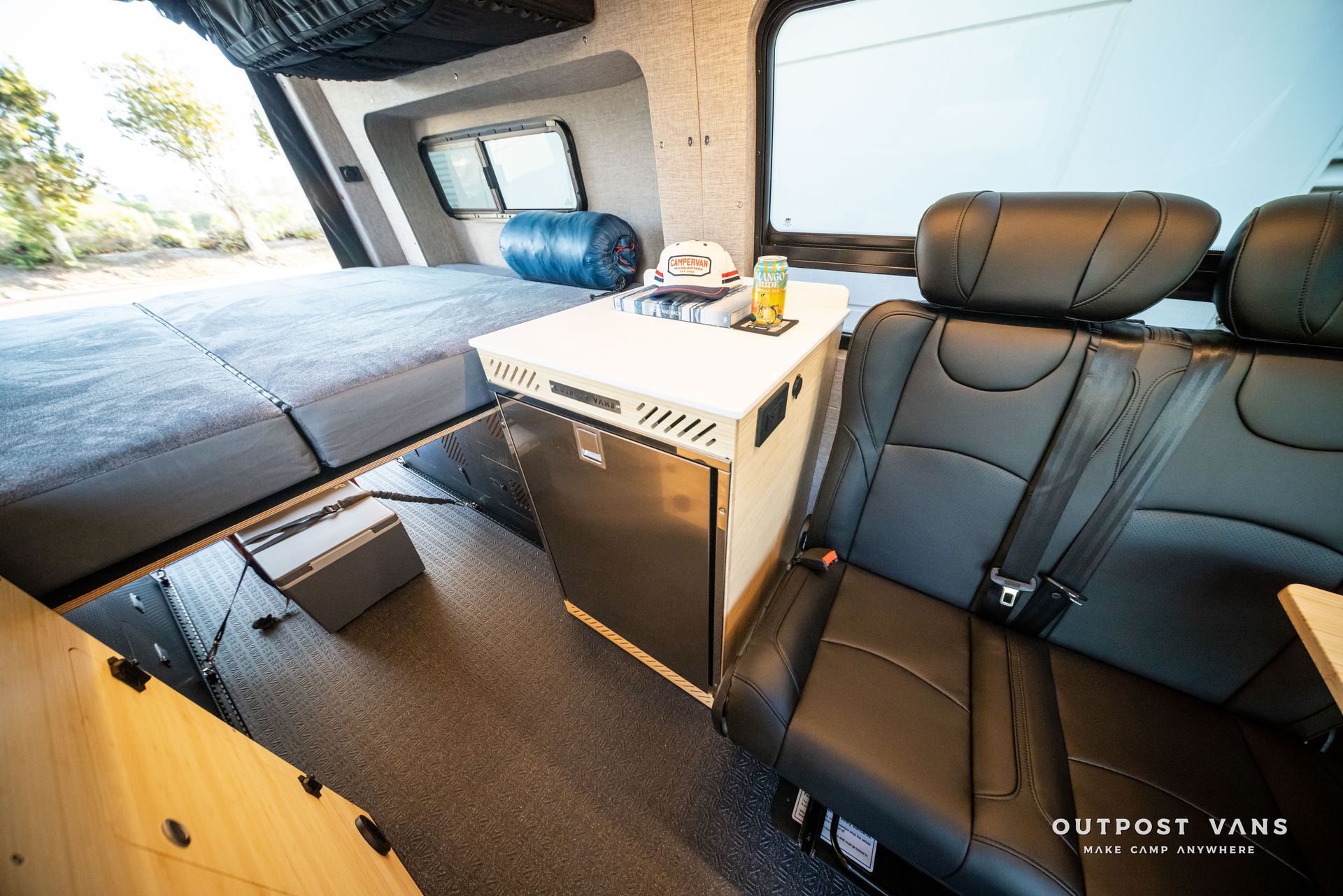

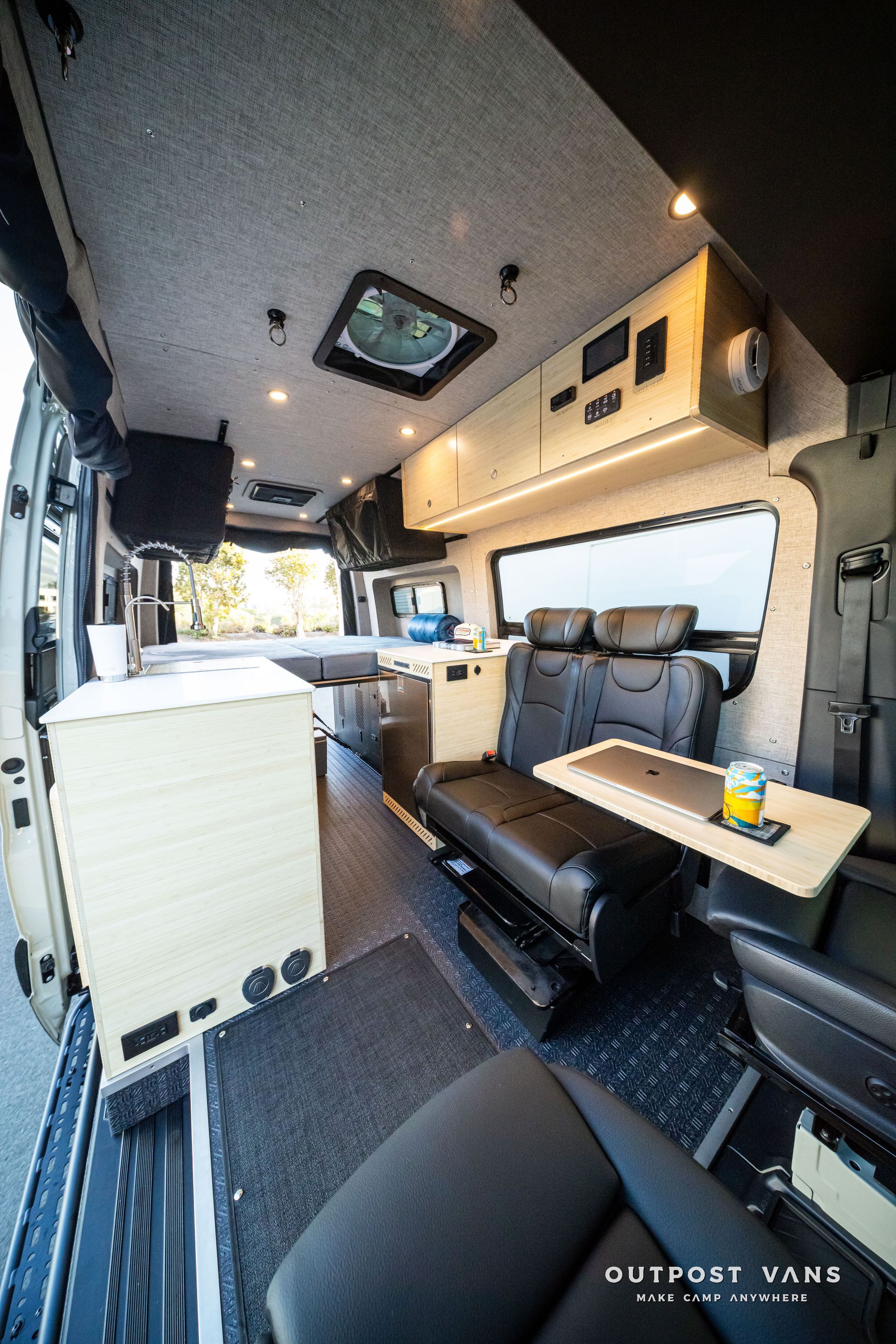

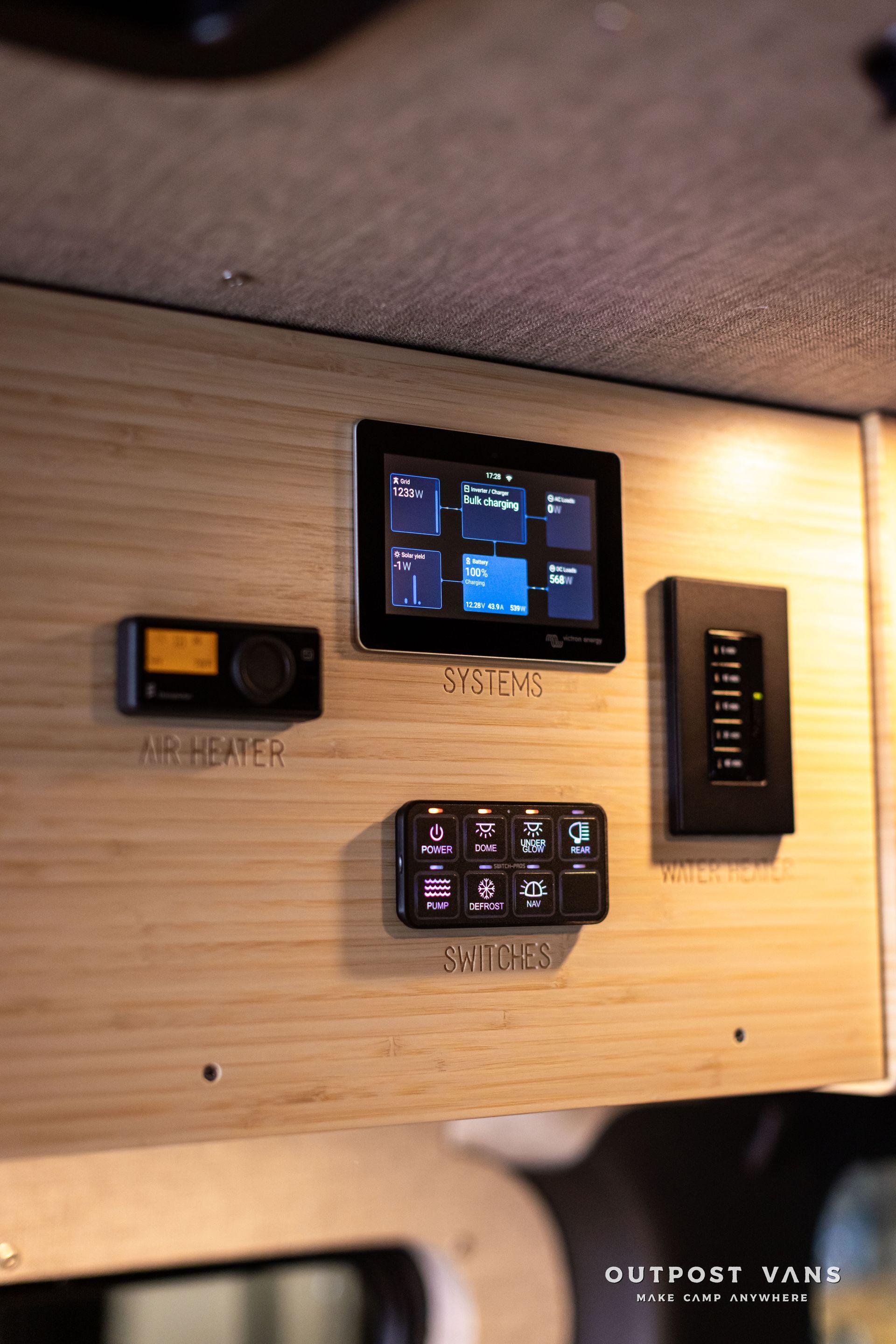

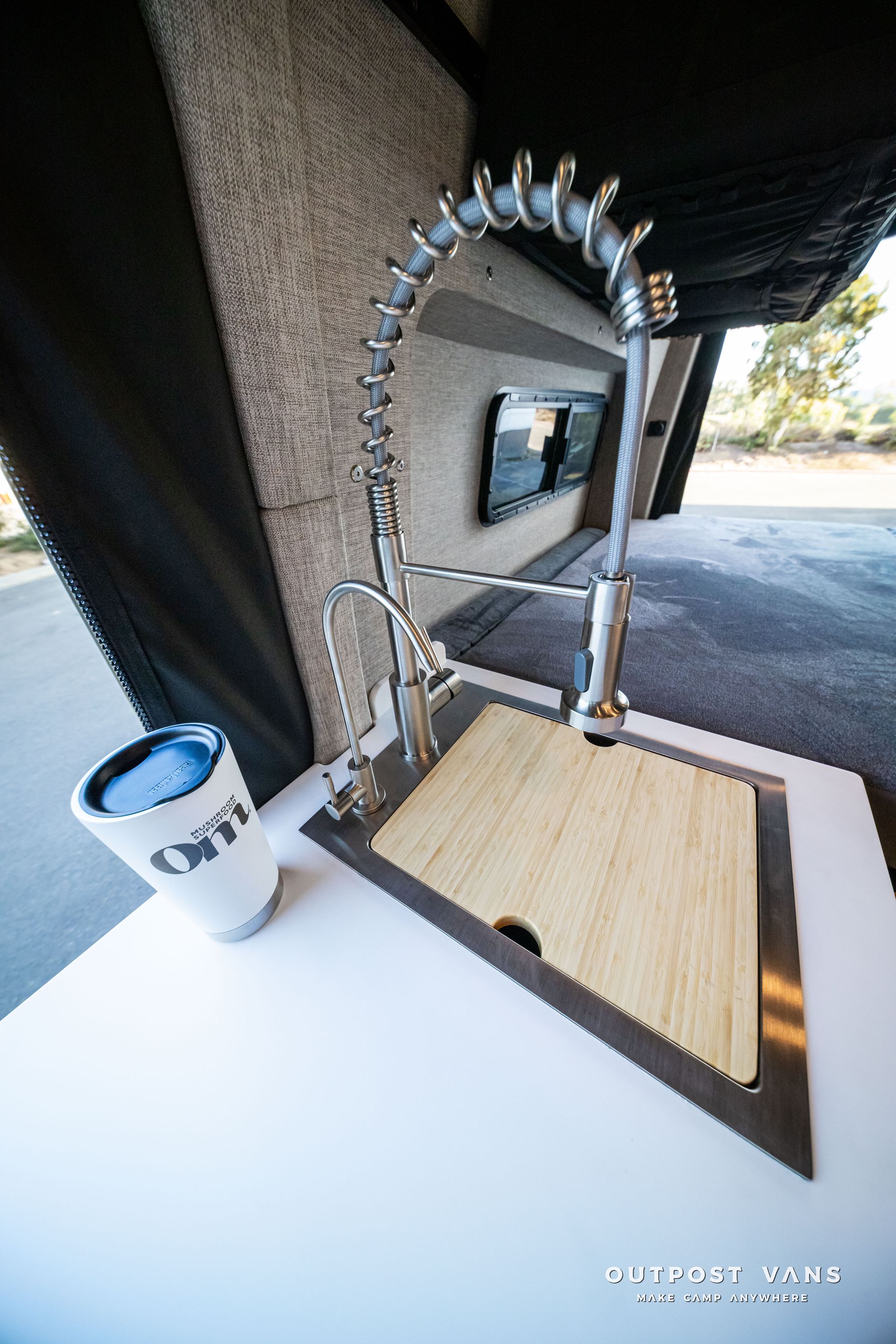

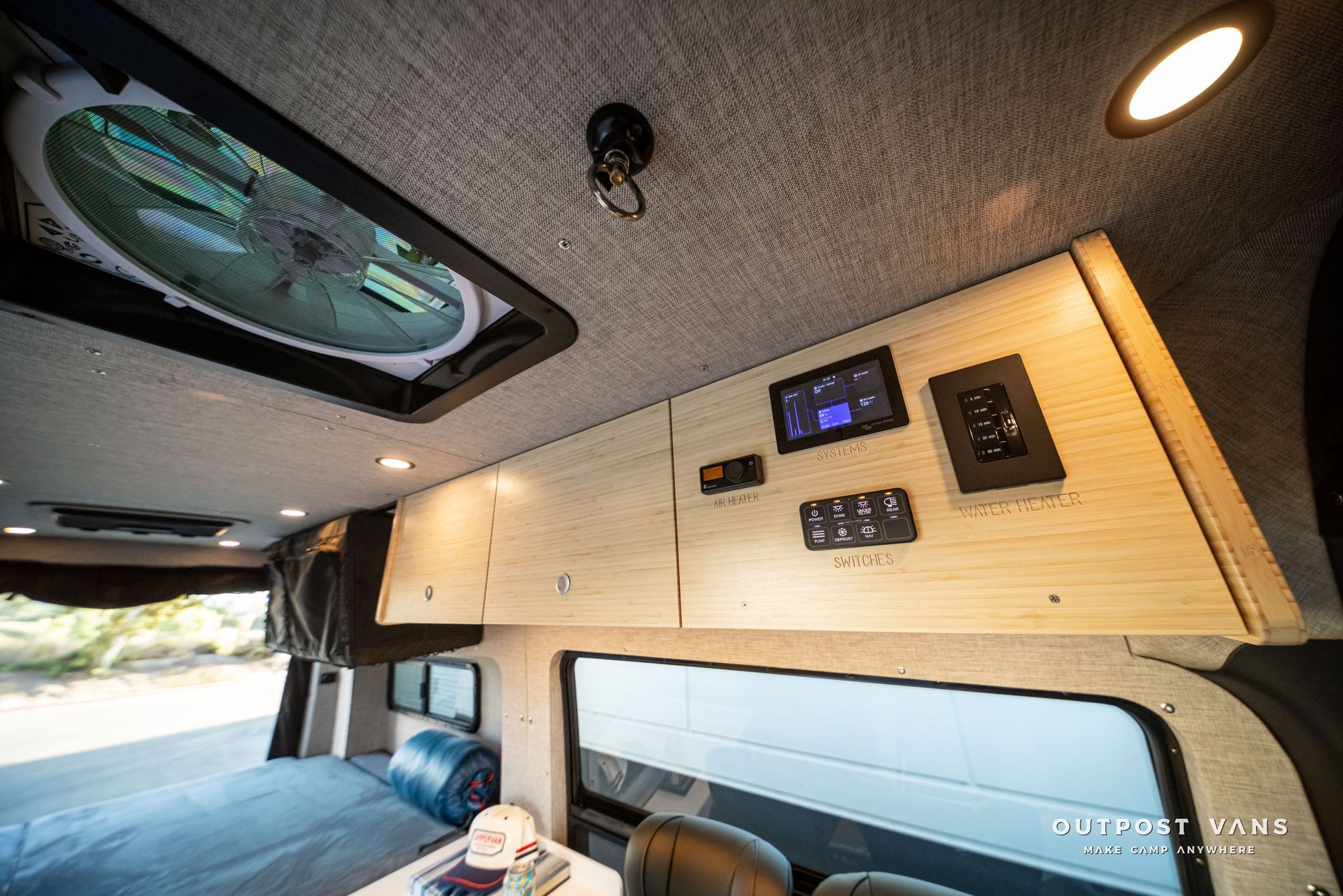

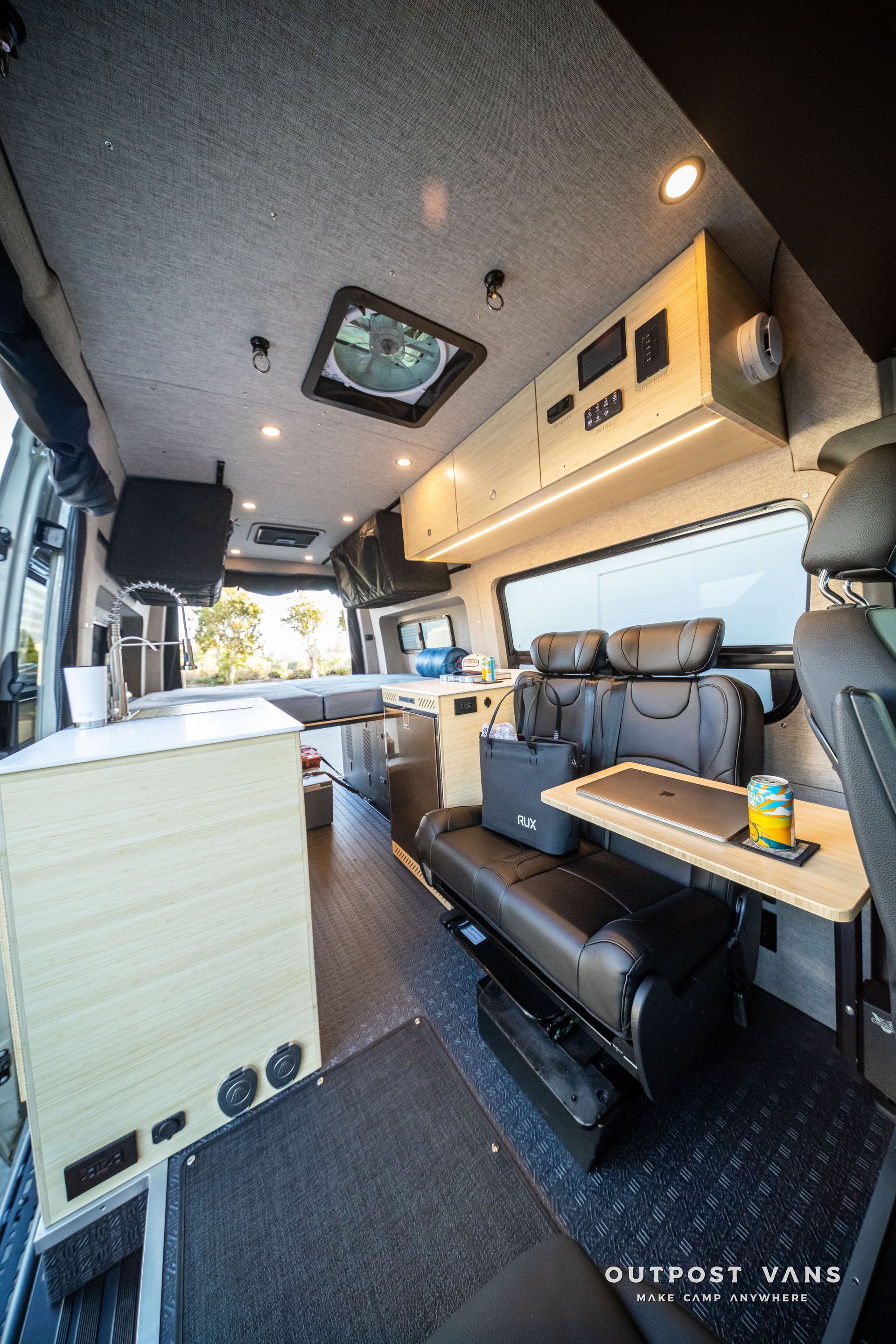

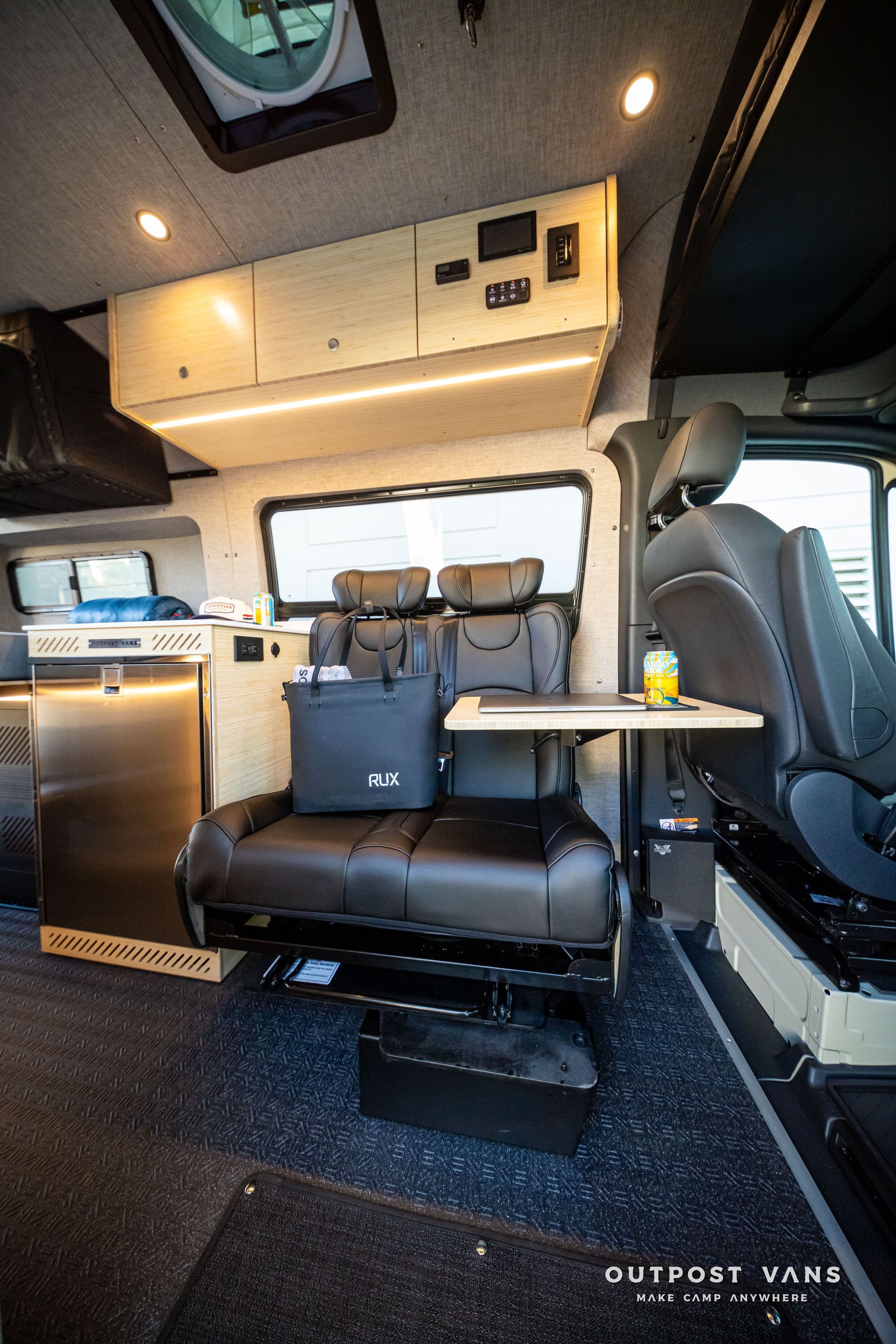

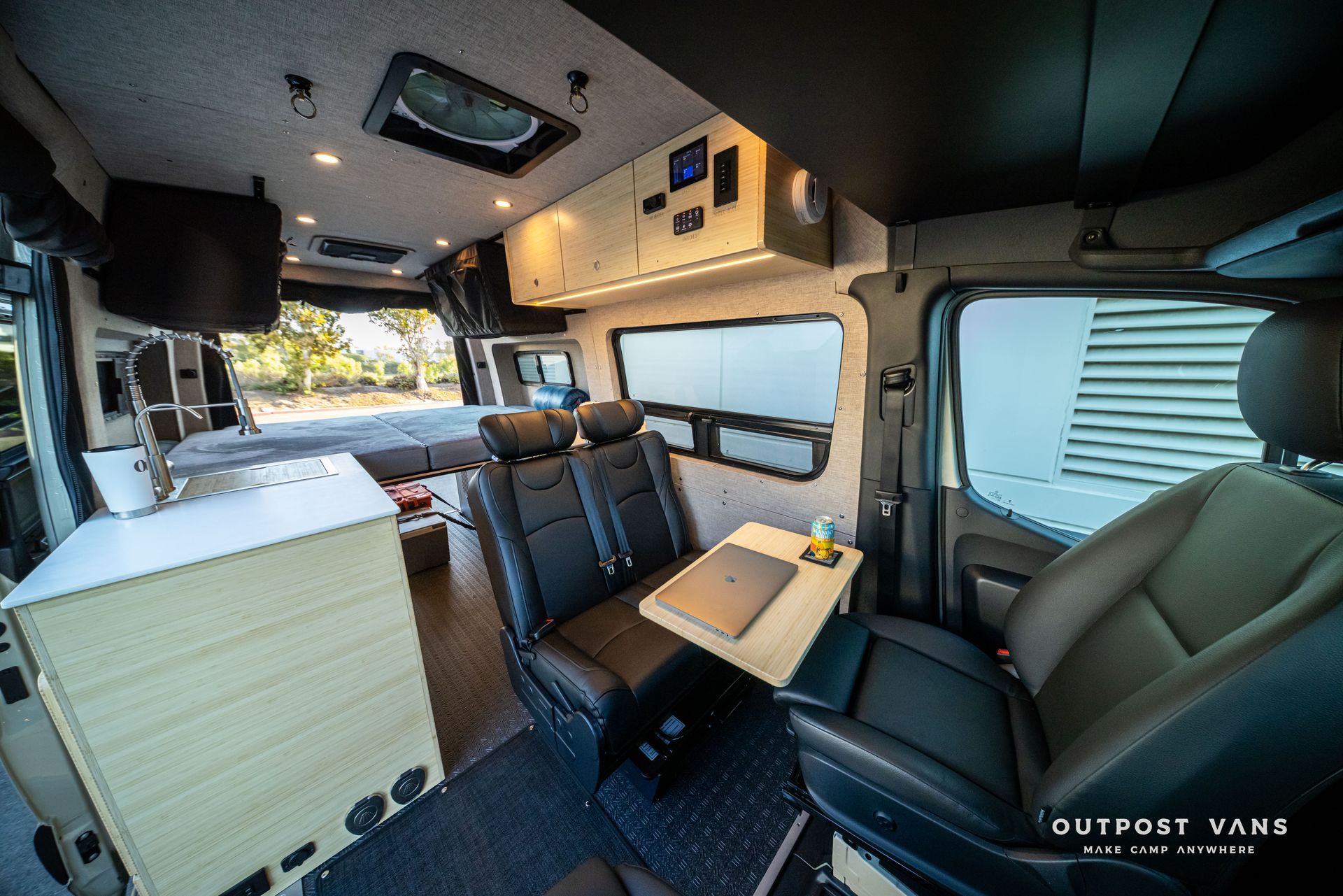

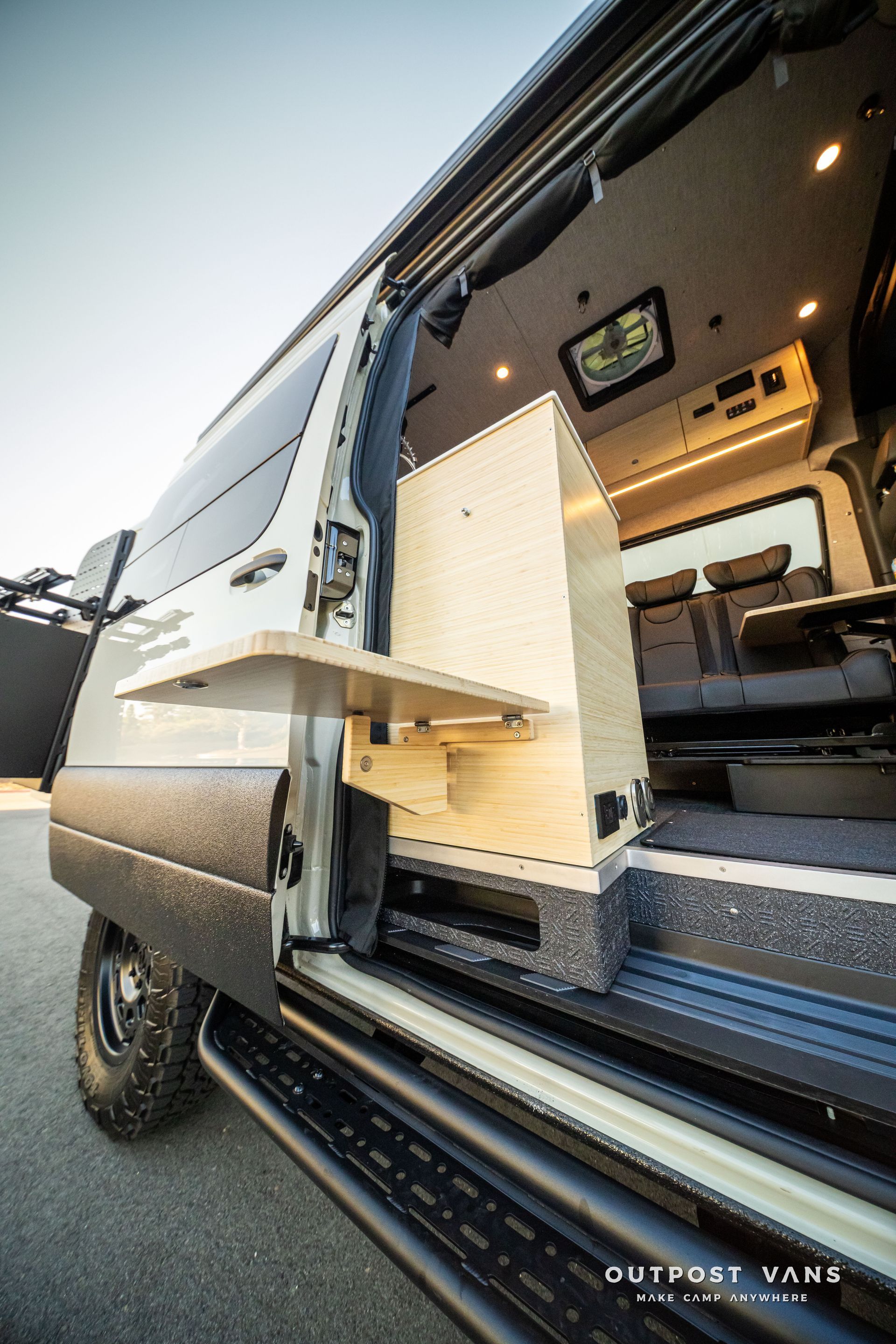

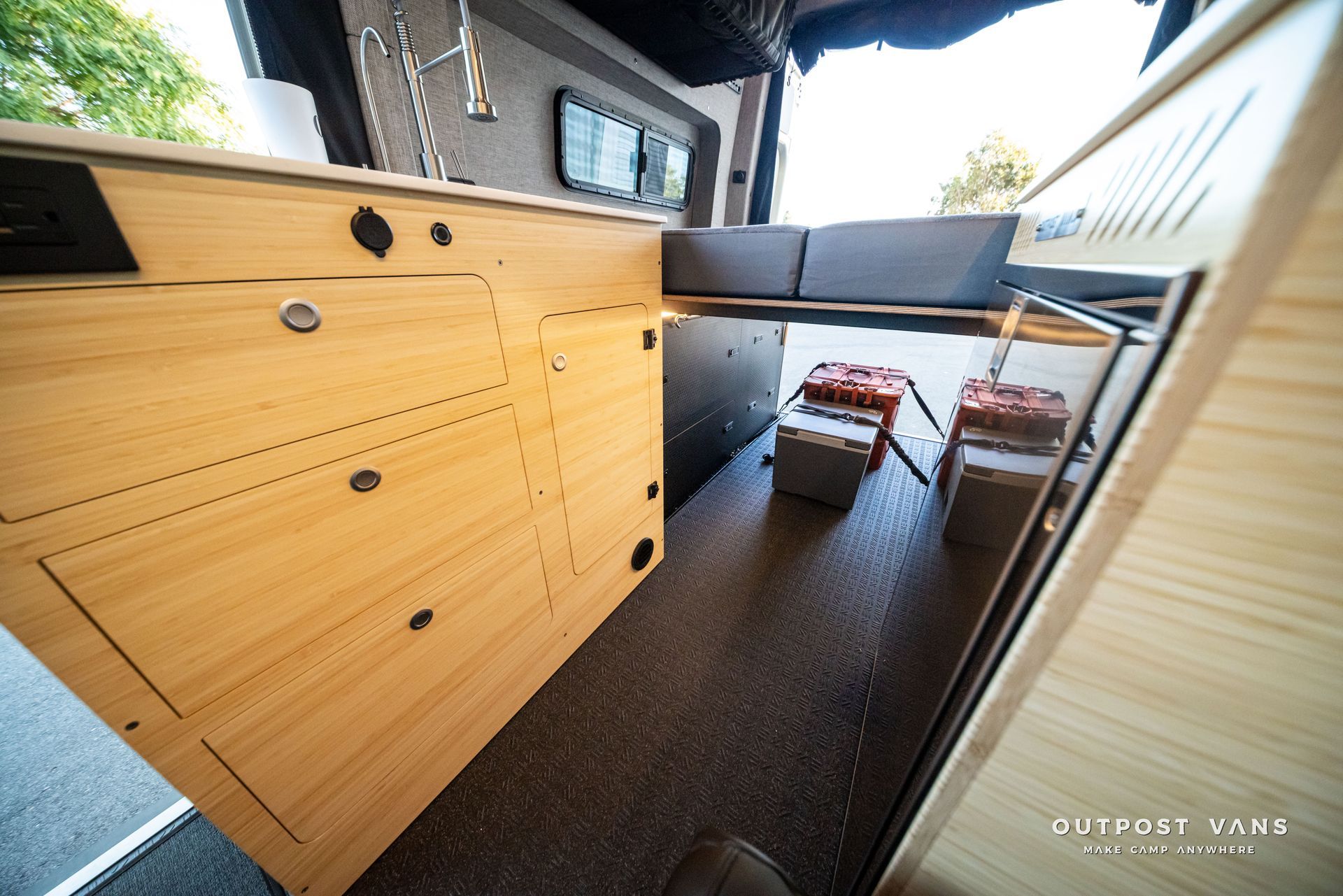

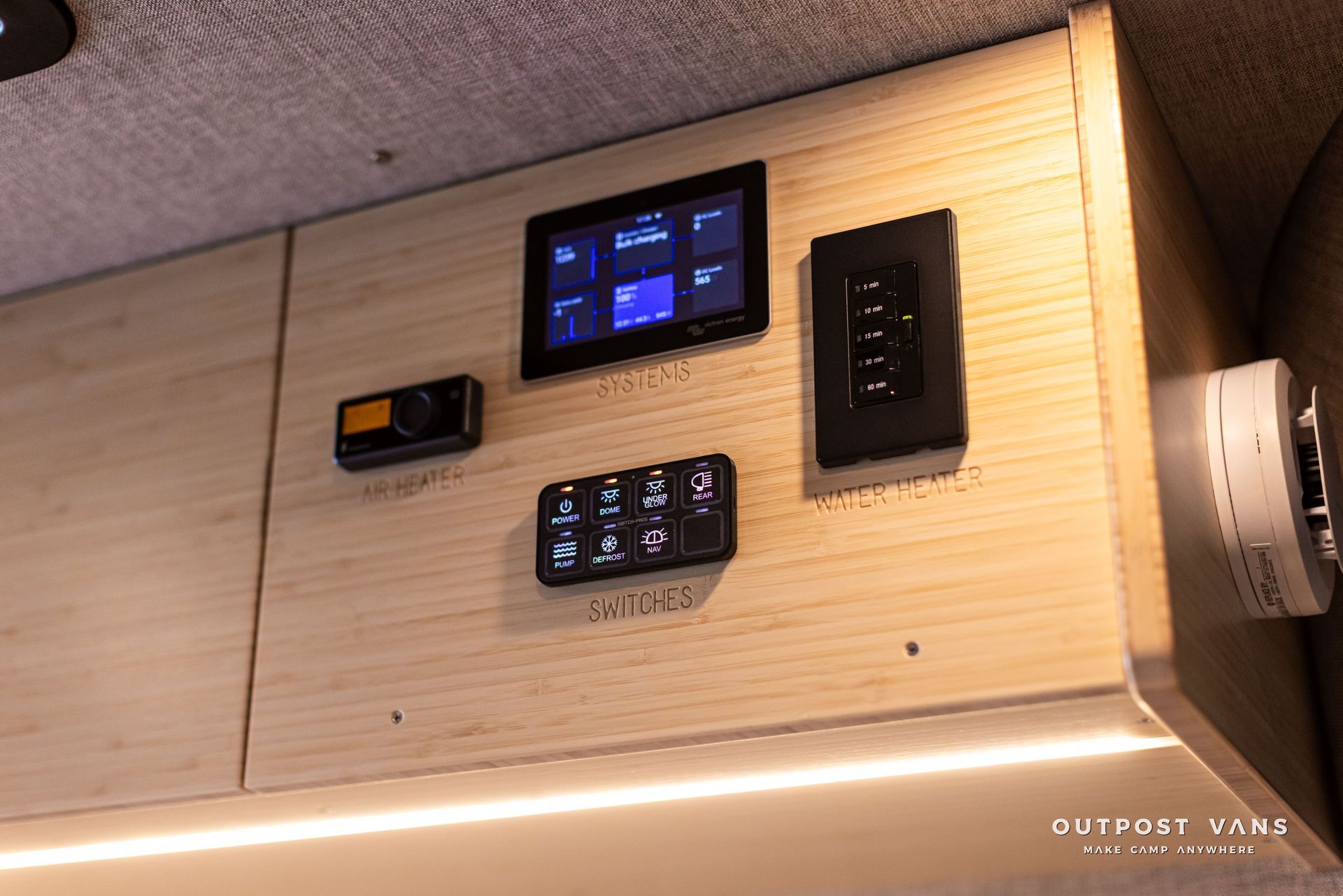

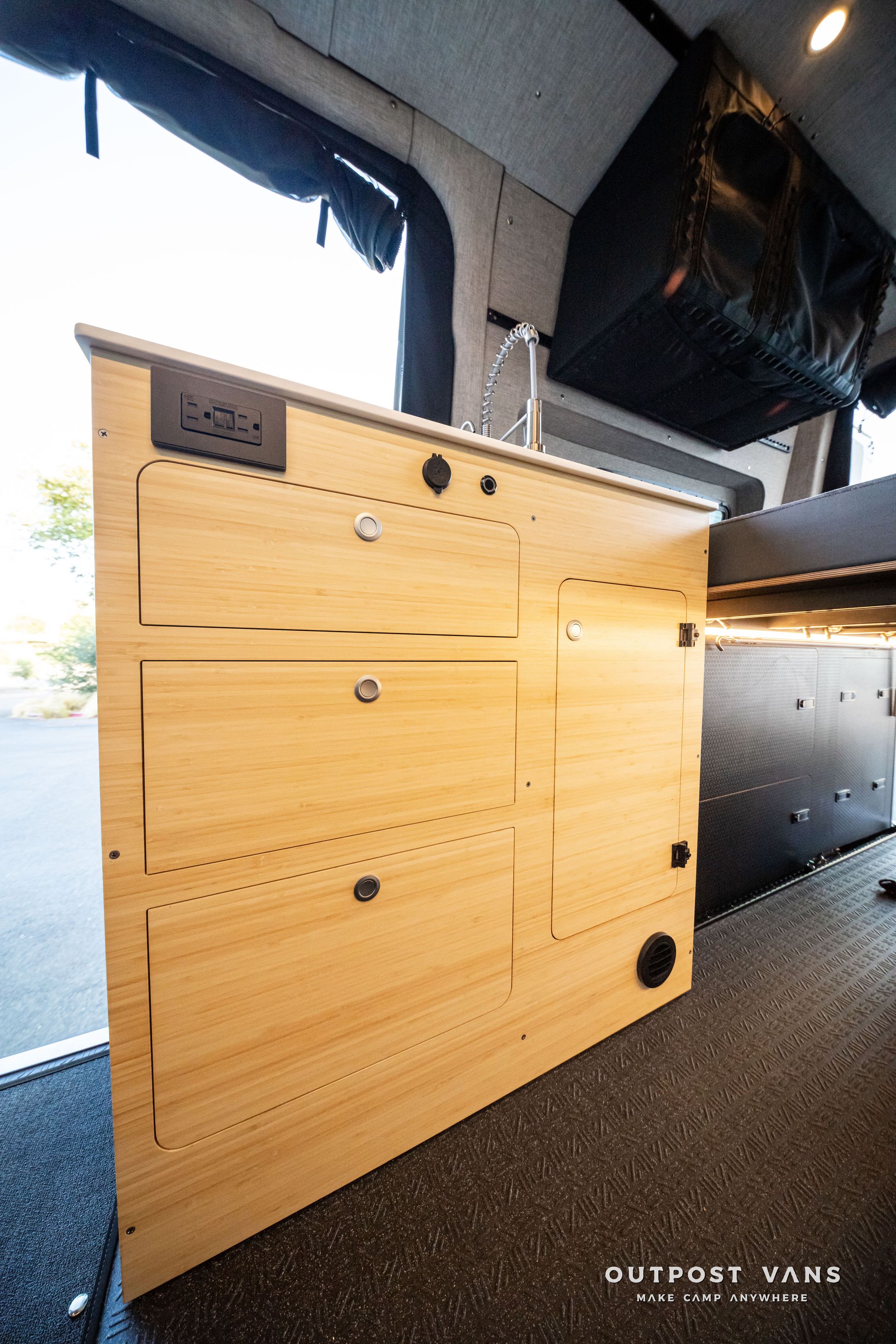

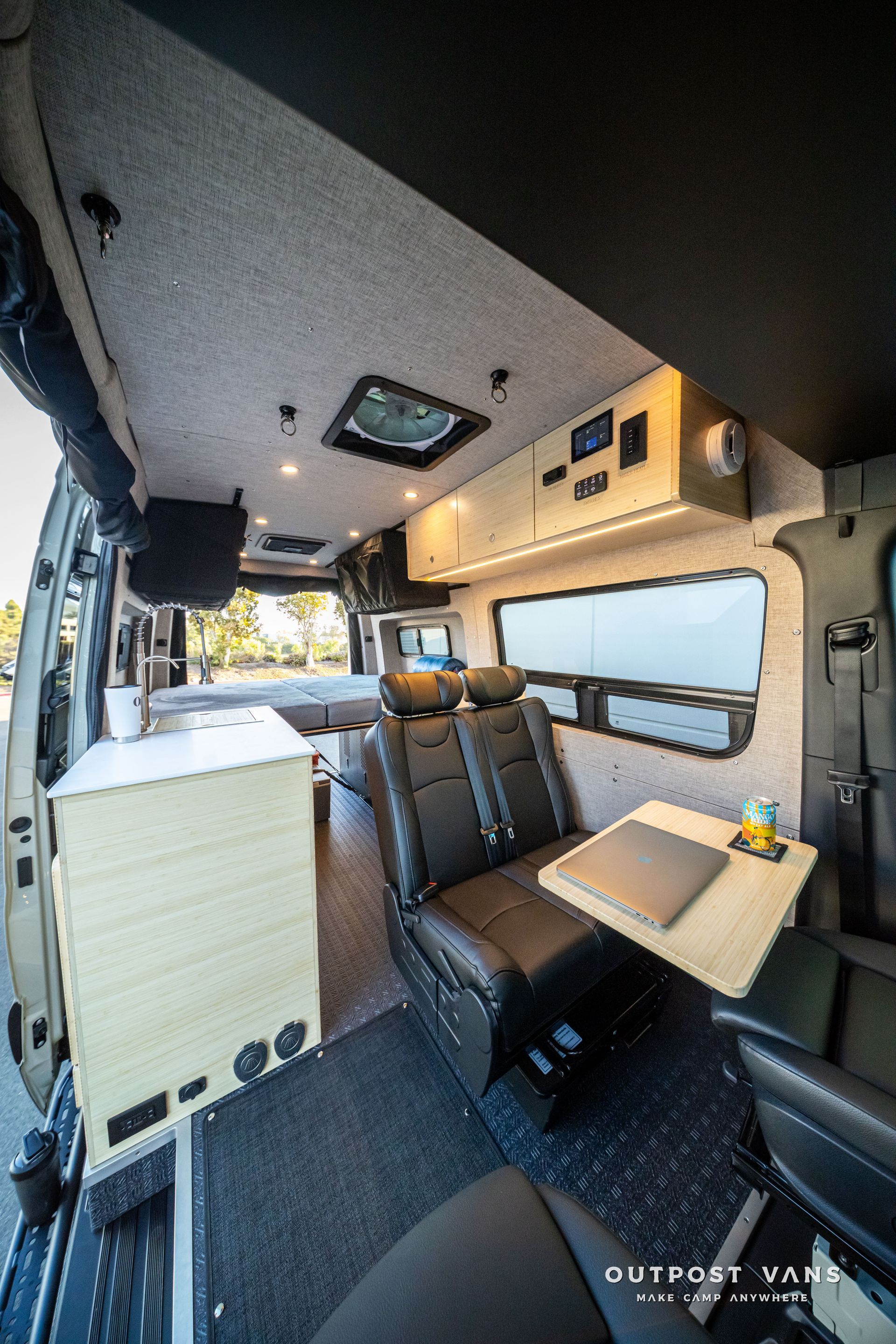

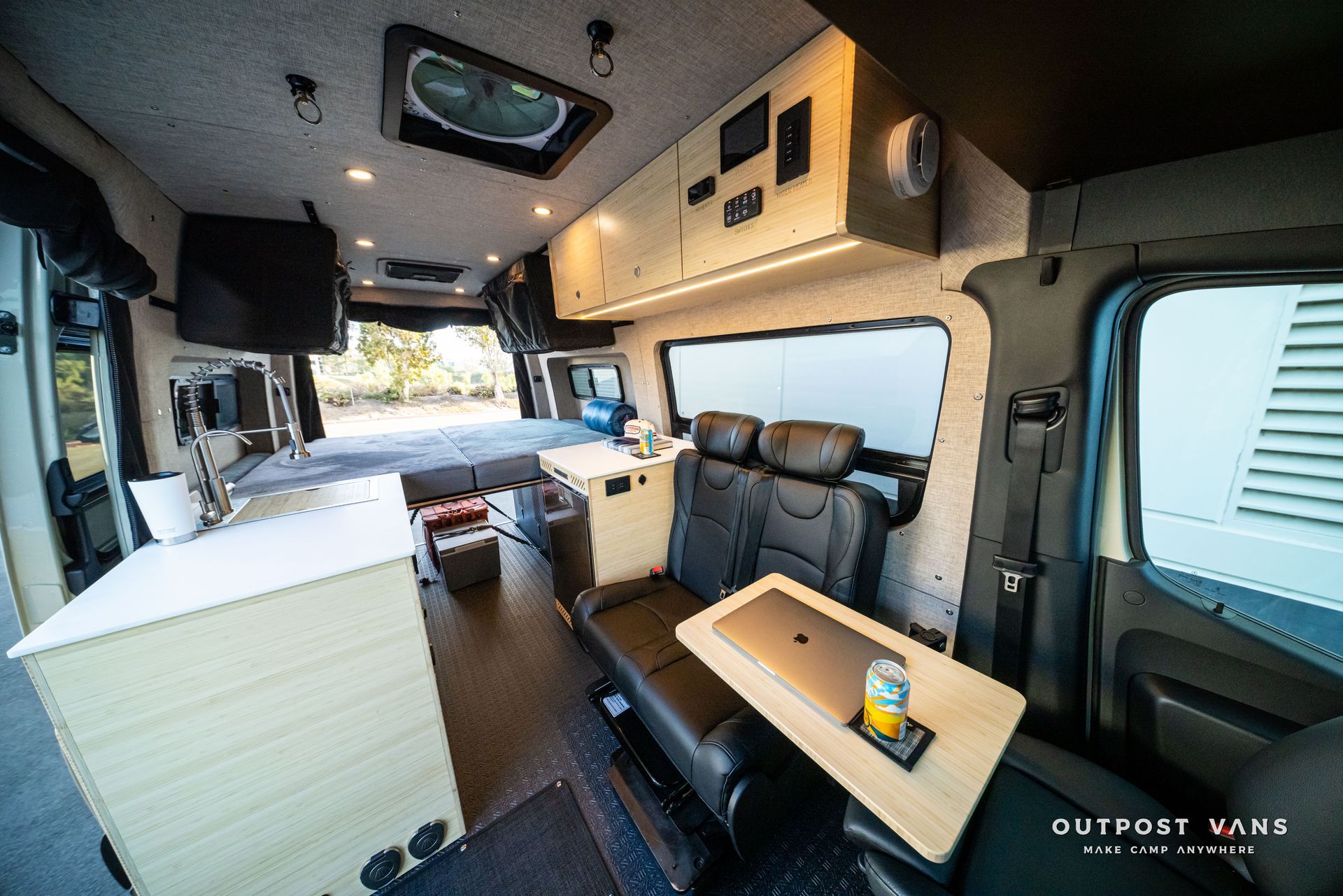

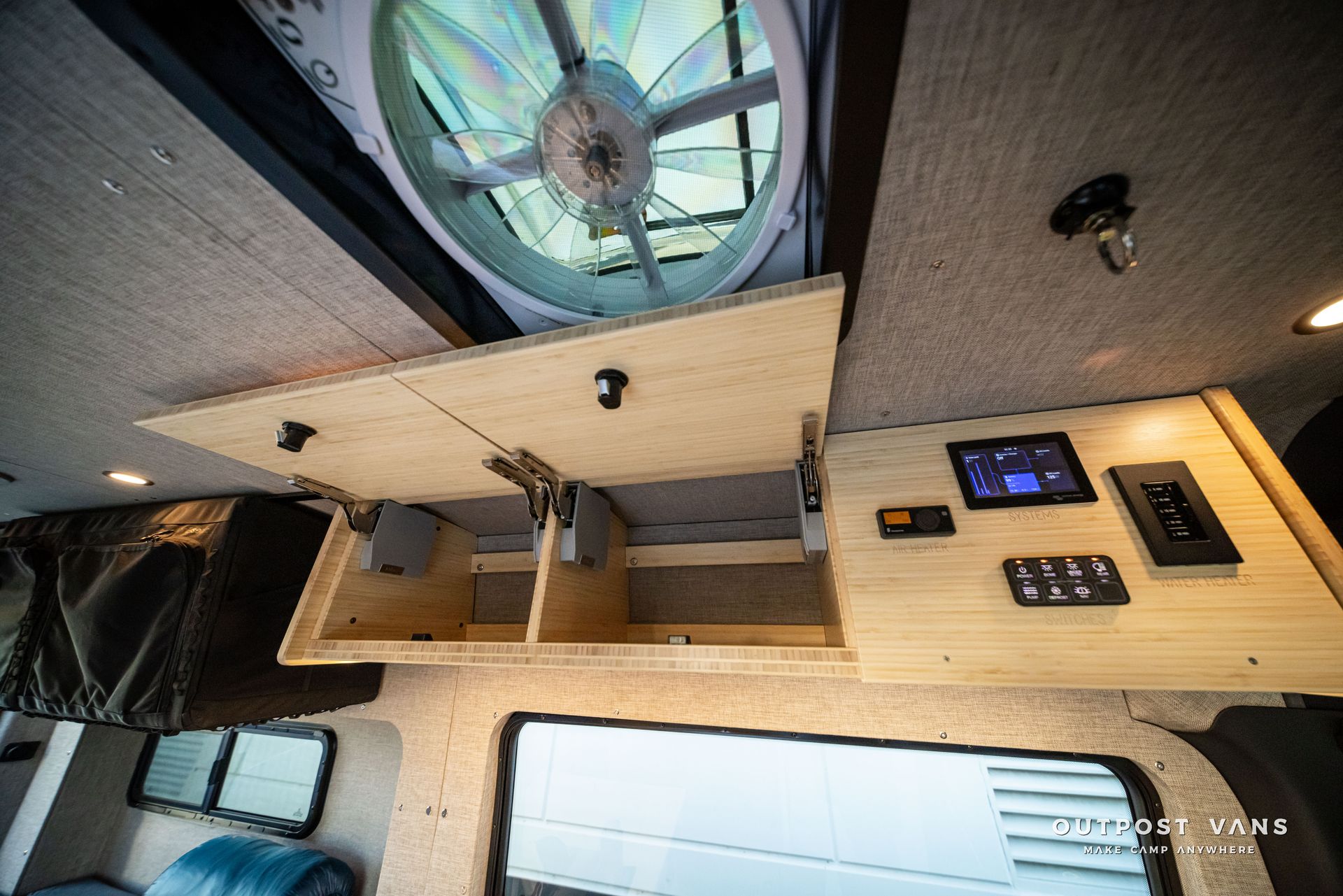

Inside, natural bamboo cabinetry, Upholstered walls, and warm LED lighting create a bright, calm cabin. A swivel bench and Lagun table work for meals or remote work, and an overhead monitoring console keeps power, heat, and lighting within arm’s reach. The kitchen has a stainless sink, filtered drinking water, an induction cooktop, a solid-surface countertop, and a 130L Isotherm fridge. A fold-down table at the slider adds space for outdoor prep.

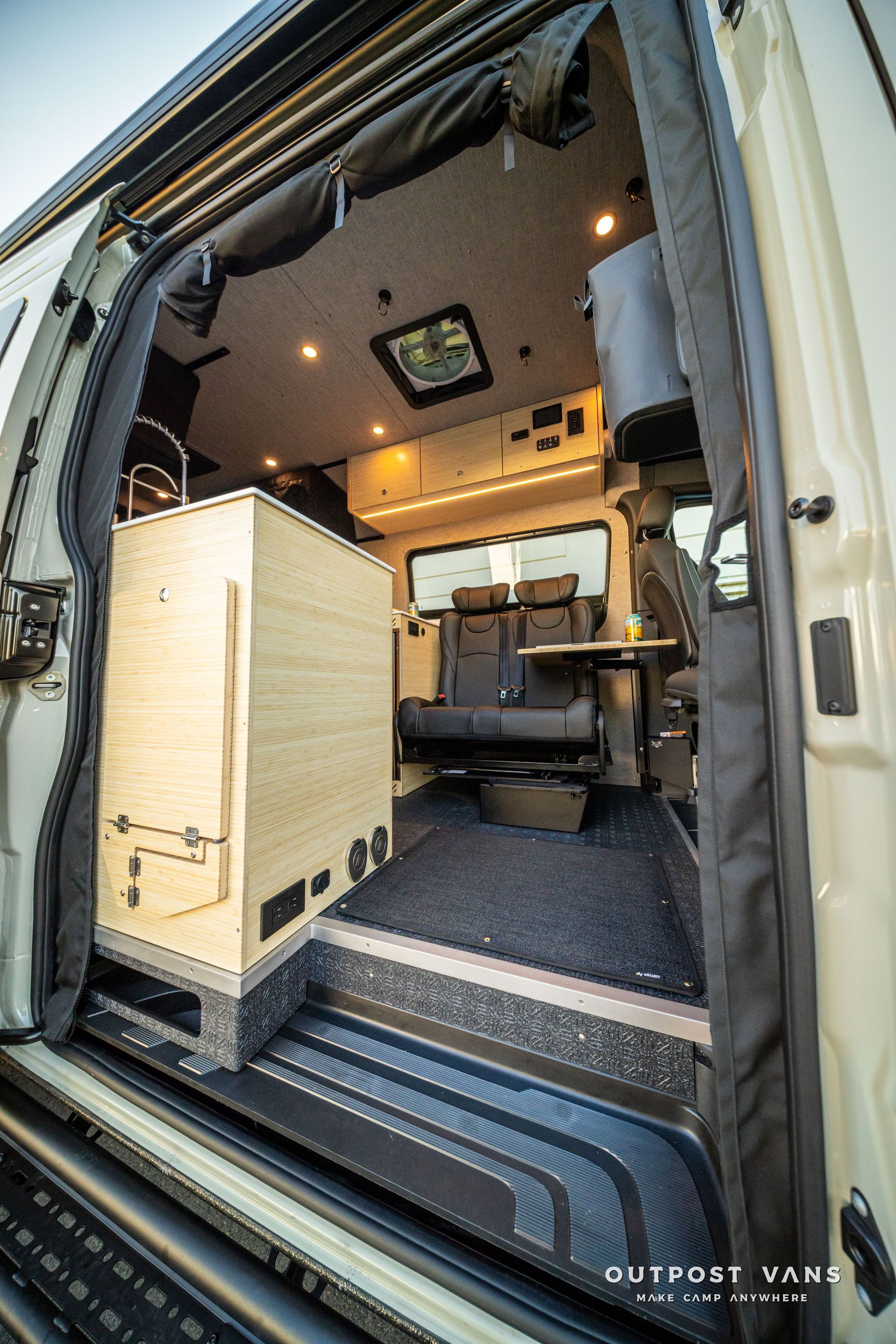

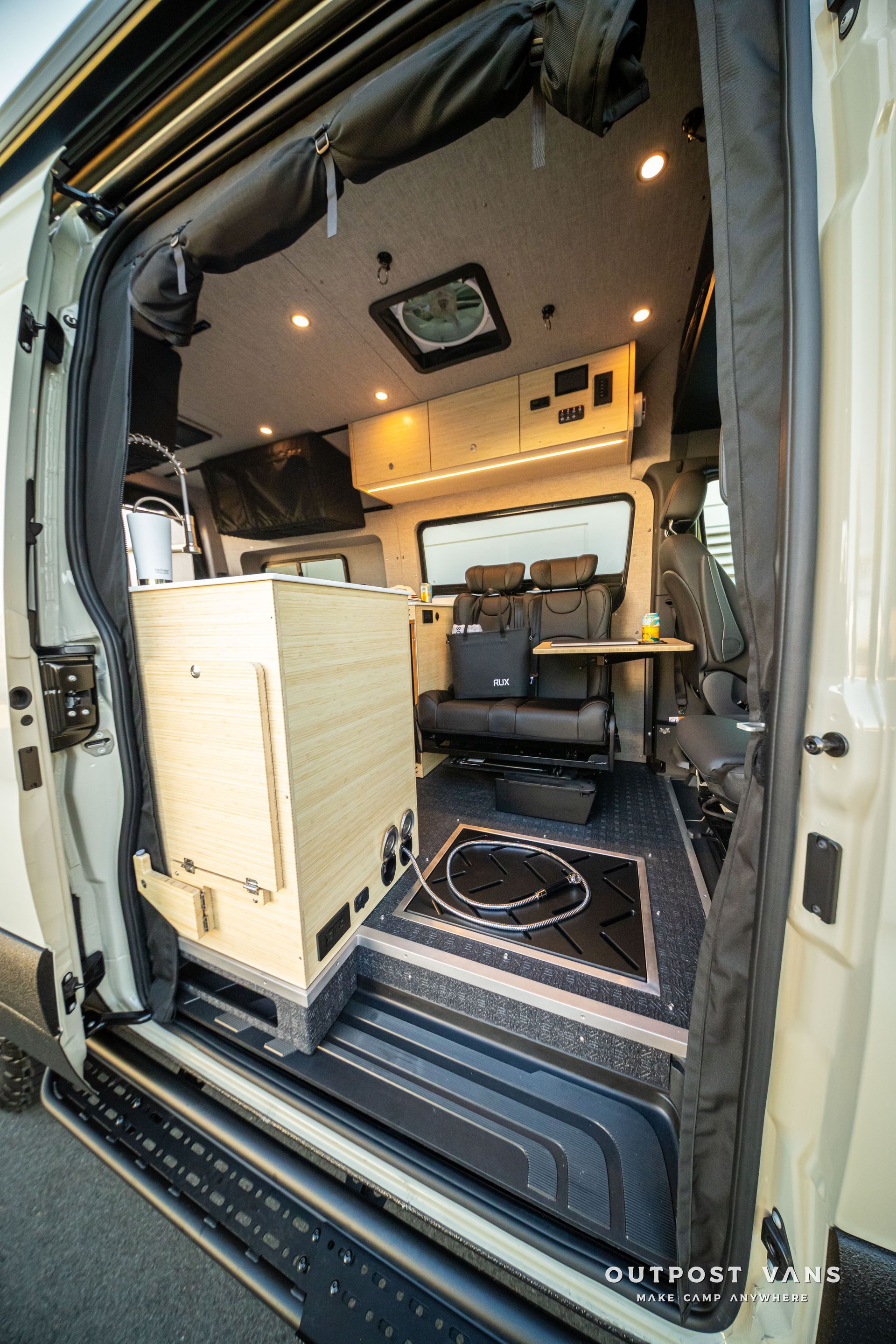

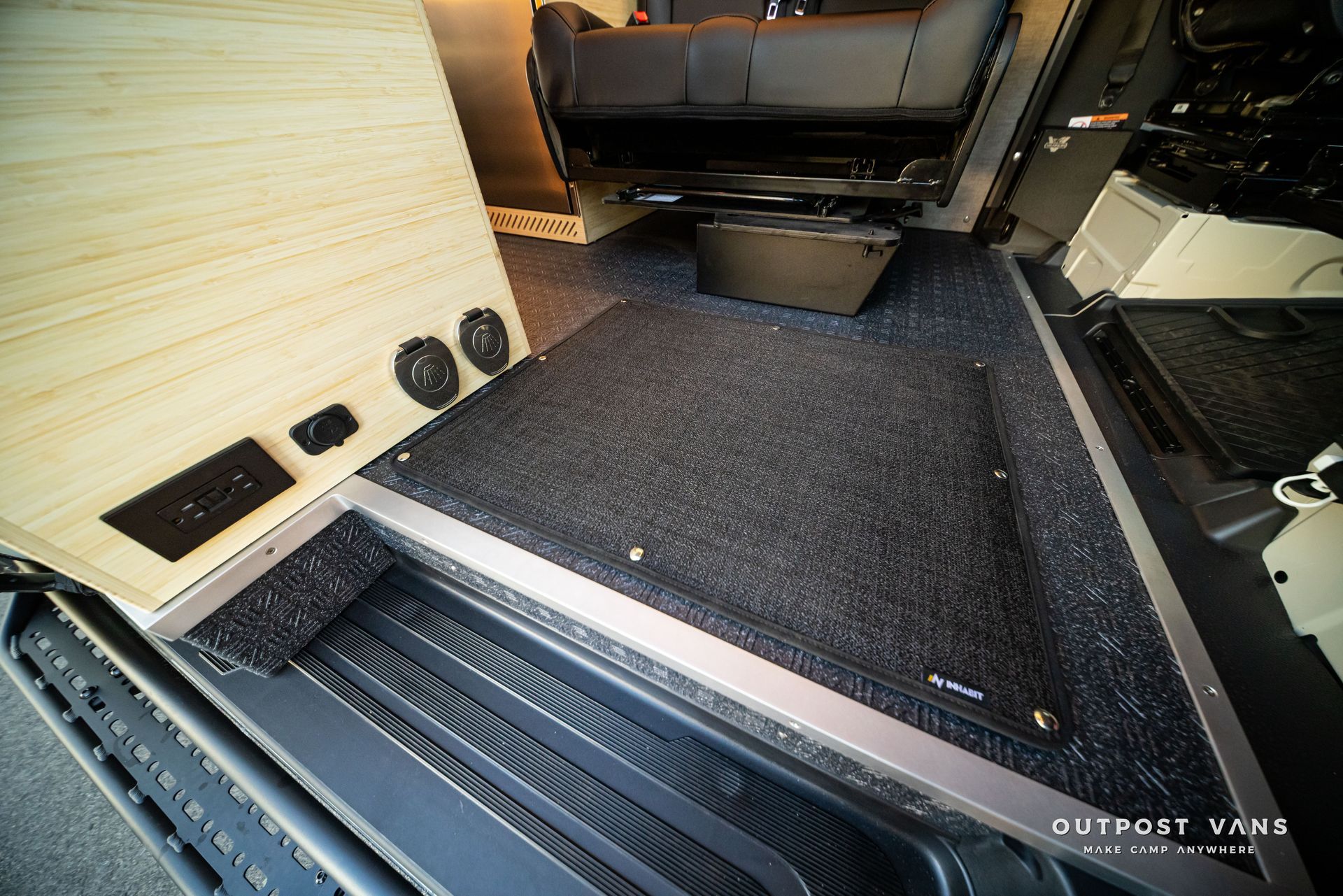

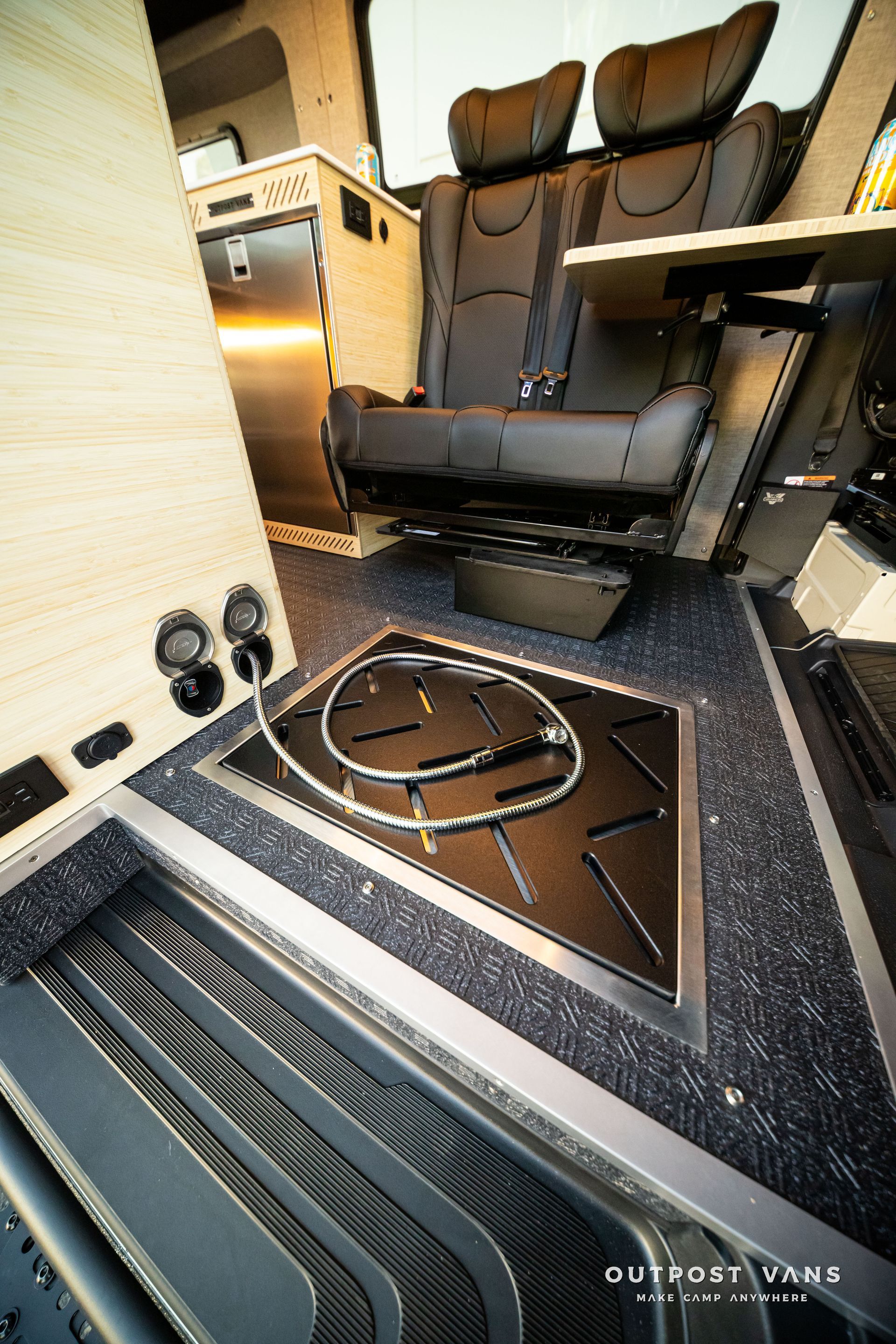

The standout feature is hidden underfoot. A flush-mounted stainless shower pan at the slider entry turns the entryway into a full interior shower, with no permanent wet bath taking up space. An outdoor shower, a Trelino toilet, and heated fresh and grey tanks make long stretches off-grid easy.

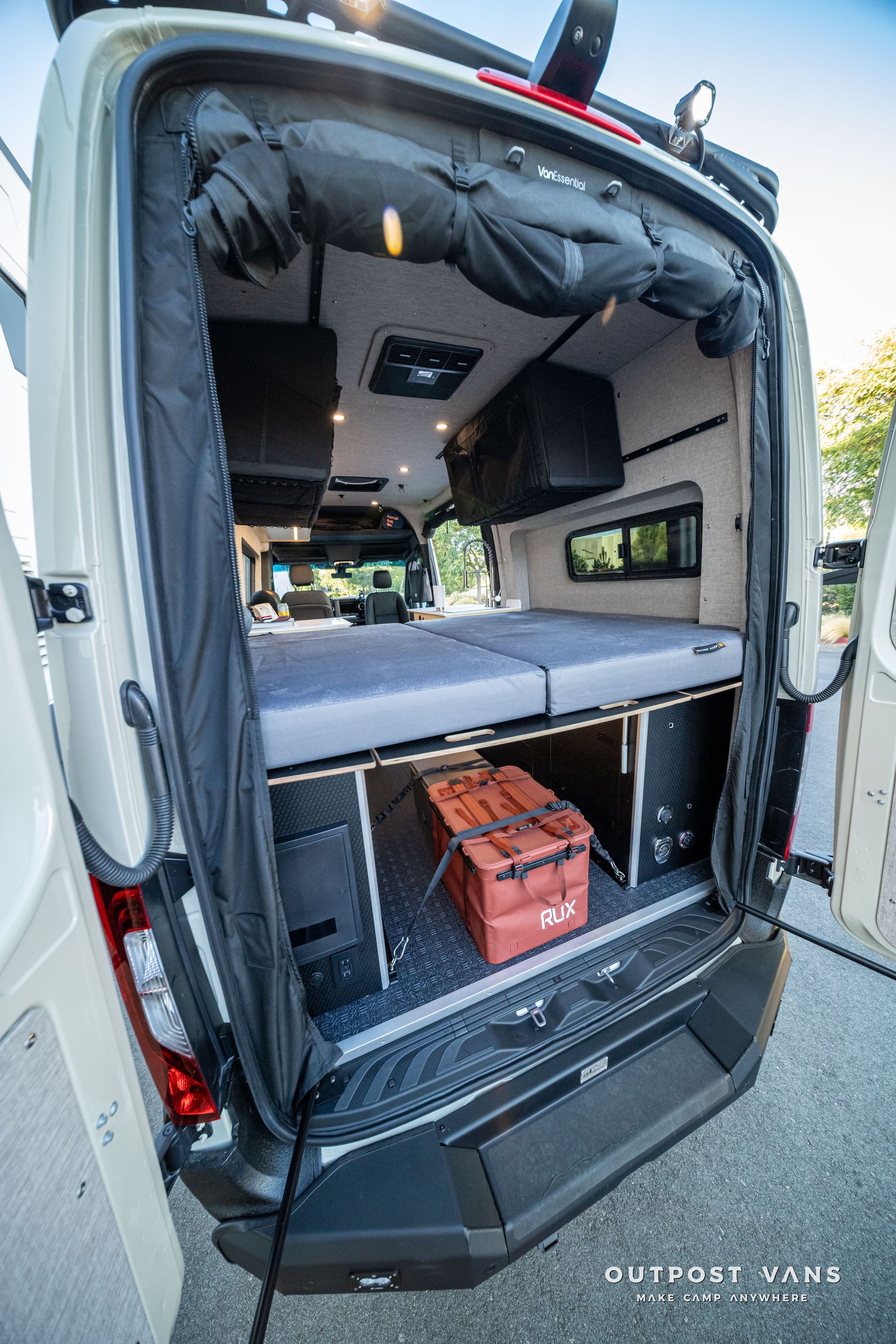

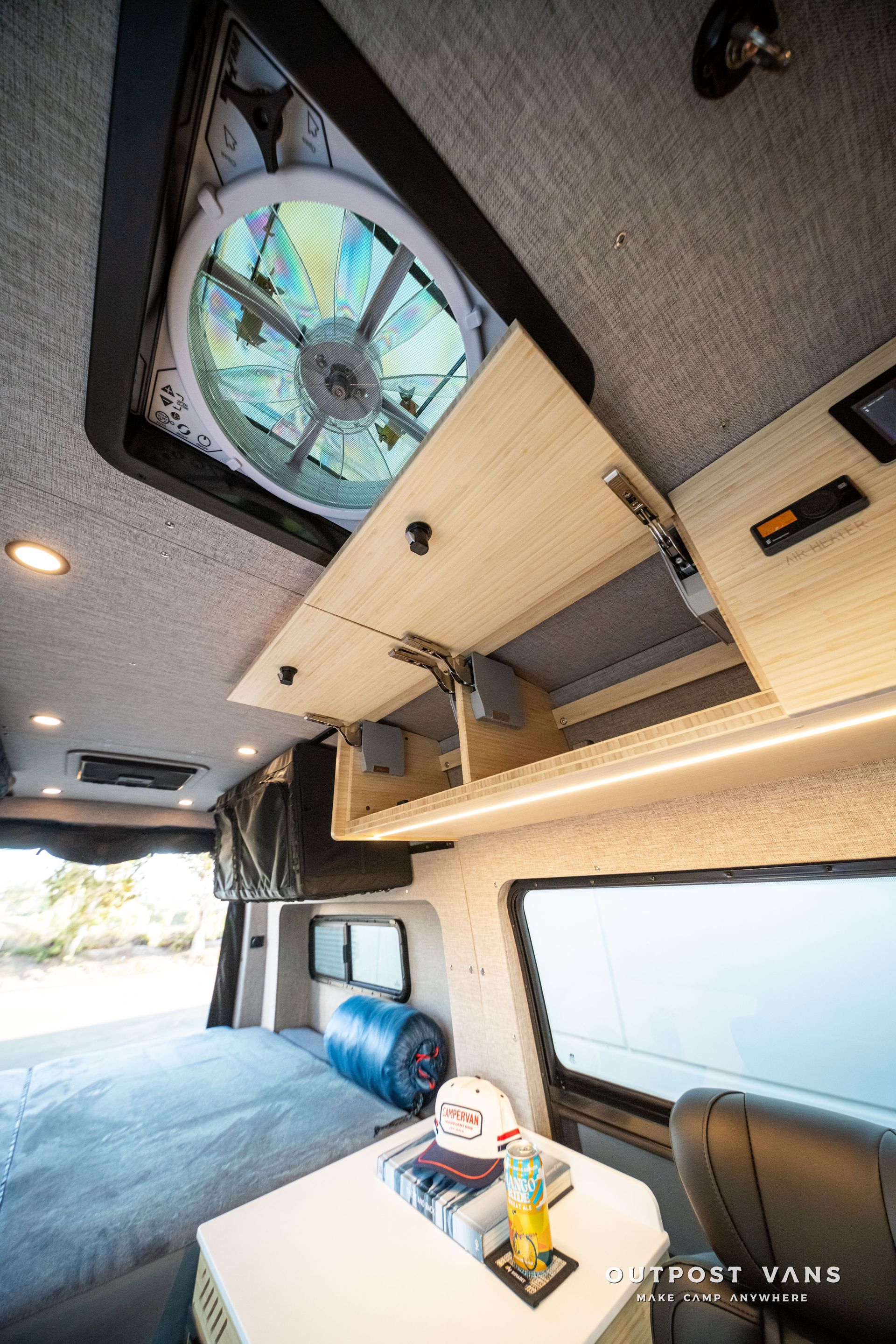

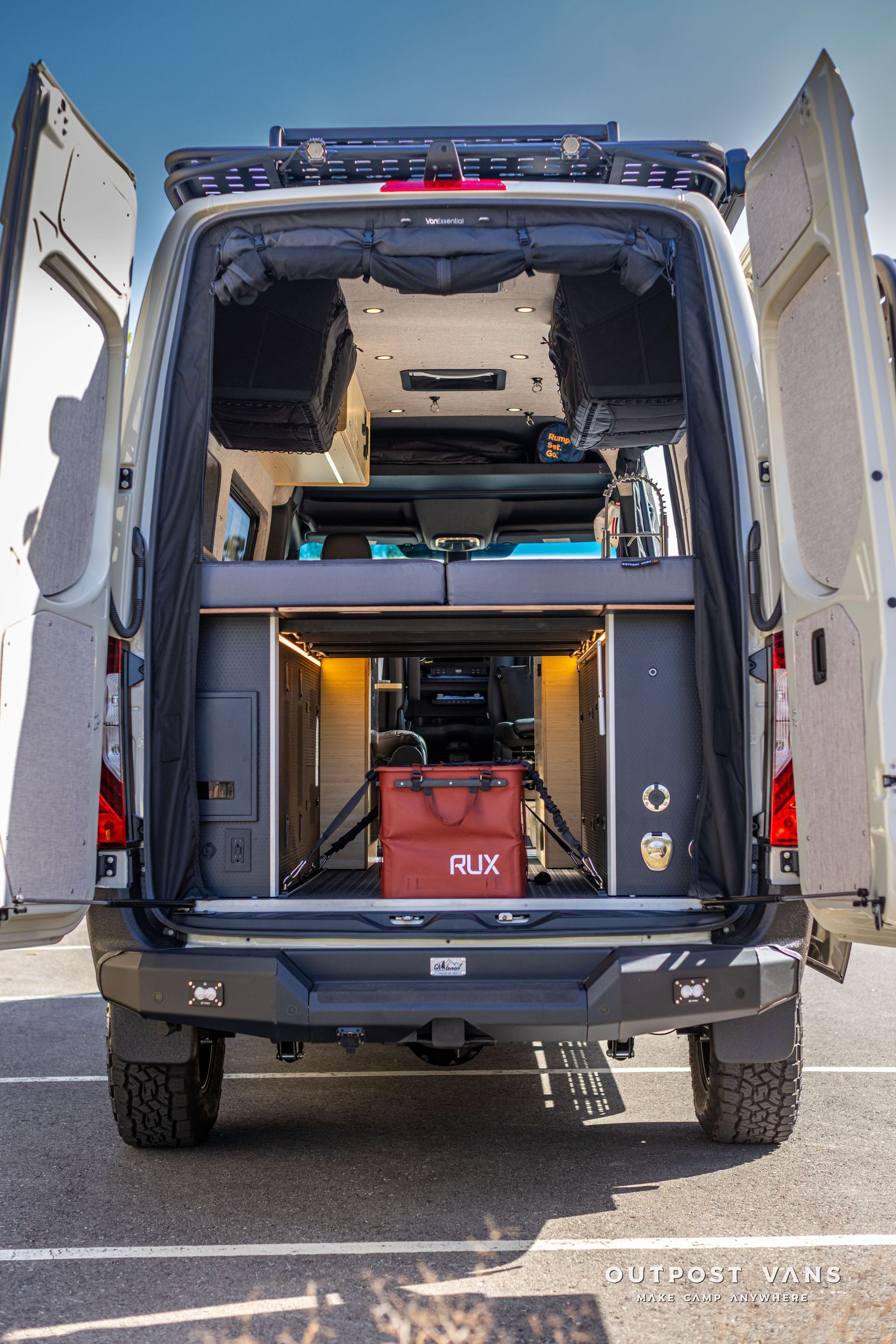

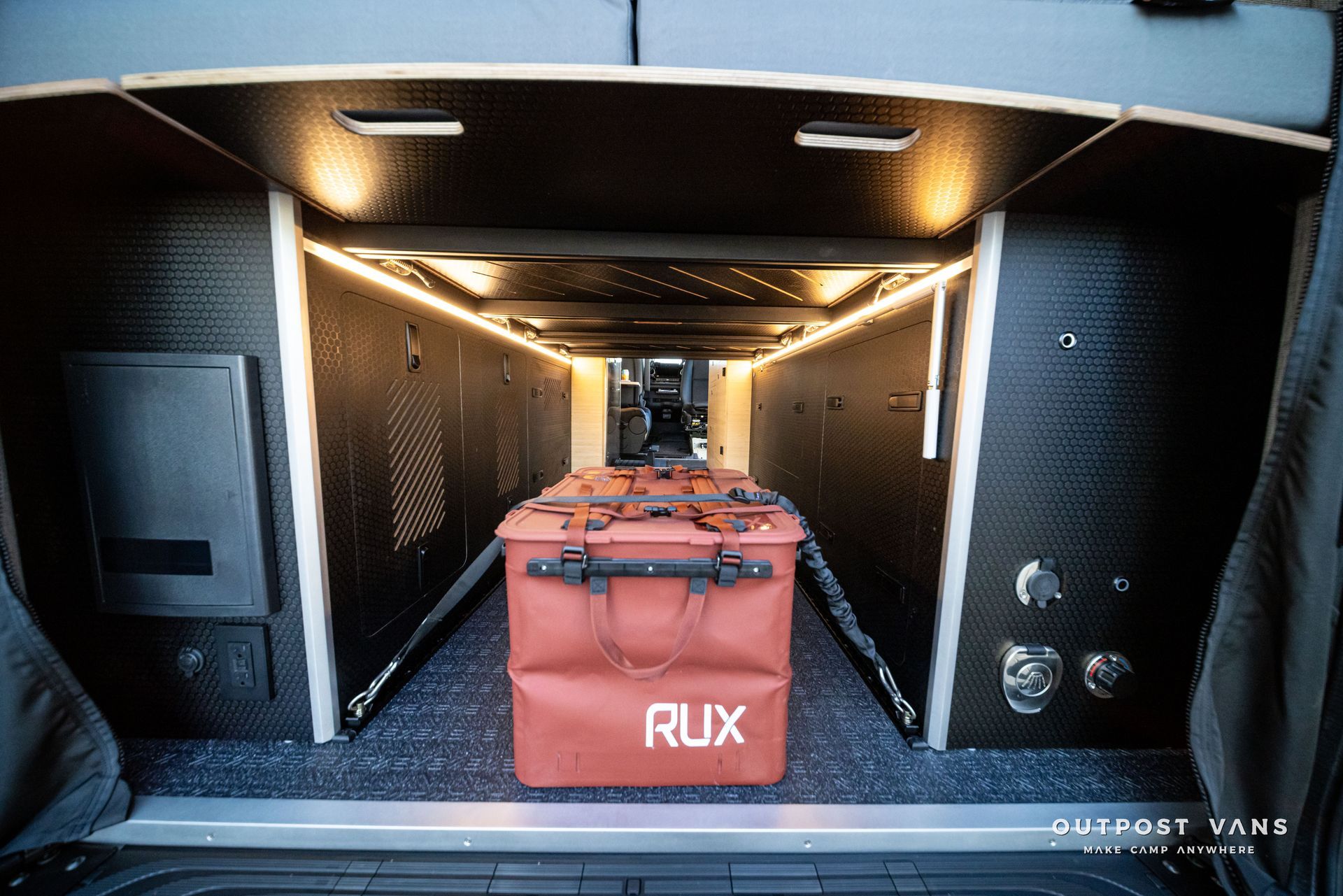

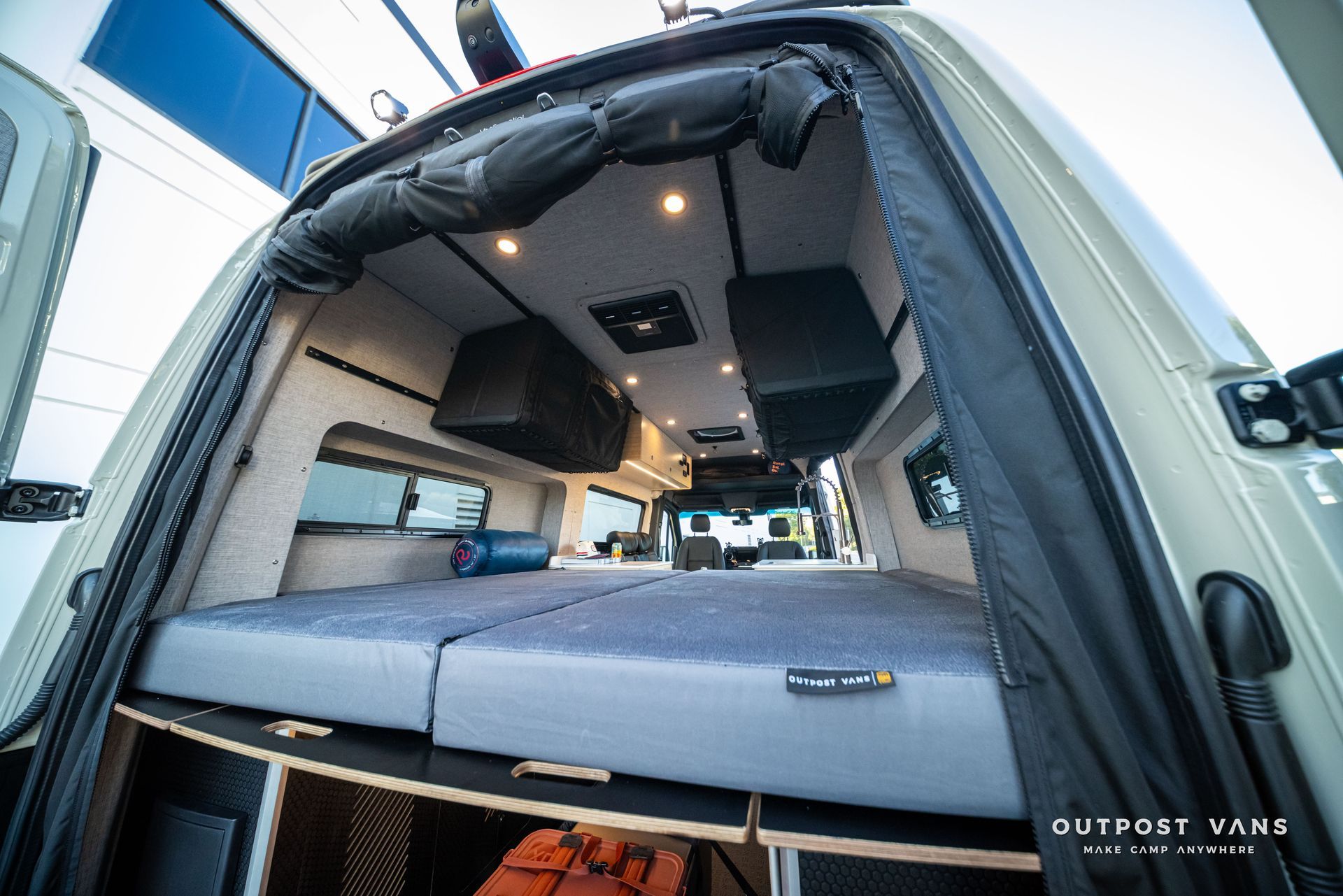

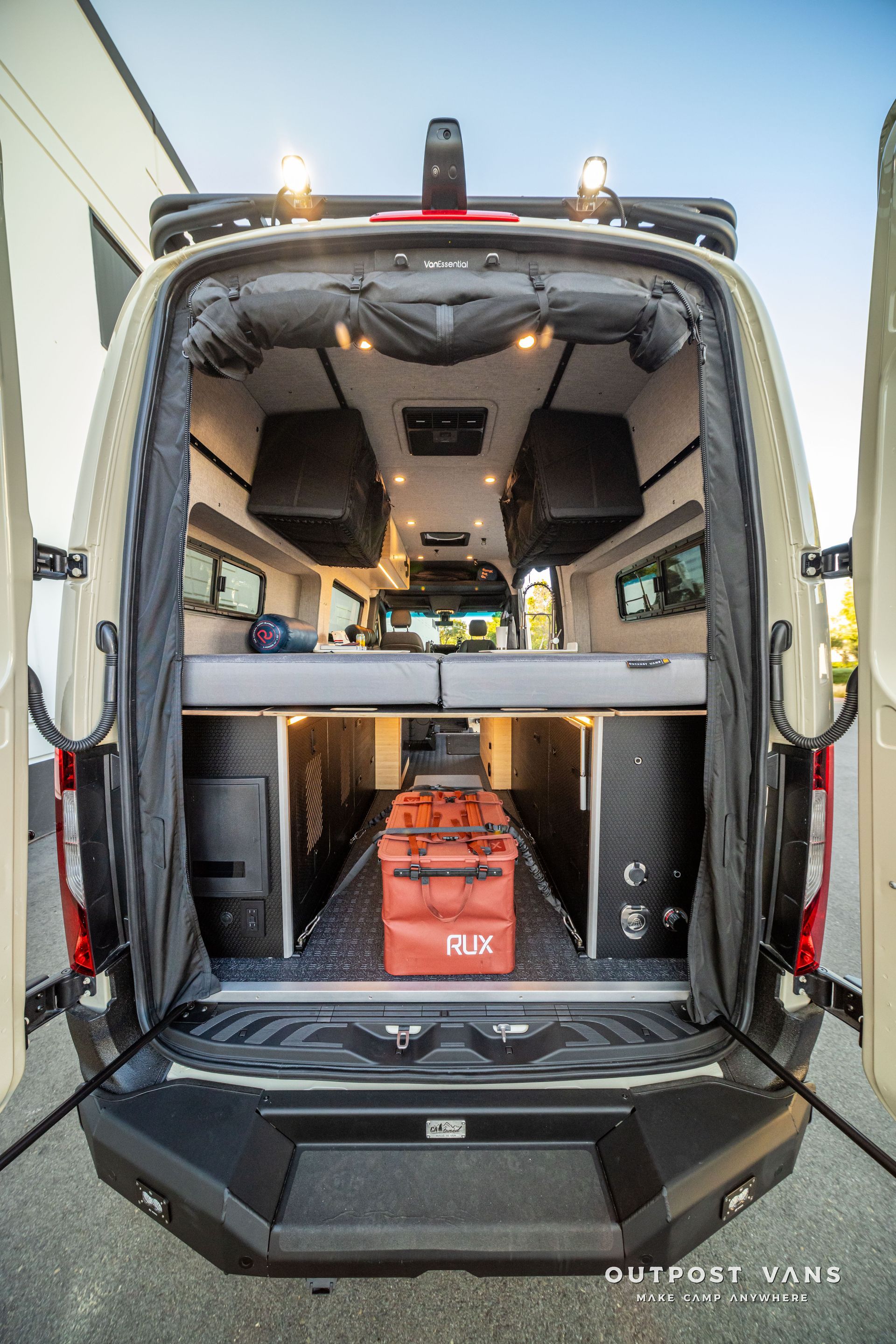

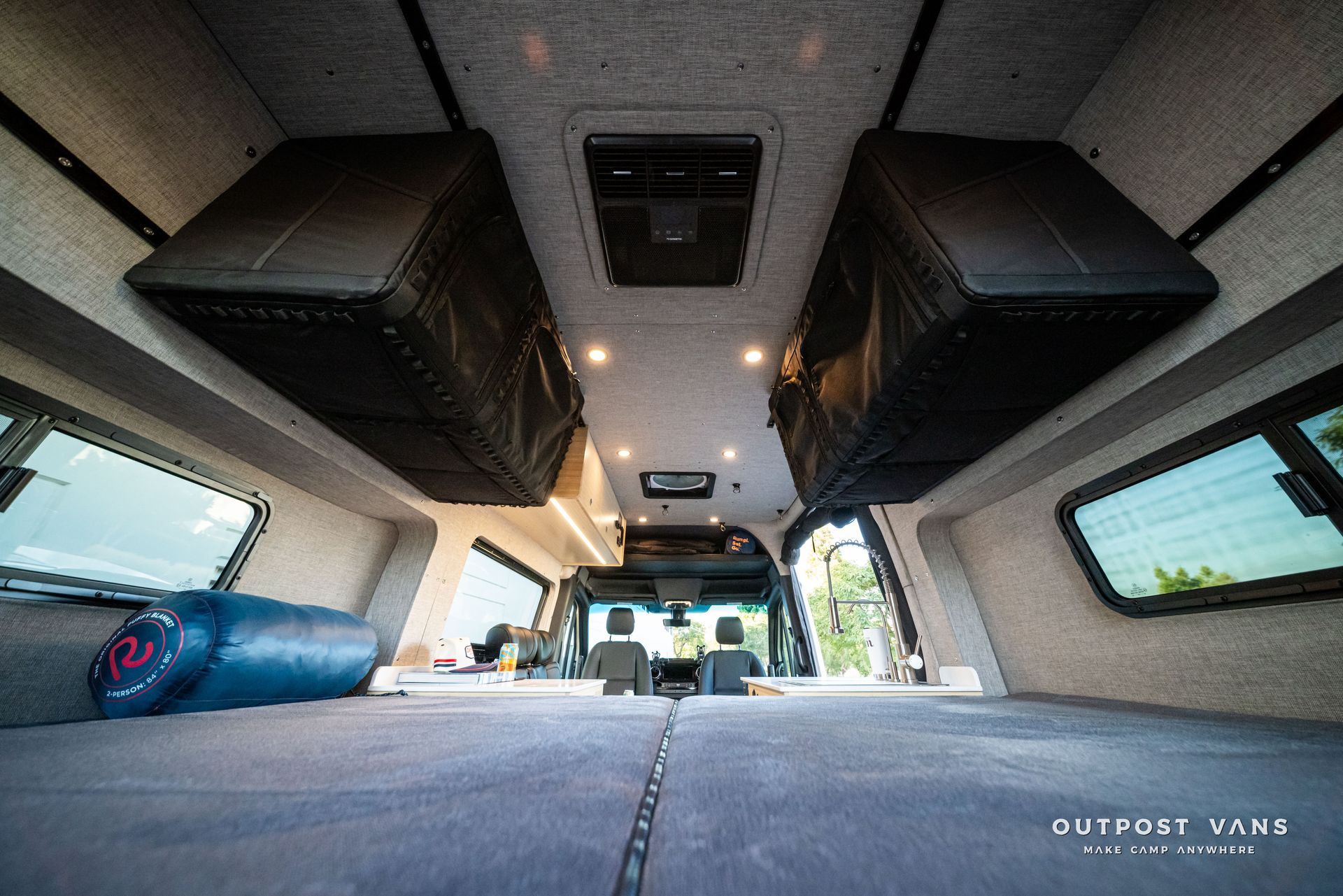

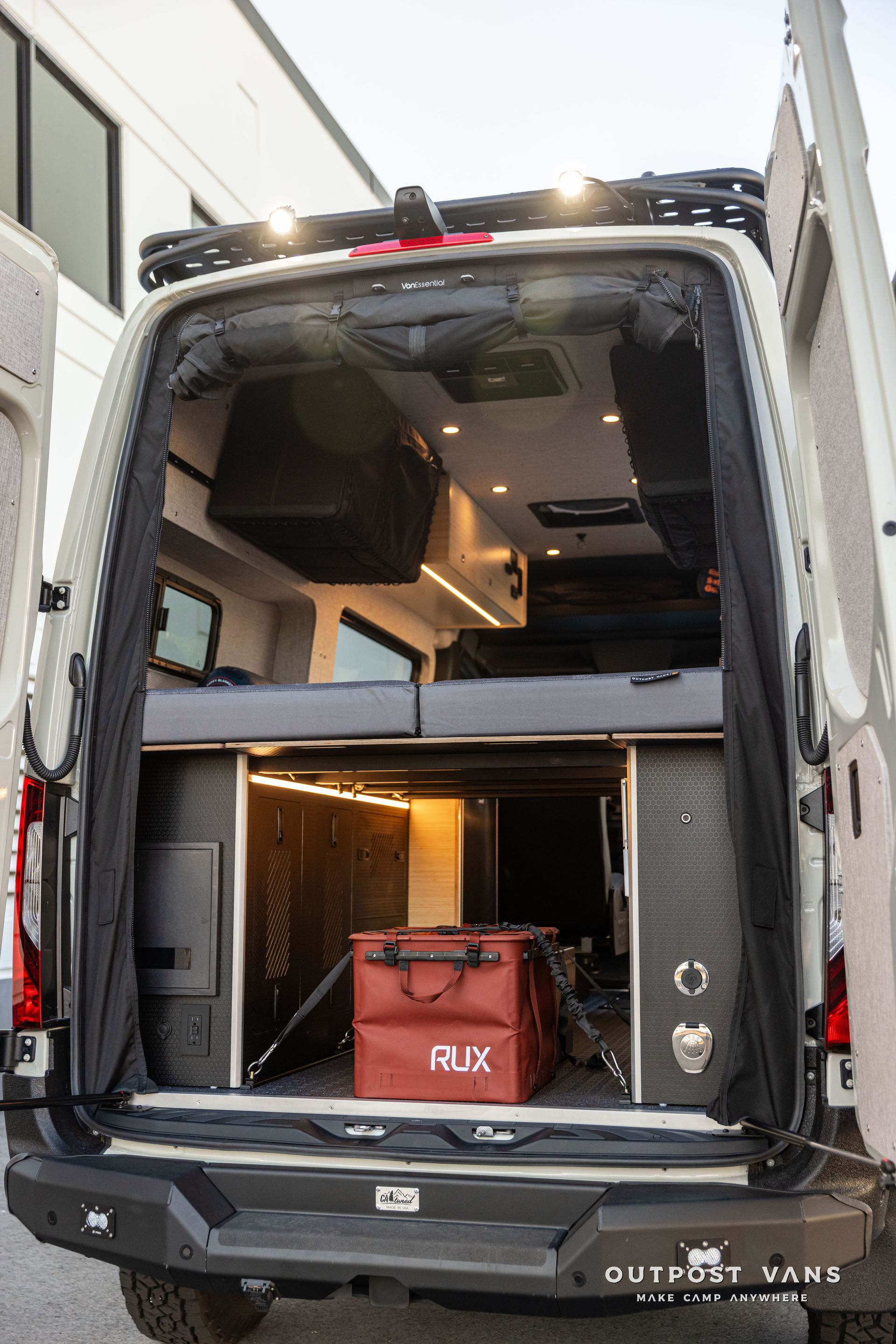

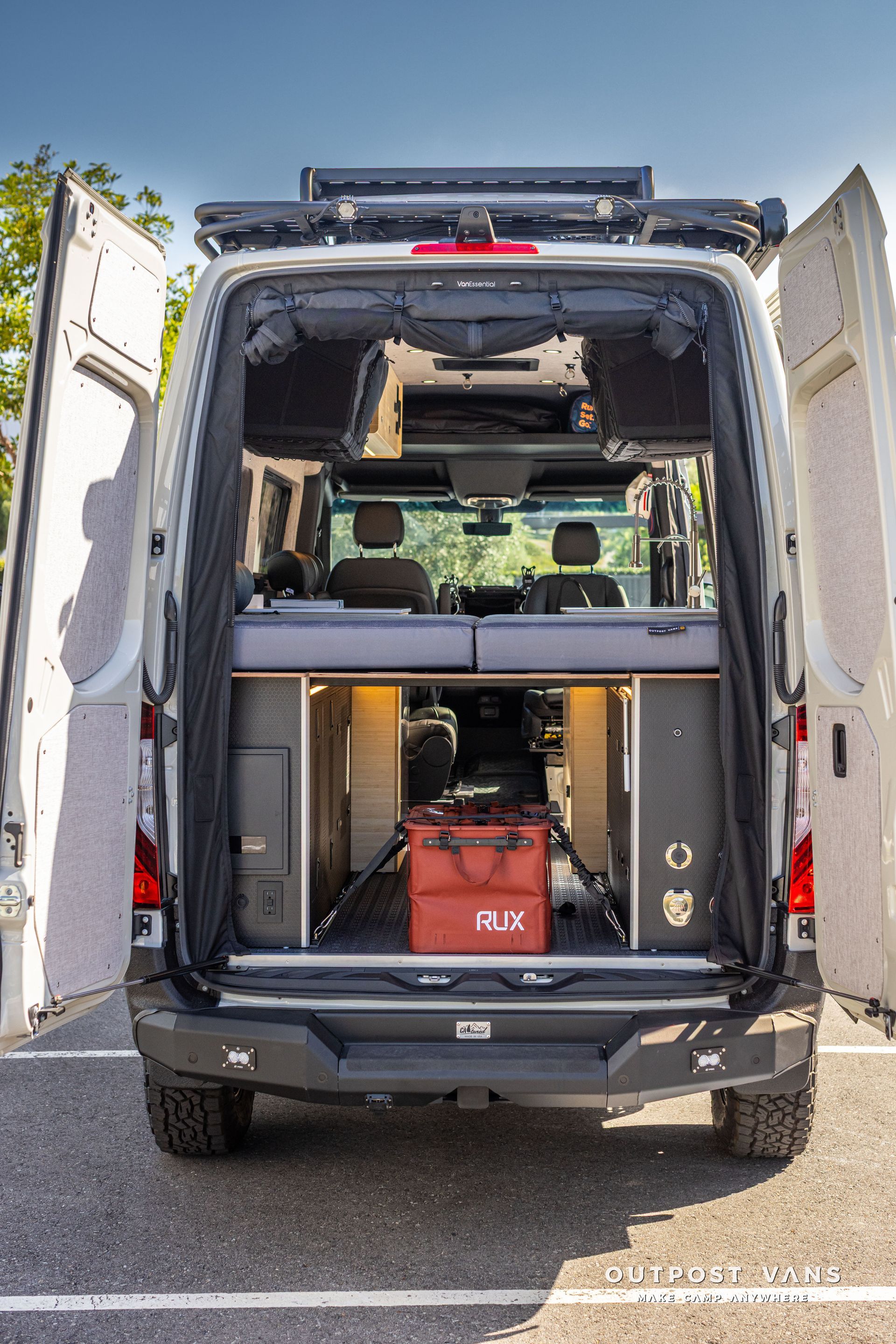

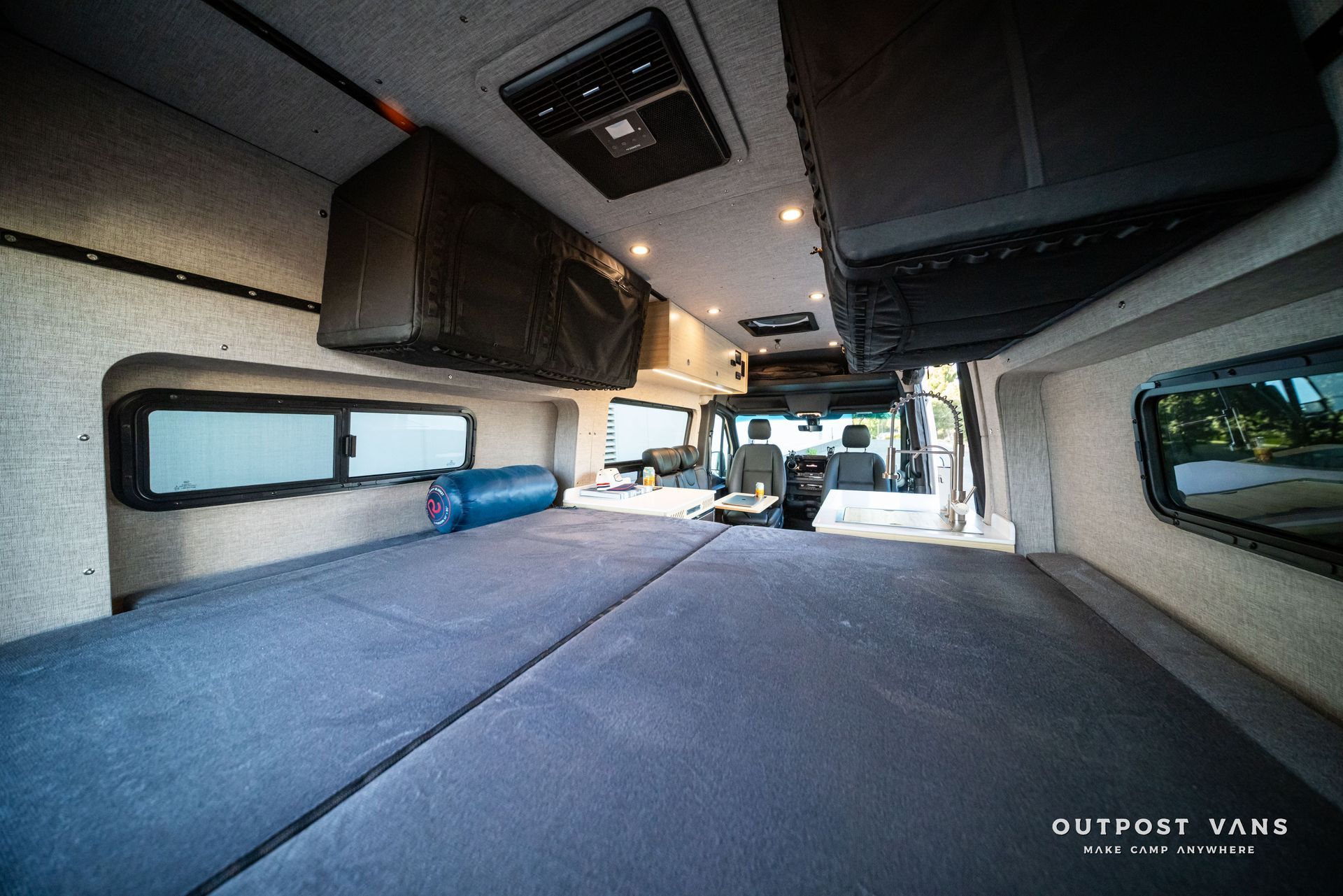

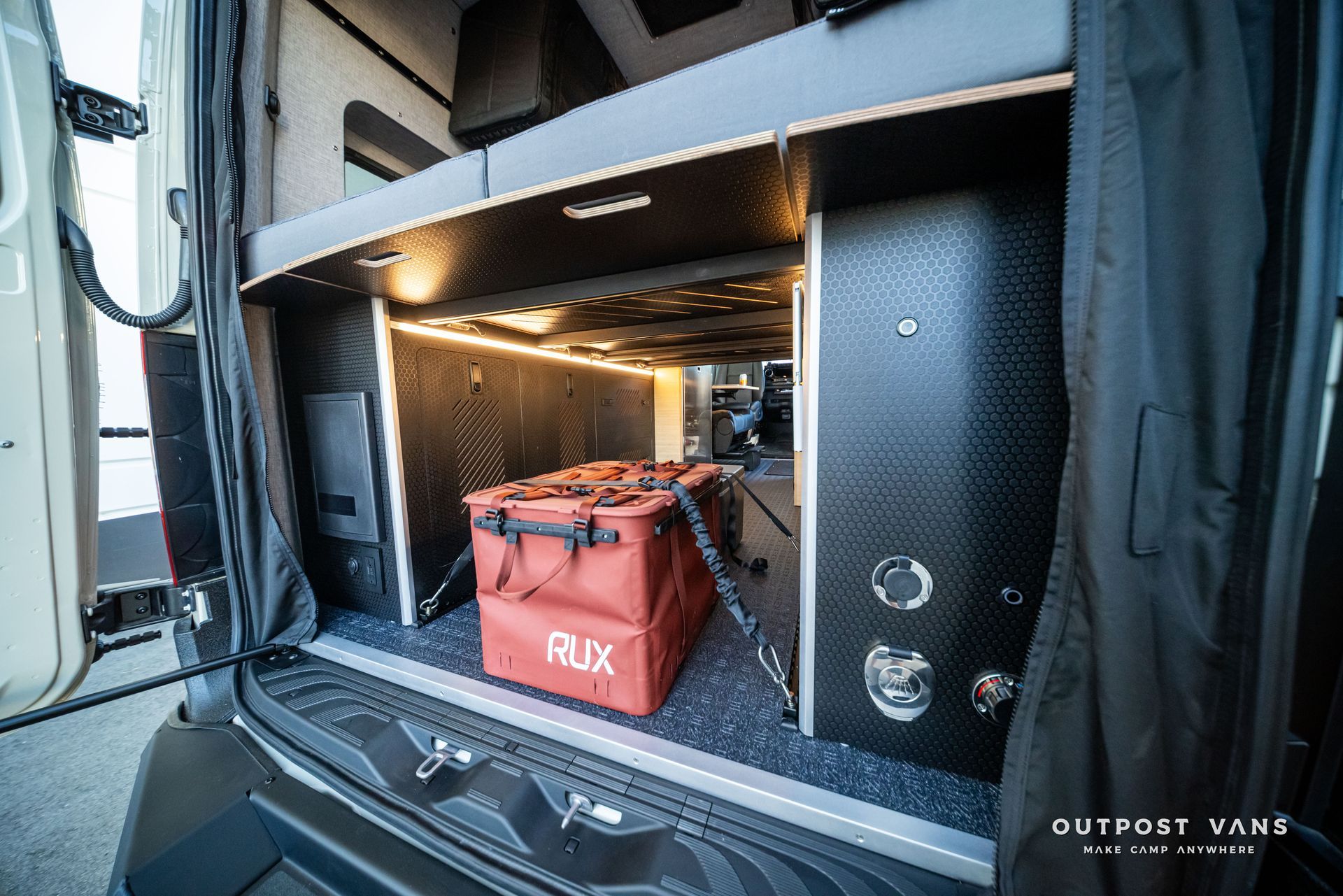

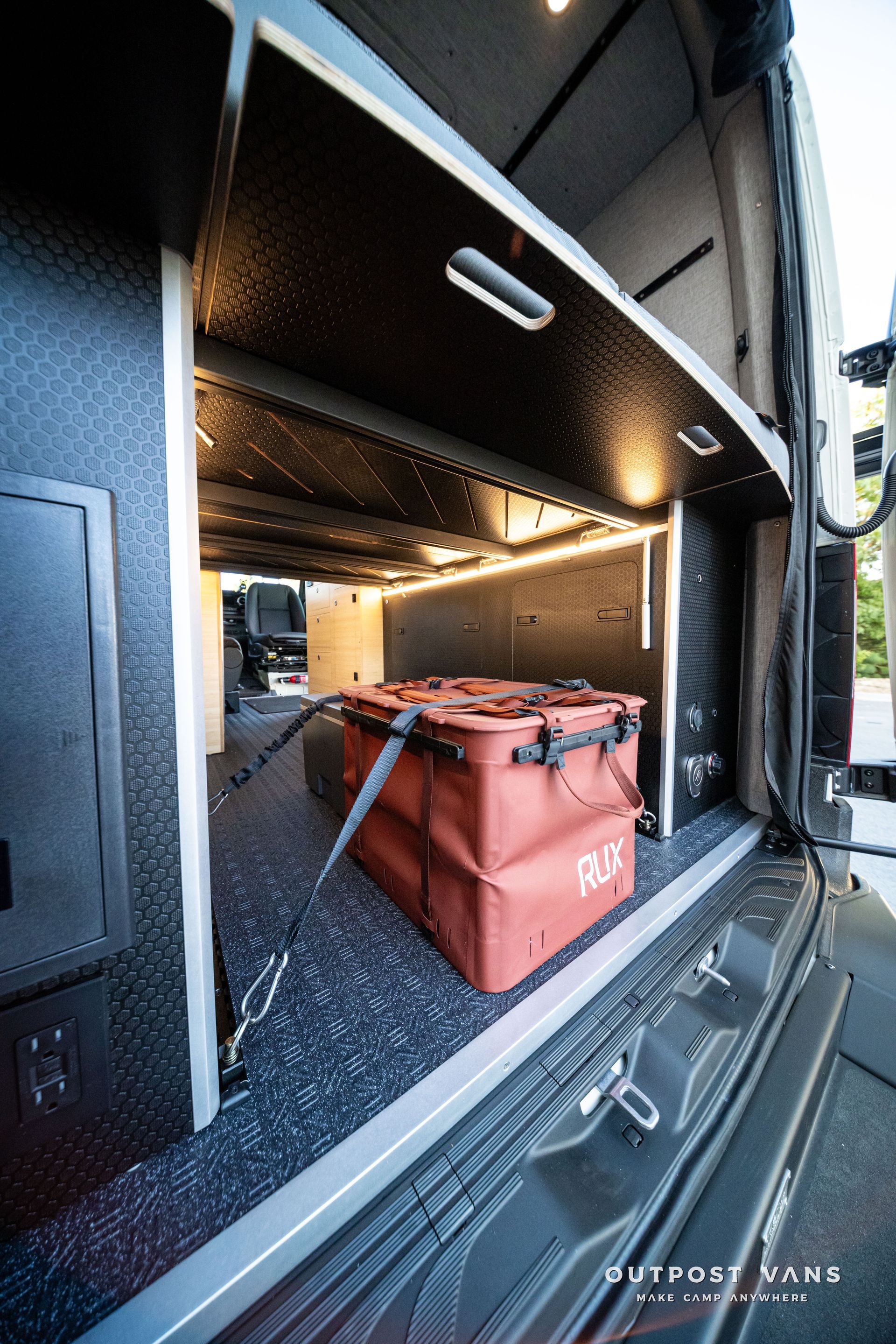

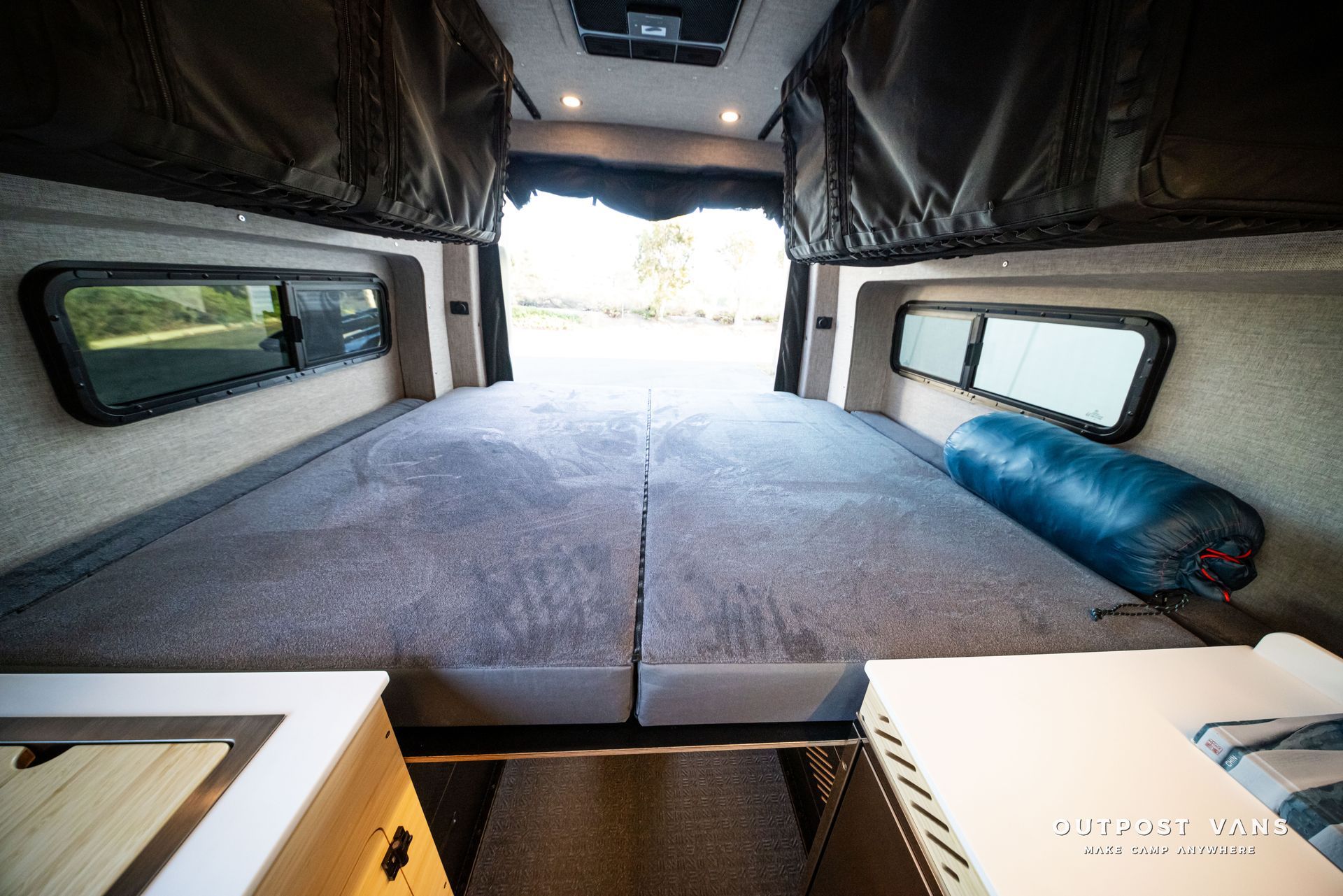

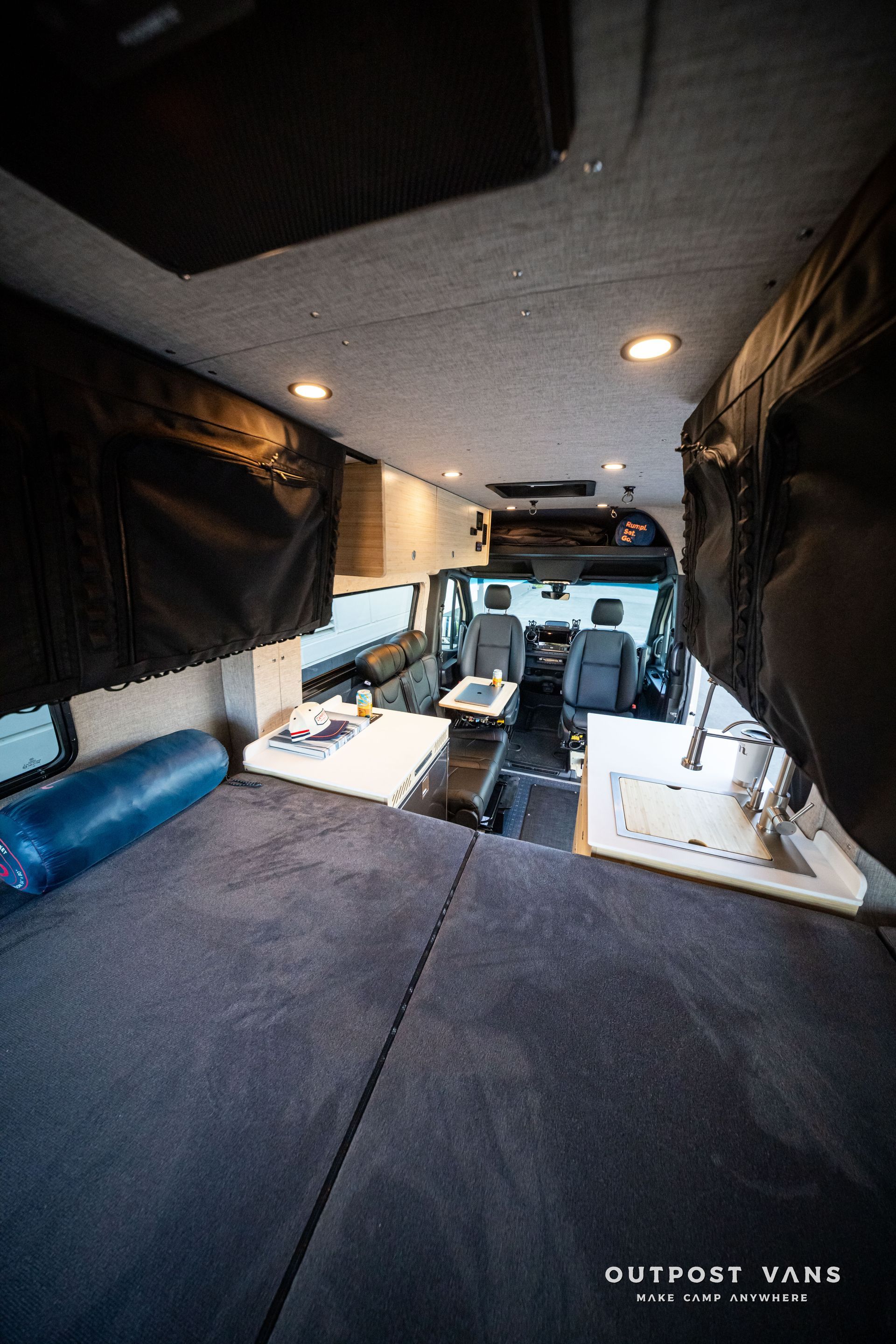

At the rear, a fixed bed with soft upper cabinets overhead sits over a 30" garage. The garage has L-track tie-downs and organized utility cabinets for the electrical and plumbing systems. Power comes from a 640Ah lithium battery and a Victron 3000W inverter/charger, monitored through a touch display. Charging comes from solar, shore power, and a 280A second alternator with high-idle control. A Dometic 12V AC, a Maxxair fan, and an Espar diesel heater with high-altitude kit keep it comfortable.
